Infineon, Type N-Channel IGBT, 35 A 1200 V, 23-Pin Module, Chassis

View all IGBTs

Subtotal (1 tray of 10 units)*

£483.89

(exc. VAT)

£580.67

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 10 unit(s), ready to ship
Units
Per unit
Per Tray*
10 +£48.389£483.89

*price indicative

RS Stock No.:
232-6706
Mfr. Part No.:
FP35R12N2T7B11BPSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

IGBT

Maximum Continuous Collector Current Ic

35A

Maximum Collector Emitter Voltage Vceo

1200V

Maximum Power Dissipation Pd

20mW

Number of Transistors

7

Package Type

Module

Mount Type

Chassis

Channel Type

Type N

Pin Count

23

Maximum Gate Emitter Voltage VGEO

20 V

Maximum Collector Emitter Saturation Voltage VceSAT

1.6V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

175°C

Series

FP35R12N2T7_B11

Standards/Approvals

No

Height

21.3mm

Width

45 mm

Length

107.5mm

Automotive Standard

No

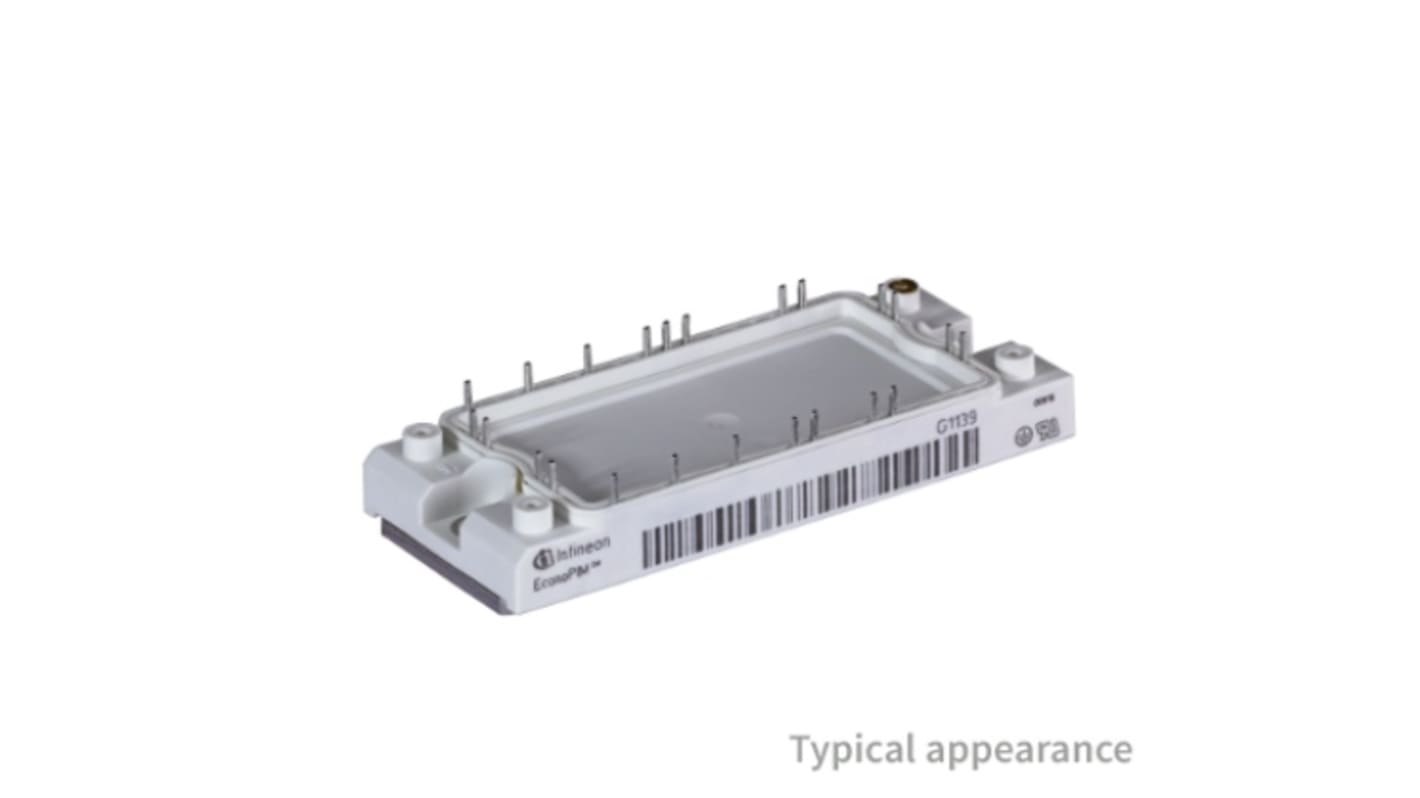

The Infineon's EconoPIM 2, 35 A three phase PIM IGBT module comes with TRENCHSTOP IGBT7, Emitter Controlled 7 diode, NTC and PressFIT contact technology. The PIM (Power Integrated Modules) with integration of rectifier and brake chopper enables system cost savings. Potential applications include auxiliary inverters, motor drives and servo drives.

RoHS-compliant modules

Copper base plate for optimized heat spread

High power density
