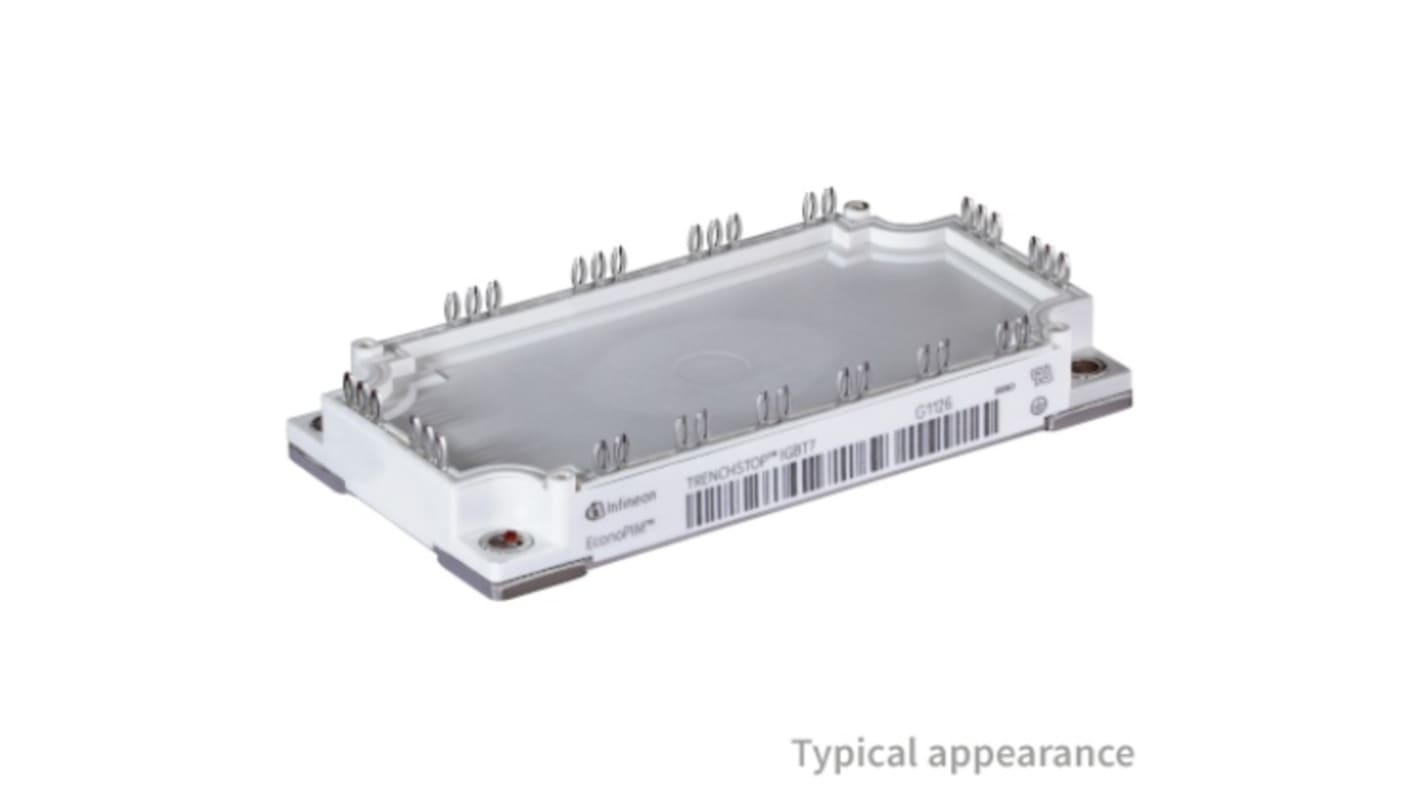

Infineon, Type N-Channel IGBT, 150 A 1200 V, 43-Pin Module, Chassis

View all IGBTs

Subtotal (1 tray of 10 units)*

£959.52

(exc. VAT)

£1,151.42

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 10 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
10 +£95.952£959.52

*price indicative

RS Stock No.:
232-6702
Mfr. Part No.:
FP150R12N3T7BPSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

IGBT

Maximum Continuous Collector Current Ic

150A

Maximum Collector Emitter Voltage Vceo

1200V

Number of Transistors

7

Maximum Power Dissipation Pd

20mW

Package Type

Module

Mount Type

Chassis

Channel Type

Type N

Pin Count

43

Maximum Collector Emitter Saturation Voltage VceSAT

1.55V

Maximum Gate Emitter Voltage VGEO

20 V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

175°C

Width

62 mm

Length

122mm

Height

20.5mm

Series

FP150R12N3T7

Standards/Approvals

No

Automotive Standard

No

The Infineon's EconoPIM 3, 150 A three phase PIM IGBT module comes with TRENCHSTOP IGBT7, Emitter Controlled 7 diode and NTC. The PIM (Power Integrated Modules) with integration of rectifier and brake chopper enables system cost savings. Potential applications include auxiliary inverters, motor drives and servo drives.

RoHS-compliant modules

Copper base plate for optimized heat spread

High power density
