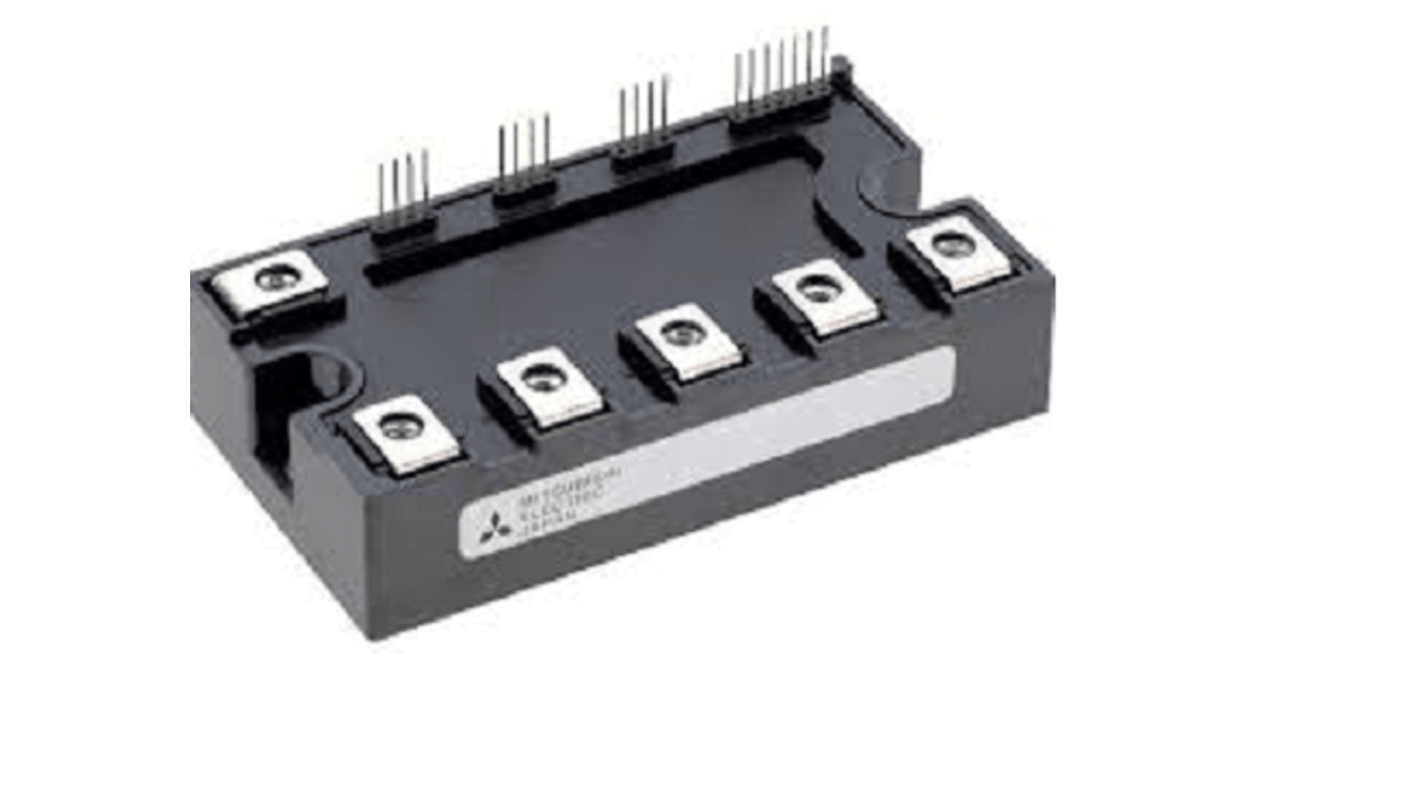

Mitsubishi Electric, Type N-Channel IGBT Module, 50 A 1200 V Module, Surface

View all IGBTs
Bulk discount available

Subtotal (1 unit)*

£217.14

(exc. VAT)

£260.57

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 16 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£217.14
5 +£193.04

*price indicative

RS Stock No.:
207-4978
Mfr. Part No.:
PM50CG1B120#300G
Brand:
Mitsubishi Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Mitsubishi Electric

Product Type

IGBT Module

Maximum Continuous Collector Current Ic

50A

Maximum Collector Emitter Voltage Vceo

1200V

Maximum Power Dissipation Pd

378W

Package Type

Module

Mount Type

Surface

Channel Type

Type N

Minimum Operating Temperature

-40°C

Maximum Collector Emitter Saturation Voltage VceSAT

1.75V

Maximum Operating Temperature

150°C

Standards/Approvals

No

Automotive Standard

No

The Mitsubishi Electric 1200V intelligent module power has high performance and high reliability IGBT with six driver per module. It has 50 A of maximum continuous collector current and in this error output signal is available from each protection upper and lower arm of IPM.

Adopting full-gate CSTBT chip

Outputting an error signal corresponding to the abnormal state
