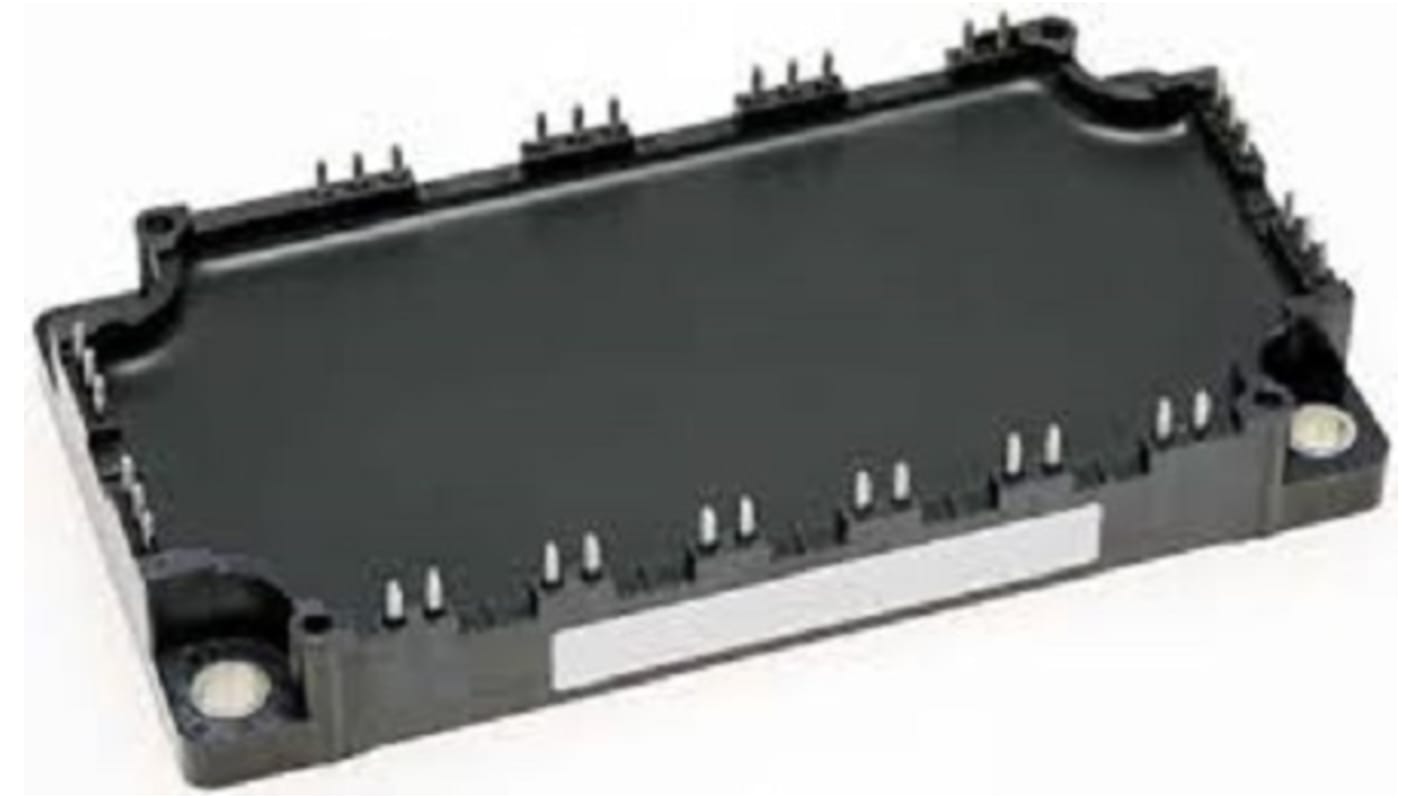

Mitsubishi Electric CM100TX-24T #300G 3 Phase Bridge IGBT Module, 100 1200 V Module, PCB Mount

View all IGBTs
Bulk discount available

Subtotal (1 box of 9 units)*

£1,225.737

(exc. VAT)

£1,470.888

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,999 unit(s) shipping from 23 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
9 - 9£136.193£1,225.74
18 - 18£122.574£1,103.17
27 - 99£111.406£1,002.65
108 +£102.146£919.31

*price indicative

RS Stock No.:
207-4957
Mfr. Part No.:
CM100TX-24T #300G
Brand:
Mitsubishi Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Mitsubishi Electric

Maximum Continuous Collector Current

100

Maximum Collector Emitter Voltage

1200 V

Maximum Gate Emitter Voltage

20V

Number of Transistors

6

Package Type

Module

Configuration

3 Phase Bridge

Mounting Type

PCB Mount

Channel Type

N

Transistor Configuration

3 Phase

The Mitsubishi Electric 1200V IGBT module has flat base and six driver per module with break IGBT. It has 100A of continuous collector current and it is suitable for hard switching and soft switching application such as inverter, motor control and industrial drives.

Tin plating pin terminal
Used copper base plate
Maximum junction temperature 175°C
