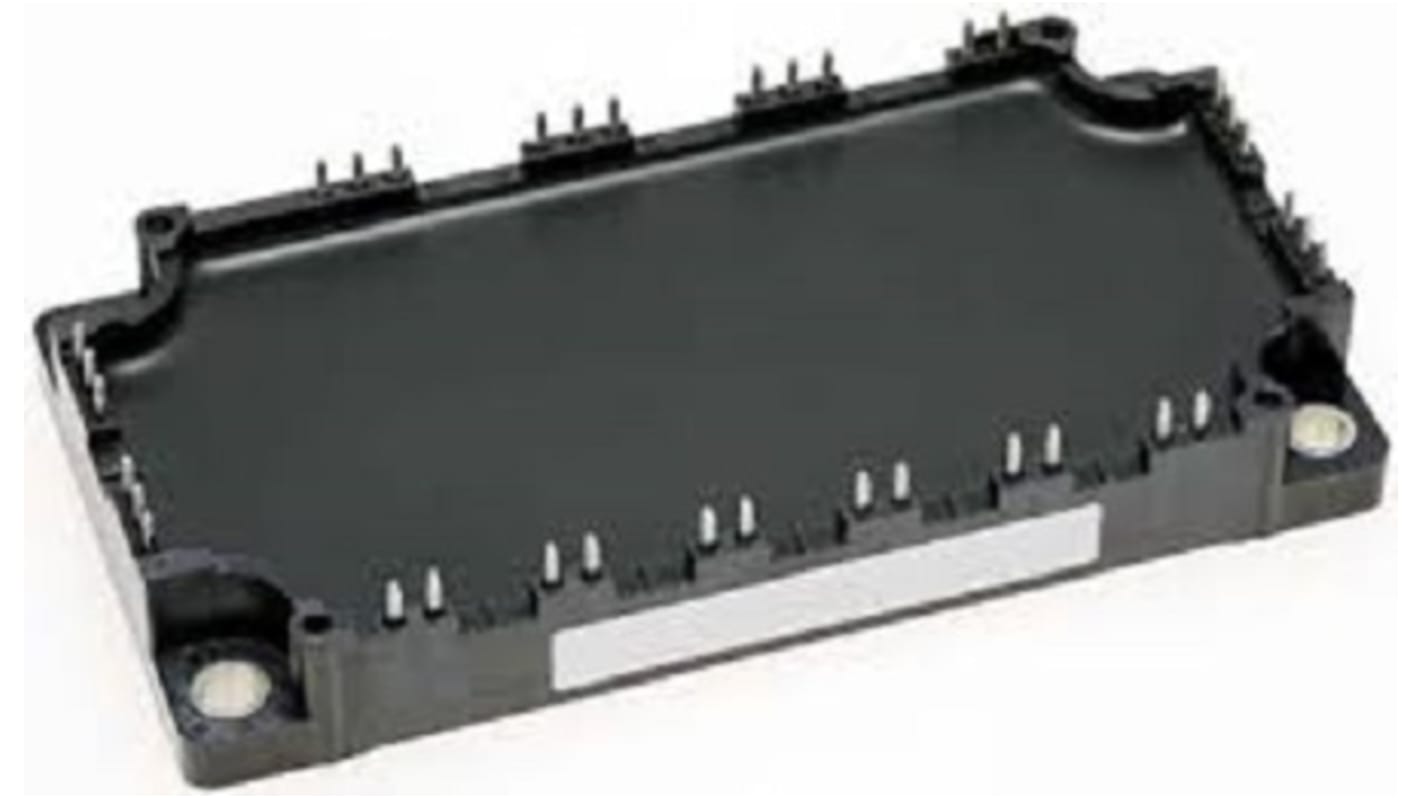

Mitsubishi Electric, Type N-Channel IGBT Module, 100 A 1200 V Module, PCB
- RS Stock No.:
- 207-4958
- Mfr. Part No.:
- CM100TX-24T #300G
- Brand:
- Mitsubishi Electric
Subtotal (1 unit)*
£170.06
(exc. VAT)
£204.07
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £170.06 |
*price indicative
- RS Stock No.:
- 207-4958
- Mfr. Part No.:
- CM100TX-24T #300G
- Brand:
- Mitsubishi Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Mitsubishi Electric | |
| Maximum Continuous Collector Current Ic | 100A | |
| Product Type | IGBT Module | |
| Maximum Collector Emitter Voltage Vceo | 1200V | |
| Maximum Power Dissipation Pd | 565W | |
| Package Type | Module | |
| Mount Type | PCB | |
| Channel Type | Type N | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.95V | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Series | CM100TX-24T | |
| Standards/Approvals | RoHS | |
| Length | 122mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Mitsubishi Electric | ||
Maximum Continuous Collector Current Ic 100A | ||
Product Type IGBT Module | ||
Maximum Collector Emitter Voltage Vceo 1200V | ||
Maximum Power Dissipation Pd 565W | ||
Package Type Module | ||
Mount Type PCB | ||
Channel Type Type N | ||
Maximum Collector Emitter Saturation Voltage VceSAT 1.95V | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Series CM100TX-24T | ||
Standards/Approvals RoHS | ||
Length 122mm | ||
Automotive Standard No | ||
The Mitsubishi Electric 1200V IGBT module has flat base and six driver per module with break IGBT. It has 100A of continuous collector current and it is suitable for hard switching and soft switching application such as inverter, motor control and industrial drives.
Tin plating pin terminal
Used copper base plate
Maximum junction temperature 175°C
