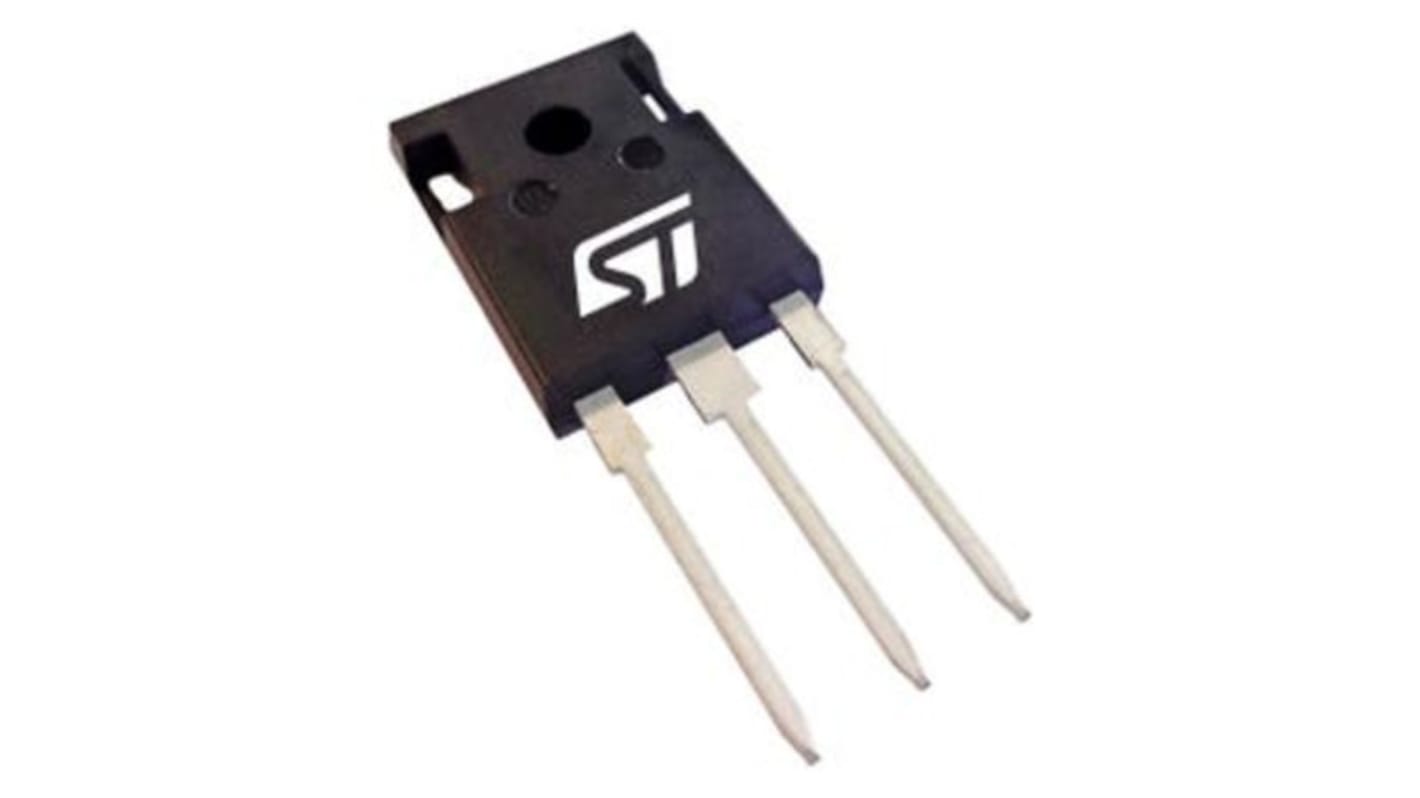

STMicroelectronics STGWA100H65DFB2 IGBT, 145 A 650 V, 3-Pin TO-247
- RS Stock No.:
- 206-7208
- Mfr. Part No.:
- STGWA100H65DFB2
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 pack of 2 units)*
£11.74
(exc. VAT)
£14.08
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,998 unit(s) shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 - 8 | £5.87 | £11.74 |
10 + | £4.98 | £9.96 |
*price indicative
- RS Stock No.:
- 206-7208
- Mfr. Part No.:
- STGWA100H65DFB2
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Maximum Continuous Collector Current | 145 A | |
Maximum Collector Emitter Voltage | 650 V | |
Maximum Gate Emitter Voltage | ±20V | |
Number of Transistors | 1 | |
Maximum Power Dissipation | 441 W | |
Package Type | TO-247 | |
Pin Count | 3 | |
Transistor Configuration | Single | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Maximum Continuous Collector Current 145 A | ||
Maximum Collector Emitter Voltage 650 V | ||
Maximum Gate Emitter Voltage ±20V | ||
Number of Transistors 1 | ||
Maximum Power Dissipation 441 W | ||
Package Type TO-247 | ||
Pin Count 3 | ||
Transistor Configuration Single | ||
The STMicroelectronics Trench gate field-stop, 650 V, 100 A, high-speed HB2 series IGBT in a TO-247 long leads package.
Maximum junction temperature: TJ = 175 °C
Low VCE(sat) = 1.55 V(typ.) @ IC = 100 A
Very fast and soft recovery co-packaged diode
Minimized tail current
Tight parameter distribution
Low thermal resistance
Positive VCE(sat) temperature coefficient
Low VCE(sat) = 1.55 V(typ.) @ IC = 100 A
Very fast and soft recovery co-packaged diode
Minimized tail current
Tight parameter distribution
Low thermal resistance
Positive VCE(sat) temperature coefficient
