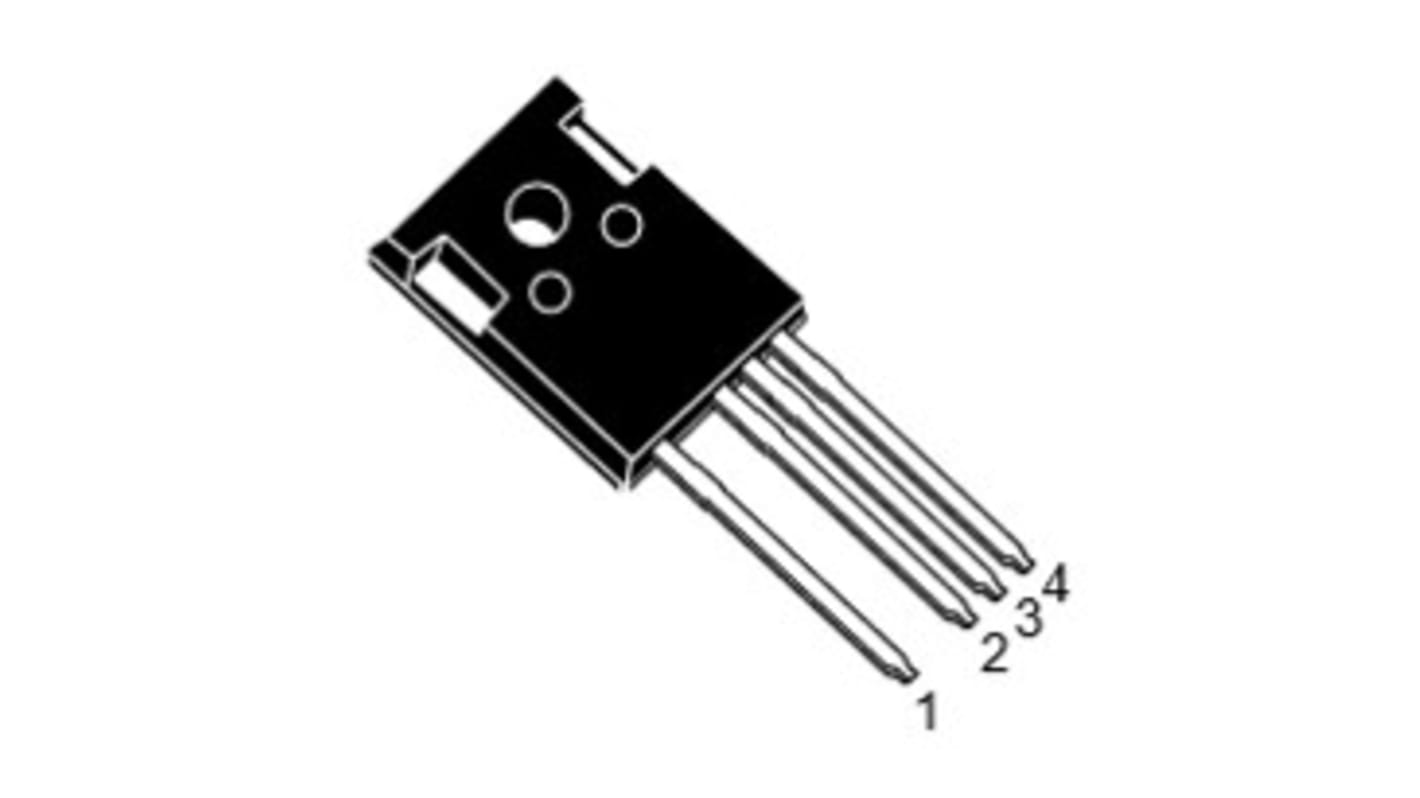

STMicroelectronics STGW75H65DFB2-4 IGBT, 115 A 650 V, 4-Pin TO-247

View all IGBTs
Save 5% when you buy 60 units

Subtotal (1 tube of 30 units)*

£140.34

(exc. VAT)

£168.42

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 60 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
30 - 30£4.678£140.34
60 +£4.444£133.32

*price indicative

RS Stock No.:
206-6063
Mfr. Part No.:
STGW75H65DFB2-4
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Maximum Continuous Collector Current

115 A

Maximum Collector Emitter Voltage

650 V

Maximum Gate Emitter Voltage

±20V

Maximum Power Dissipation

357 W

Number of Transistors

1

Package Type

TO-247

Pin Count

4

The STMicroelectronics IGBT 650 V HB2 series represents an evolution of the advanced proprietary trench gate field-stop structure. The performance of the HB2 series is optimized in terms of conduction, thanks to a better VCE(sat) behaviour at low current values, as well as in terms of reduced switching energy.

Maximum junction temperature: TJ = 175 °C
Low VCE(sat) = 1.55 V(typ.) @ IC = 75 A
Very fast and soft recovery co-packaged diode
Minimized tail current
Tight parameter distribution
Low thermal resistance
Positive VCE(sat) temperature coefficient
Excellent switching performance thanks to the extra driving kelvin pin
