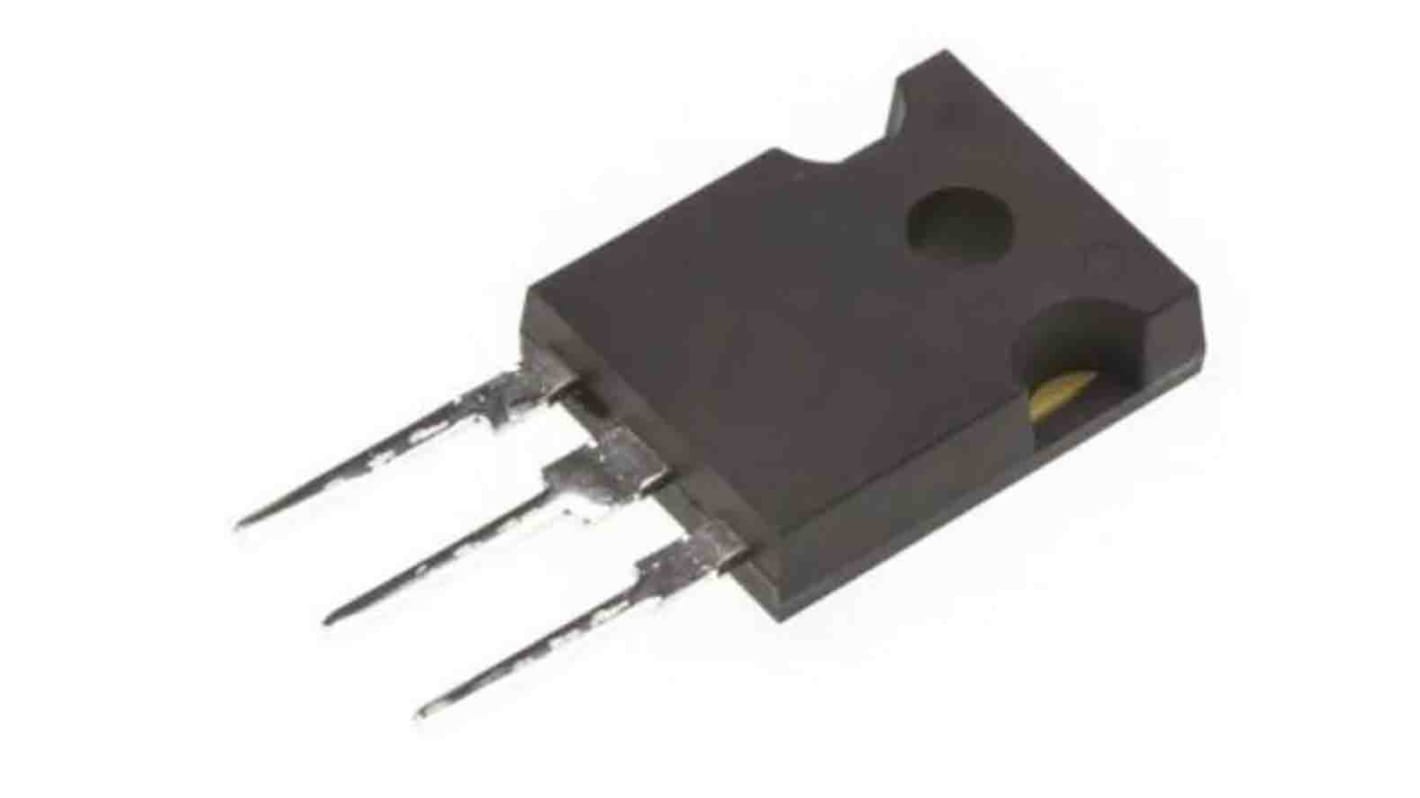

onsemi FGHL50T65SQDT IGBT, 100 A 650 V, 3-Pin TO-247
- RS Stock No.:
- 202-5677
- Mfr. Part No.:
- FGHL50T65SQDT
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 10 units)*
£41.51
(exc. VAT)
£49.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 270 unit(s) ready to ship
- Plus 999,999,720 unit(s) shipping from 07 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 90 | £4.151 | £41.51 |
100 - 240 | £3.578 | £35.78 |
250 + | £3.102 | £31.02 |
*price indicative
- RS Stock No.:
- 202-5677
- Mfr. Part No.:
- FGHL50T65SQDT
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Maximum Continuous Collector Current | 100 A | |
Maximum Collector Emitter Voltage | 650 V | |
Maximum Gate Emitter Voltage | ±30.0V | |
Maximum Power Dissipation | 134 W | |
Number of Transistors | 1 | |
Package Type | TO-247 | |
Channel Type | N | |
Pin Count | 3 | |
Transistor Configuration | Single | |
Select all | ||
---|---|---|
Brand onsemi | ||
Maximum Continuous Collector Current 100 A | ||
Maximum Collector Emitter Voltage 650 V | ||
Maximum Gate Emitter Voltage ±30.0V | ||
Maximum Power Dissipation 134 W | ||
Number of Transistors 1 | ||
Package Type TO-247 | ||
Channel Type N | ||
Pin Count 3 | ||
Transistor Configuration Single | ||
The ON Semiconductor IGBTs offer the optimum performance for solar inverter, UPS, welder, telecom, ESS and PFC applications where low conduction and switching losses are essential.
175°C maximum junction temperature
High current capability
High input impedance
Fast switching
Tighten parameter distribution
Pb free and is RoHS compliant
High current capability
High input impedance
Fast switching
Tighten parameter distribution
Pb free and is RoHS compliant
