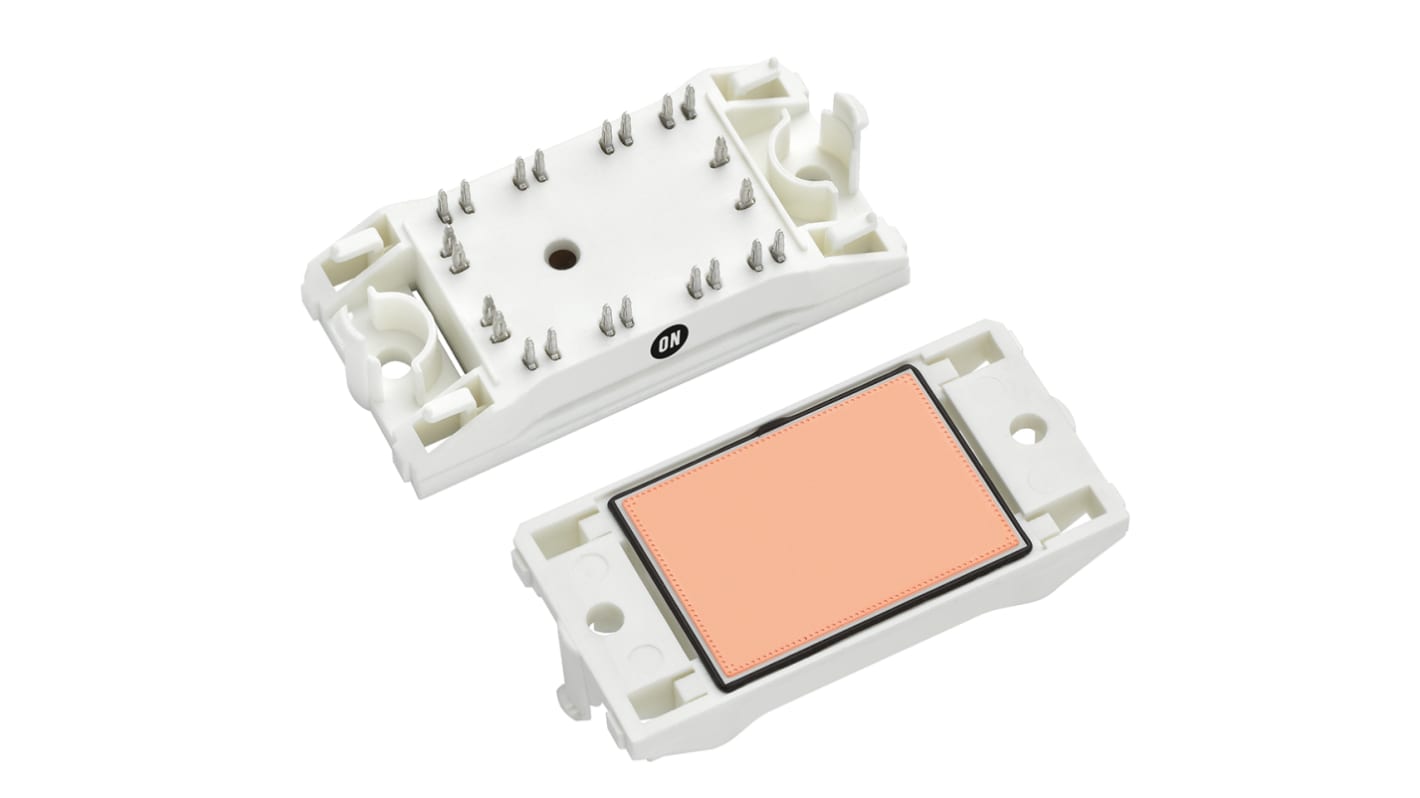

onsemi, Type N-Channel Q1 3-Phase TNPC Module, 42 A 1200 V, 44-Pin Q13-TNPC, Clamp
- RS Stock No.:
- 195-8774
- Mfr. Part No.:
- NXH40T120L3Q1SG
- Brand:
- onsemi
Subtotal (1 tray of 21 units)*
£1,388.31
(exc. VAT)
£1,665.93
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 27 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 21 + | £66.11 | £1,388.31 |
*price indicative
- RS Stock No.:
- 195-8774
- Mfr. Part No.:
- NXH40T120L3Q1SG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Maximum Continuous Collector Current Ic | 42A | |
| Product Type | Q1 3-Phase TNPC Module | |
| Maximum Collector Emitter Voltage Vceo | 1200V | |
| Maximum Power Dissipation Pd | 146W | |
| Package Type | Q13-TNPC | |
| Mount Type | Clamp | |
| Channel Type | Type N | |
| Pin Count | 44 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.65V | |
| Maximum Gate Emitter Voltage VGEO | ±20 V | |
| Maximum Operating Temperature | 175°C | |
| Series | TNPC | |
| Length | 83mm | |
| Standards/Approvals | Pb-Free and is RoHS | |
| Height | 12.5mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Maximum Continuous Collector Current Ic 42A | ||
Product Type Q1 3-Phase TNPC Module | ||
Maximum Collector Emitter Voltage Vceo 1200V | ||
Maximum Power Dissipation Pd 146W | ||
Package Type Q13-TNPC | ||
Mount Type Clamp | ||
Channel Type Type N | ||
Pin Count 44 | ||
Minimum Operating Temperature -40°C | ||
Maximum Collector Emitter Saturation Voltage VceSAT 1.65V | ||
Maximum Gate Emitter Voltage VGEO ±20 V | ||
Maximum Operating Temperature 175°C | ||
Series TNPC | ||
Length 83mm | ||
Standards/Approvals Pb-Free and is RoHS | ||
Height 12.5mm | ||
Automotive Standard No | ||
The NXH40T120L3Q1PG/SG is a case power module containing a three channel T-type neutral-point clamped (TNPC) circuit. Each channel has a two 1200 V, 40 A IGBTs with inverse diodes and two 650 V, 25 A IGBTs with inverse diodes. The module contains an NTC thermistor
Fast switching 1200V and 650V IGBTs with low VCESAT
Improved efficiency over alternative solutions
Options with press-fit pins and solder pins
Wider choices for module mounting process
Applications
DC-AC Conversion
