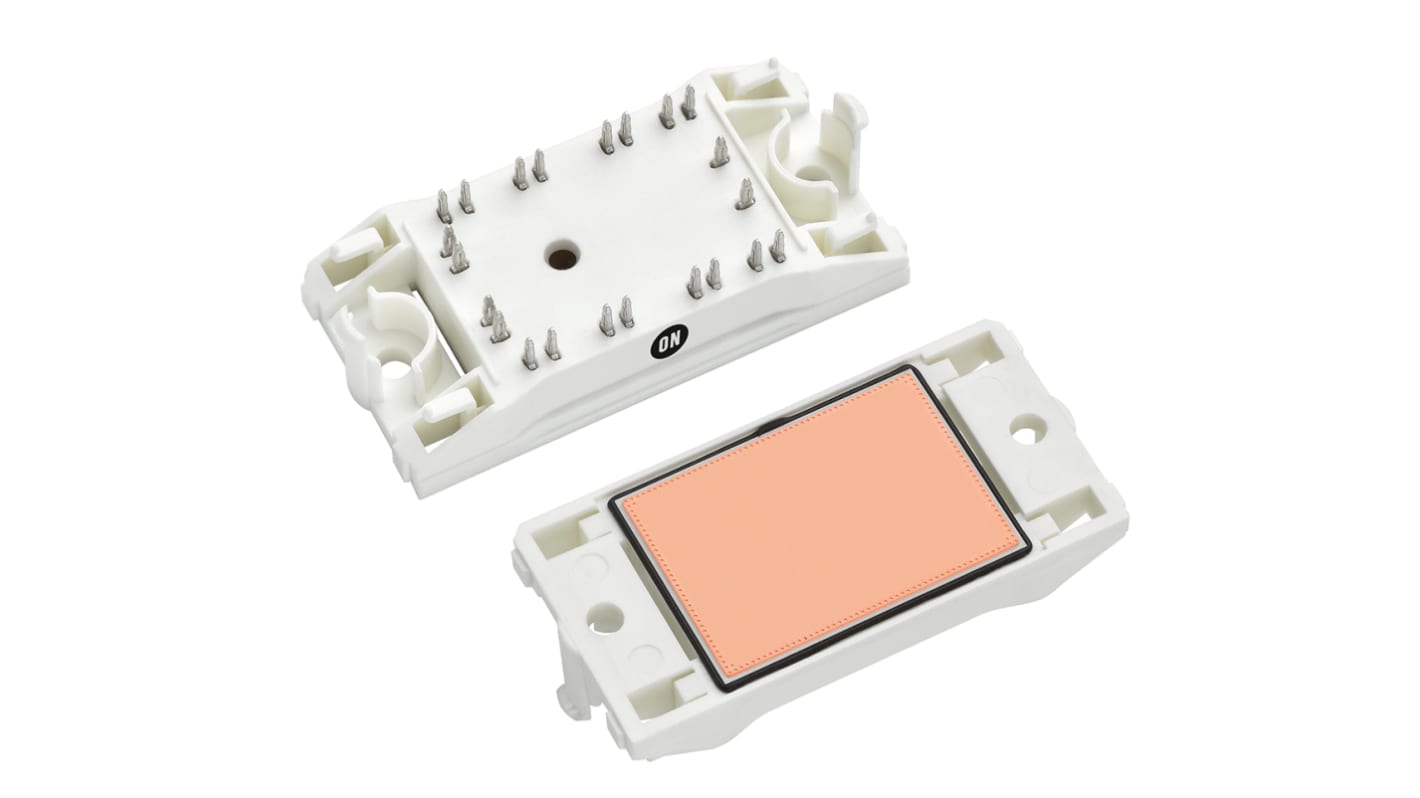

onsemi NXH100B120H3Q0PTG Dual IGBT Module 1200 V, 22-Pin Q0BOOST, Surface Mount
- RS Stock No.:
- 195-8768
- Mfr. Part No.:
- NXH100B120H3Q0PTG
- Brand:
- onsemi
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 195-8768
- Mfr. Part No.:
- NXH100B120H3Q0PTG
- Brand:
- onsemi
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Maximum Collector Emitter Voltage | 1200 V | |
| Maximum Gate Emitter Voltage | ±20V | |
| Maximum Power Dissipation | 186 W | |
| Configuration | Dual | |
| Package Type | Q0BOOST | |
| Mounting Type | Surface Mount | |
| Channel Type | N | |
| Pin Count | 22 | |
| Transistor Configuration | Dual | |
| Dimensions | 66.2 x 32.8 x 11.9mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +150 °C | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Maximum Collector Emitter Voltage 1200 V | ||
Maximum Gate Emitter Voltage ±20V | ||
Maximum Power Dissipation 186 W | ||
Configuration Dual | ||
Package Type Q0BOOST | ||
Mounting Type Surface Mount | ||
Channel Type N | ||
Pin Count 22 | ||
Transistor Configuration Dual | ||
Dimensions 66.2 x 32.8 x 11.9mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +150 °C | ||
