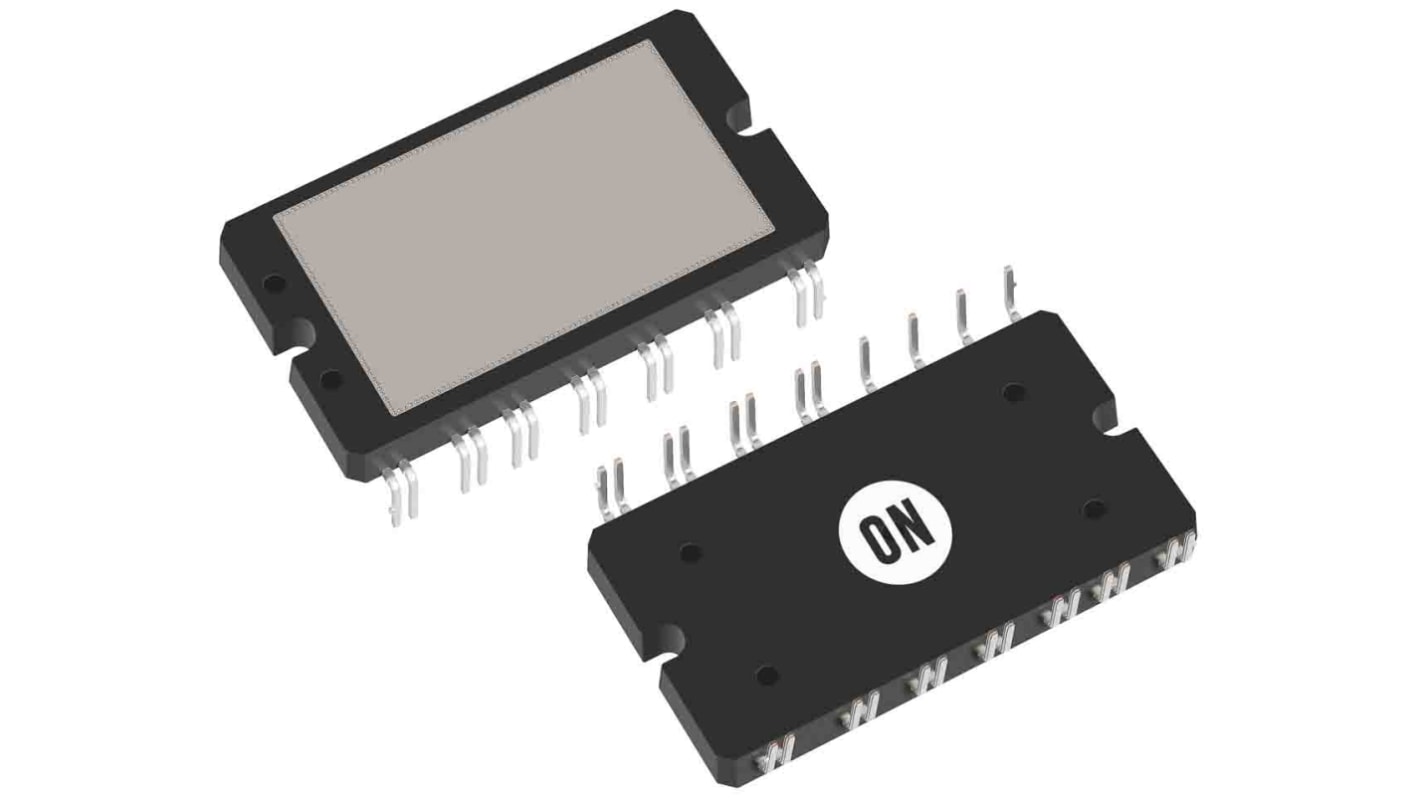

onsemi, Type N-Channel IGBT Module, 35 A 650 V, 26-Pin DIP-26, Through Hole
- RS Stock No.:
- 202-5682
- Mfr. Part No.:
- NXH35C120L2C2SG
- Brand:
- onsemi
Subtotal (1 unit)*
£70.71
(exc. VAT)
£84.85
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £70.71 |
*price indicative
- RS Stock No.:
- 202-5682
- Mfr. Part No.:
- NXH35C120L2C2SG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Maximum Continuous Collector Current Ic | 35A | |
| Product Type | IGBT Module | |
| Maximum Collector Emitter Voltage Vceo | 650V | |
| Maximum Power Dissipation Pd | 20mW | |
| Package Type | DIP-26 | |
| Mount Type | Through Hole | |
| Channel Type | Type N | |
| Pin Count | 26 | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.4V | |
| Maximum Gate Emitter Voltage VGEO | ±2 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Series | CIB | |
| Standards/Approvals | No | |
| Height | 8mm | |
| Length | 73mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Maximum Continuous Collector Current Ic 35A | ||
Product Type IGBT Module | ||
Maximum Collector Emitter Voltage Vceo 650V | ||
Maximum Power Dissipation Pd 20mW | ||
Package Type DIP-26 | ||
Mount Type Through Hole | ||
Channel Type Type N | ||
Pin Count 26 | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.4V | ||
Maximum Gate Emitter Voltage VGEO ±2 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Series CIB | ||
Standards/Approvals No | ||
Height 8mm | ||
Length 73mm | ||
Automotive Standard No | ||
The ON Semiconductor transfer molded power module containing a converter-inverter-brake circuit consisting of six 35 Ampere and 1600 Volts rectifiers, six 35 Ampere and 1200 Volts IGBTs with inverse diodes, one 35 Ampere and 1200 Volts brake IGBT with brake diode and an NTC thermistor.
Low thermal resistance
6mm clearance distance between pin to heatsink
Solderable pins
Thermistor
Pb free
Halogen free or BFR free
RoHS compliant
