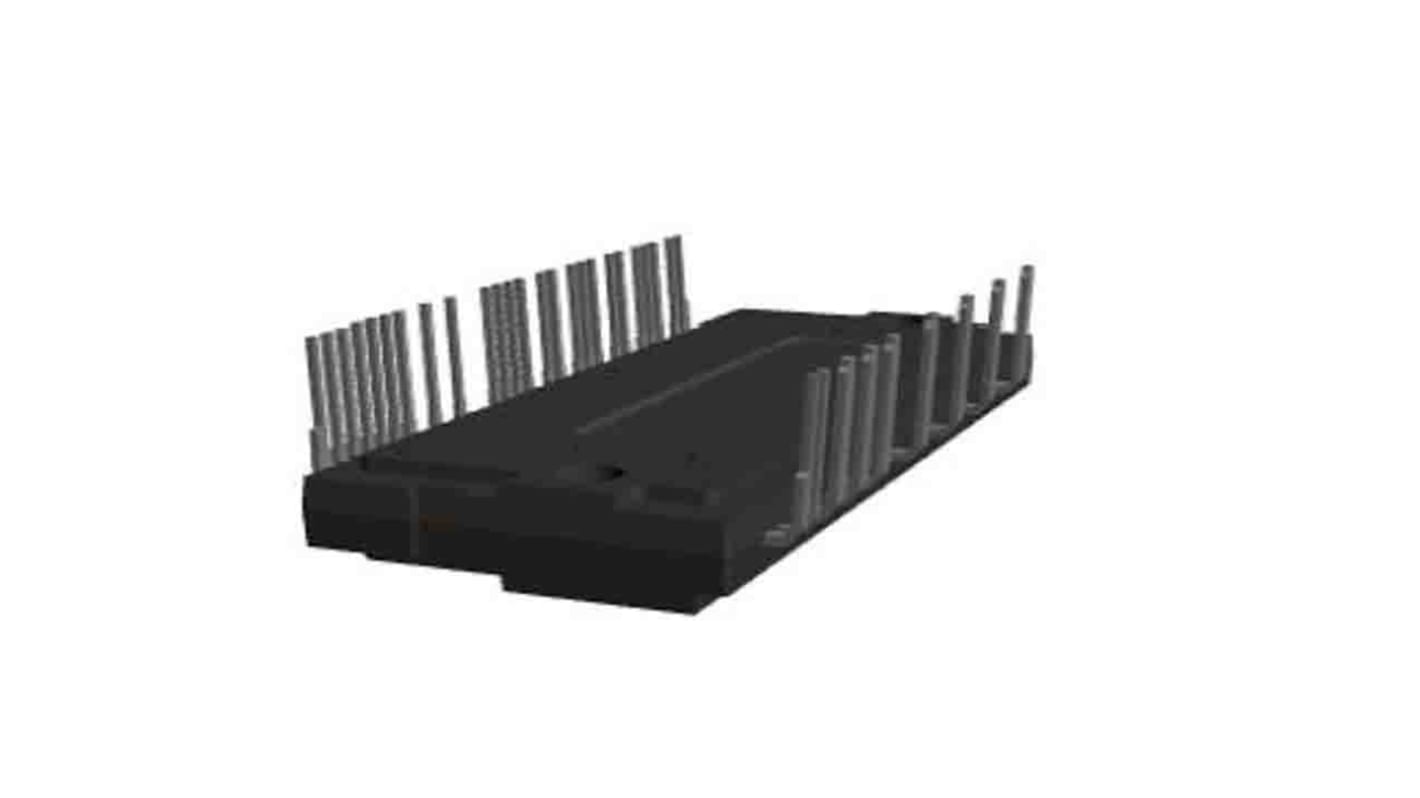

onsemi, Type N-Channel IGBT Module, 50 A 1200 V, 34-Pin DIP-38, Screw
- RS Stock No.:
- 202-7328
- Mfr. Part No.:
- NFVA25012NP2T
- Brand:
- onsemi
Subtotal (1 tube of 24 units)*
£1,348.32
(exc. VAT)
£1,618.08
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 96 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 24 + | £56.18 | £1,348.32 |
*price indicative
- RS Stock No.:
- 202-7328
- Mfr. Part No.:
- NFVA25012NP2T
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | IGBT Module | |
| Maximum Continuous Collector Current Ic | 50A | |
| Maximum Collector Emitter Voltage Vceo | 1200V | |
| Package Type | DIP-38 | |
| Mount Type | Screw | |
| Channel Type | Type N | |
| Pin Count | 34 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.95V | |
| Maximum Operating Temperature | 150°C | |
| Length | 80.3mm | |
| Standards/Approvals | RoHS | |
| Series | Automotive | |
| Width | 33.3 mm | |
| Height | 8.1mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type IGBT Module | ||
Maximum Continuous Collector Current Ic 50A | ||
Maximum Collector Emitter Voltage Vceo 1200V | ||
Package Type DIP-38 | ||
Mount Type Screw | ||
Channel Type Type N | ||
Pin Count 34 | ||
Minimum Operating Temperature -40°C | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.95V | ||
Maximum Operating Temperature 150°C | ||
Length 80.3mm | ||
Standards/Approvals RoHS | ||
Series Automotive | ||
Width 33.3 mm | ||
Height 8.1mm | ||
Automotive Standard AEC-Q101 | ||
The ON Semiconductor NFVA25012NP2T is an advanced Auto IPM module providing a fully-featured, high-performance inverter output stage for hybrid and electric vehicles.
Built-In NTC thermistor for temperature monitoring and management
Adjustable over-current protection via integrated sense-IGBTs
