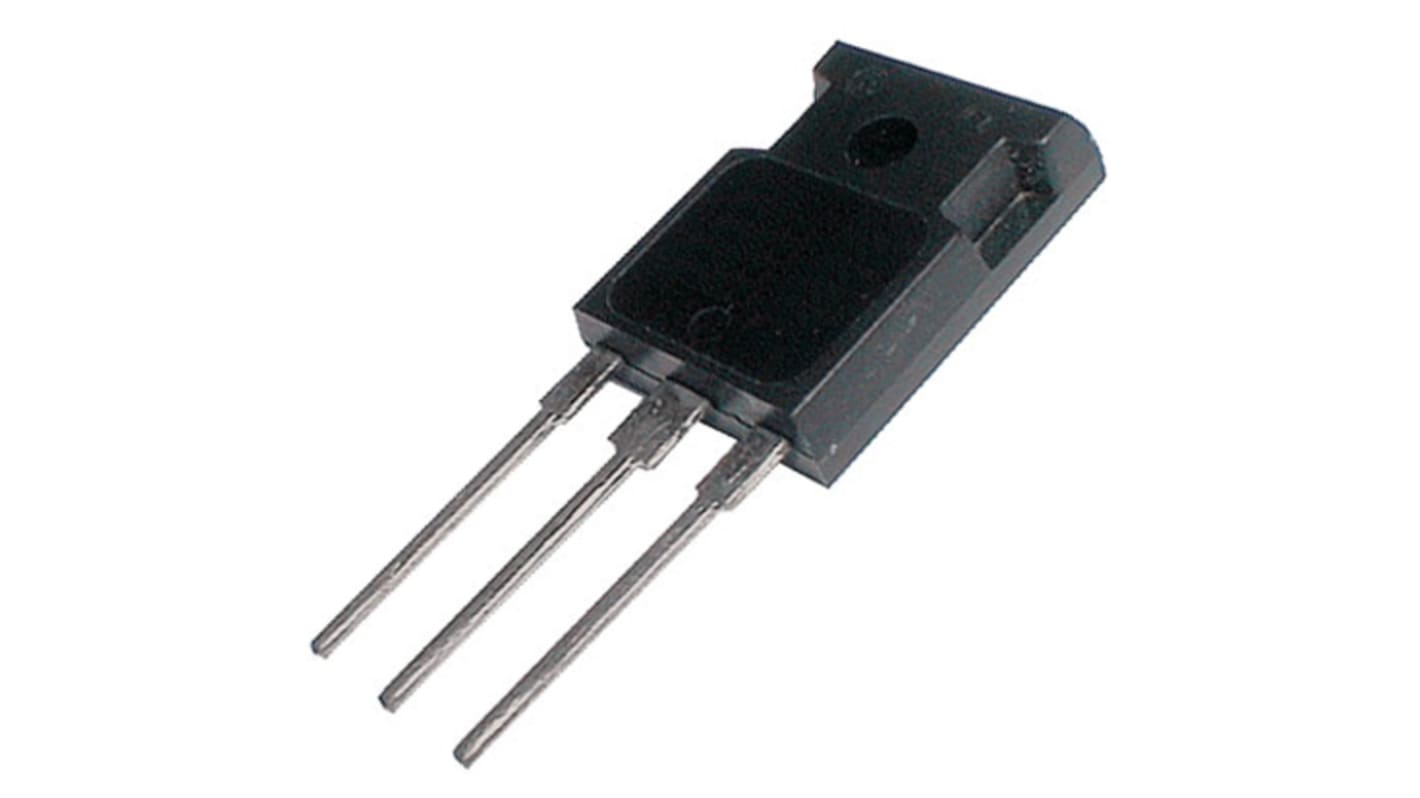

Infineon IKW30N65ES5XKSA1 IGBT, 62 A 650 V, 3-Pin TO-247, Through Hole
- RS Stock No.:
- 144-1201
- Mfr. Part No.:
- IKW30N65ES5XKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 10 units)*
£29.40
(exc. VAT)
£35.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 10 | £2.94 | £29.40 |
| 20 - 40 | £2.794 | £27.94 |
| 50 - 90 | £2.675 | £26.75 |
| 100 - 240 | £2.558 | £25.58 |
| 250 + | £2.381 | £23.81 |
*price indicative
- RS Stock No.:
- 144-1201
- Mfr. Part No.:
- IKW30N65ES5XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current | 62 A | |
| Maximum Collector Emitter Voltage | 650 V | |
| Maximum Gate Emitter Voltage | ±20 V, ±30V | |
| Number of Transistors | 1 | |
| Maximum Power Dissipation | 188 W | |
| Package Type | TO-247 | |
| Mounting Type | Through Hole | |
| Channel Type | N | |
| Pin Count | 3 | |
| Switching Speed | 30kHz | |
| Transistor Configuration | Single | |
| Dimensions | 16.13 x 5.21 x 21.1mm | |
| Minimum Operating Temperature | -40 °C | |
| Energy Rating | 0.88mJ | |
| Maximum Operating Temperature | +175 °C | |
| Gate Capacitance | 1800pF | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current 62 A | ||
Maximum Collector Emitter Voltage 650 V | ||
Maximum Gate Emitter Voltage ±20 V, ±30V | ||
Number of Transistors 1 | ||
Maximum Power Dissipation 188 W | ||
Package Type TO-247 | ||
Mounting Type Through Hole | ||
Channel Type N | ||
Pin Count 3 | ||
Switching Speed 30kHz | ||
Transistor Configuration Single | ||
Dimensions 16.13 x 5.21 x 21.1mm | ||
Minimum Operating Temperature -40 °C | ||
Energy Rating 0.88mJ | ||
Maximum Operating Temperature +175 °C | ||
Gate Capacitance 1800pF | ||
Infineon TrenchStop IGBT Transistors, 600 and 650V
A range of IGBT Transistors from Infineon with collector-emitter voltage ratings of 600 and 650V featuring TrenchStop™ technology. The range includes devices with an integrated high speed, fast recovery anti-parallel diode.
• Collector-emitter voltage range 600 to 650V
• Very low VCEsat
• Low turn-off losses
• Short tail current
• Low EMI
• Maximum junction temperature 175°C
• Very low VCEsat
• Low turn-off losses
• Short tail current
• Low EMI
• Maximum junction temperature 175°C
IGBT Discretes & Modules, Infineon
The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.
