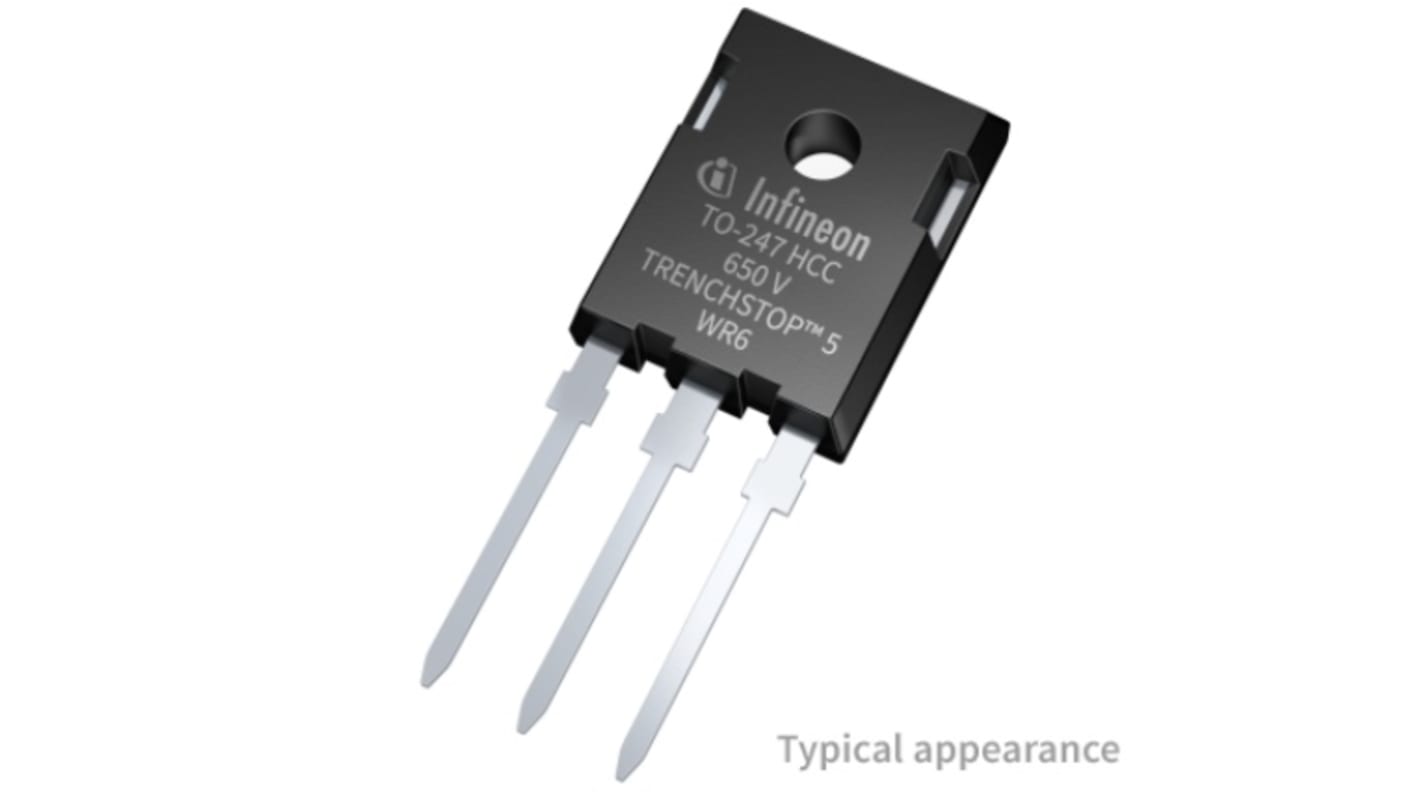

Infineon, Type N-Channel IGBT, 30 A 650 V, 3-Pin TO-247, Through Hole

View all IGBTs
Bulk discount available

Subtotal (1 tube of 30 units)*

£34.80

(exc. VAT)

£41.70

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
Per Tube*
30 - 30£1.16£34.80
60 - 120£1.102£33.06
150 - 270£1.056£31.68
300 - 570£1.009£30.27
600 +£0.963£28.89

*price indicative

RS Stock No.:
232-6737
Mfr. Part No.:
IKWH30N65WR6XKSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

IGBT

Maximum Continuous Collector Current Ic

30A

Maximum Collector Emitter Voltage Vceo

650V

Number of Transistors

1

Maximum Power Dissipation Pd

165W

Package Type

TO-247

Mount Type

Through Hole

Channel Type

Type N

Pin Count

3

Minimum Operating Temperature

-55°C

Maximum Collector Emitter Saturation Voltage VceSAT

1.75V

Maximum Gate Emitter Voltage VGEO

20 V

Maximum Operating Temperature

175°C

Standards/Approvals

JEDEC47/20/22

Height

5.21mm

Length

21.1mm

Series

IKWH30N65WR6

Automotive Standard

No

The Infineon's 30 A reverse conducting TRENCHSTOP 5 WR6 IGBT comes in high creep age and clearance TO-247-3-HCC package. It is specifically optimized for PFC for RAC / CAC and Welding inverter application. Excellent price/performance ratio of WR6 IGBT allows access to the high performance technology also for cost sensitive customers. WR6 is offering lowest VCEsat, and Esw which allows the switching frequency up to 75 kHz. WR6 IGBT also enable more reliable design with the increased clearances and creep age distances.

Monolithically integrated diode

Lowest switching losses

Improved reliability against package contamination
