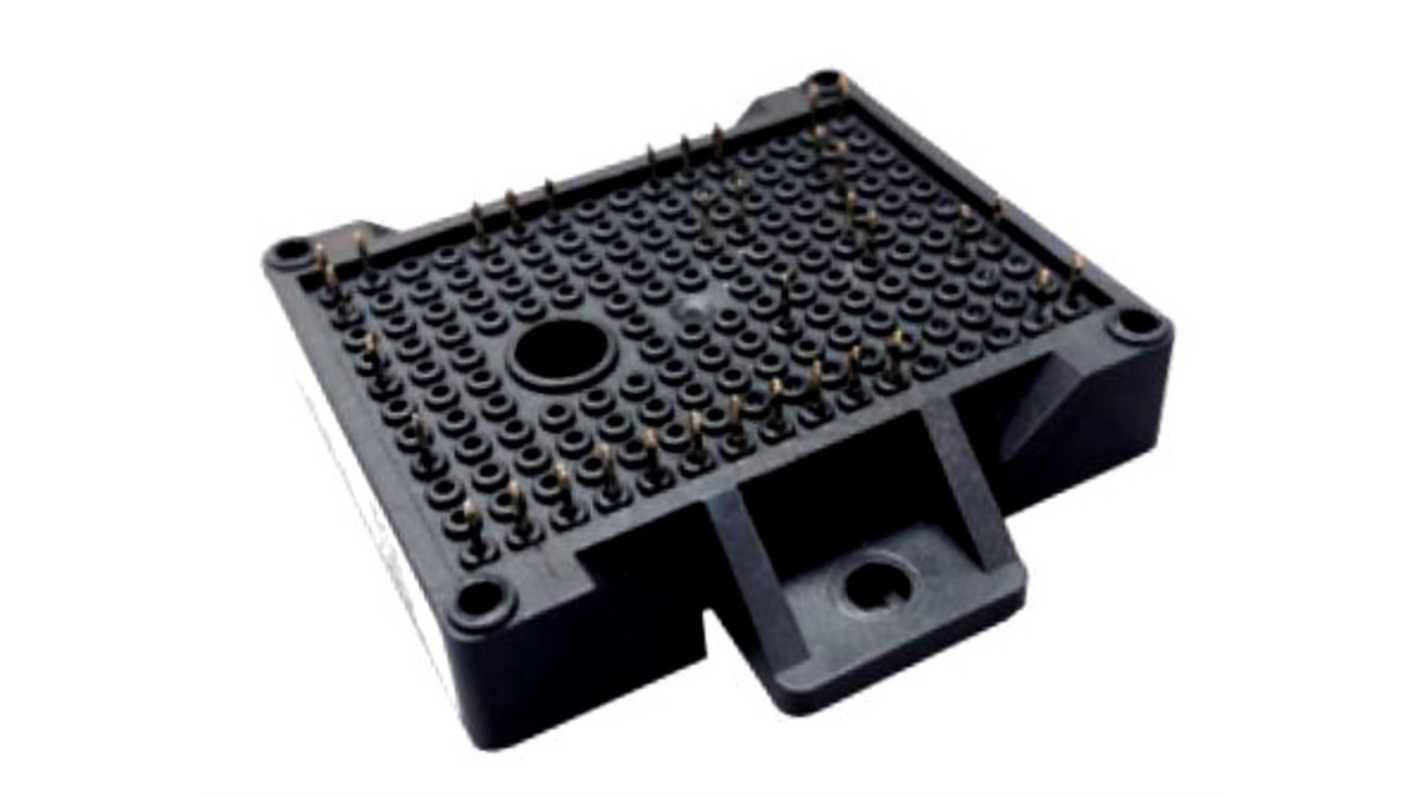

Starpower GD35PJA120L3S 3 Phase Bridge IGBT, 35 A 1200 V PIM Module, Screw Mount
- RS Stock No.:
- 427-817
- Mfr. Part No.:
- GD35PJA120L3S
- Brand:
- Starpower
Bulk discount available
Subtotal (1 unit)*
£34.44
(exc. VAT)
£41.33
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £34.44 |
| 10 - 99 | £31.00 |
| 100 + | £28.59 |
*price indicative
- RS Stock No.:
- 427-817
- Mfr. Part No.:
- GD35PJA120L3S
- Brand:
- Starpower
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Starpower | |
| Maximum Continuous Collector Current | 35 A | |
| Maximum Collector Emitter Voltage | 1200 V | |
| Maximum Gate Emitter Voltage | ±20V | |
| Number of Transistors | 7 | |
| Configuration | 3 Phase Bridge | |
| Package Type | PIM Module | |
| Mounting Type | Screw Mount | |
| Channel Type | N | |
Select all | ||
|---|---|---|
Brand Starpower | ||
Maximum Continuous Collector Current 35 A | ||
Maximum Collector Emitter Voltage 1200 V | ||
Maximum Gate Emitter Voltage ±20V | ||
Number of Transistors 7 | ||
Configuration 3 Phase Bridge | ||
Package Type PIM Module | ||
Mounting Type Screw Mount | ||
Channel Type N | ||
- COO (Country of Origin):
- CN
The Starpower IGBT Power Module provides ultralow conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS.
VCE(sat) with positive temperature coefficient
Maximum junction temperature 175°C
Low inductance case
Fast and soft reverse recovery anti parallel FWD
Isolated copper baseplate using DBC technology
Maximum junction temperature 175°C
Low inductance case
Fast and soft reverse recovery anti parallel FWD
Isolated copper baseplate using DBC technology
