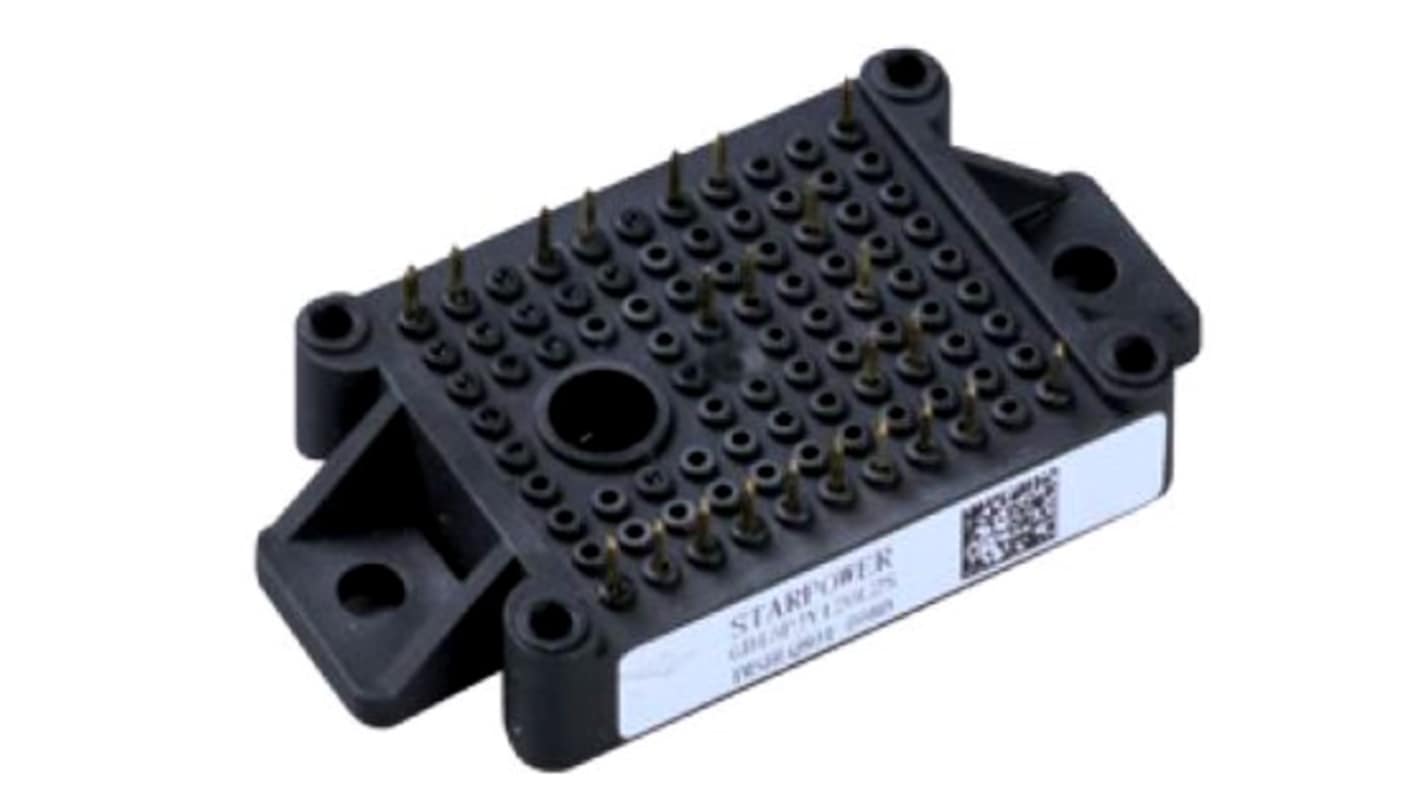

Starpower GD15PJX65L2S, N-Channel PIM IGBT Module, 30 A Module
- RS Stock No.:
- 427-805
- Mfr. Part No.:
- GD15PJX65L2S
- Brand:
- Starpower
Bulk discount available
Subtotal (1 unit)*
£21.77
(exc. VAT)
£26.12
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 24 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £21.77 |
| 10 - 99 | £19.60 |
| 100 + | £18.08 |
*price indicative
- RS Stock No.:
- 427-805
- Mfr. Part No.:
- GD15PJX65L2S
- Brand:
- Starpower
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Starpower | |
| Maximum Continuous Collector Current Ic | 30A | |
| Product Type | IGBT Module | |
| Number of Transistors | 7 | |
| Maximum Power Dissipation Pd | 112W | |
| Configuration | PIM | |
| Package Type | Module | |
| Channel Type | N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Gate Emitter Voltage VGEO | ±20 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.9V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Starpower | ||
Maximum Continuous Collector Current Ic 30A | ||
Product Type IGBT Module | ||
Number of Transistors 7 | ||
Maximum Power Dissipation Pd 112W | ||
Configuration PIM | ||
Package Type Module | ||
Channel Type N | ||
Minimum Operating Temperature -40°C | ||
Maximum Gate Emitter Voltage VGEO ±20 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 1.9V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Starpower IGBT Power Module provides ultralow conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS.
VCE(sat) with positive temperature coefficient
Maximum junction temperature 175°C
Low inductance case
Fast and soft reverse recovery anti parallel FWD
Isolated copper baseplate using DBC technology
