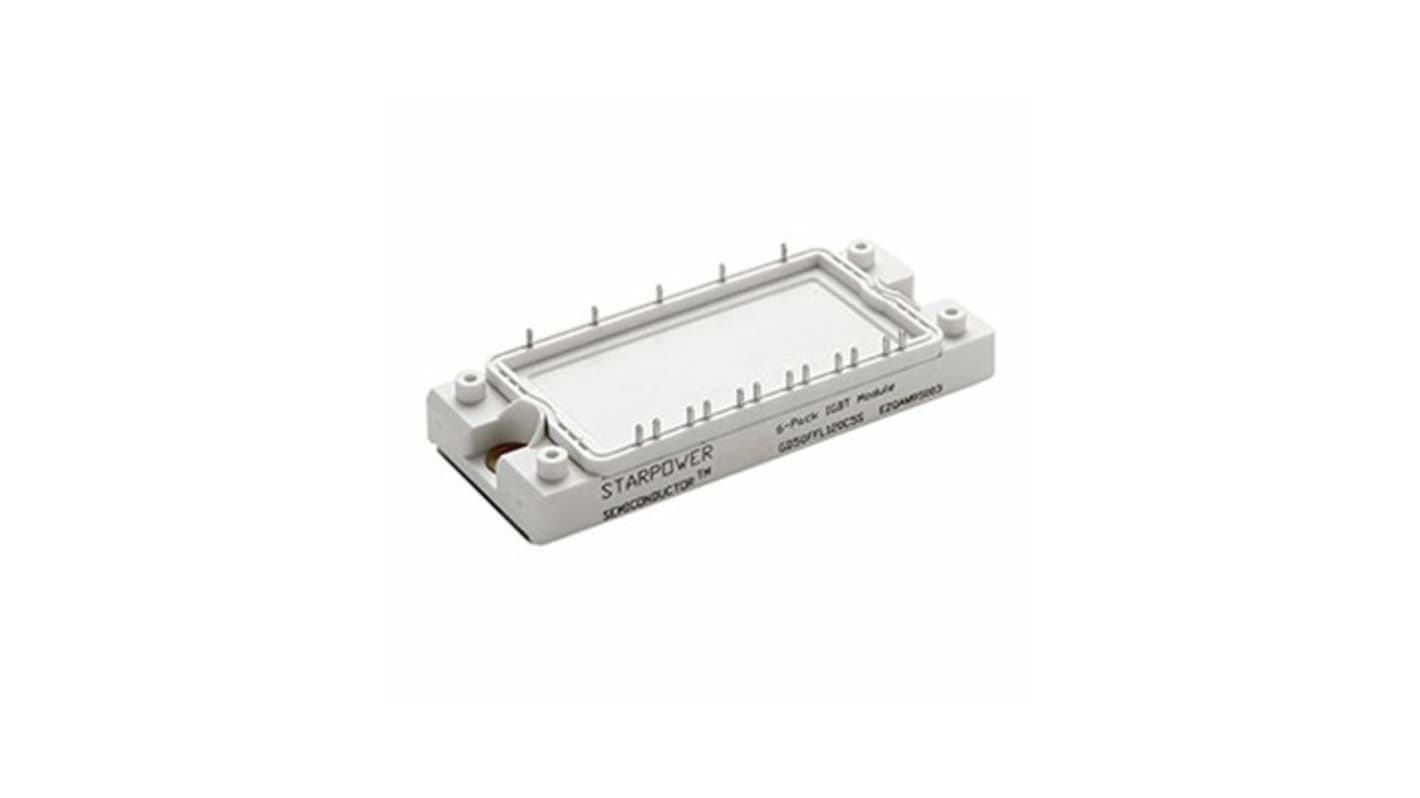

Starpower GD50PIX65C5S 3 Phase Bridge IGBT, 50 A 650 V, 24-Pin PIM Module, Screw Mount
- RS Stock No.:
- 427-765
- Mfr. Part No.:
- GD50PIX65C5S
- Brand:
- Starpower
Bulk discount available
Subtotal (1 unit)*
£57.41
(exc. VAT)
£68.89
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £57.41 |
| 10 + | £51.68 |
*price indicative
- RS Stock No.:
- 427-765
- Mfr. Part No.:
- GD50PIX65C5S
- Brand:
- Starpower
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Starpower | |
| Maximum Continuous Collector Current | 50 A | |
| Maximum Collector Emitter Voltage | 650 V | |
| Maximum Gate Emitter Voltage | ±20V | |
| Number of Transistors | 7 | |
| Maximum Power Dissipation | 189 W | |
| Configuration | 3 Phase Bridge | |
| Package Type | PIM Module | |
| Mounting Type | Screw Mount | |
| Channel Type | N | |
| Pin Count | 24 | |
Select all | ||
|---|---|---|
Brand Starpower | ||
Maximum Continuous Collector Current 50 A | ||
Maximum Collector Emitter Voltage 650 V | ||
Maximum Gate Emitter Voltage ±20V | ||
Number of Transistors 7 | ||
Maximum Power Dissipation 189 W | ||
Configuration 3 Phase Bridge | ||
Package Type PIM Module | ||
Mounting Type Screw Mount | ||
Channel Type N | ||
Pin Count 24 | ||
- COO (Country of Origin):
- CN
The Starpower IGBT Power Module provides ultralow conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS.
Maximum junction temperature 175°C
VCE(sat) with positive temperature coefficient
Low inductance case
Fast and soft reverse recovery anti parallel FWD
Isolated copper baseplate using DBC technology
VCE(sat) with positive temperature coefficient
Low inductance case
Fast and soft reverse recovery anti parallel FWD
Isolated copper baseplate using DBC technology
