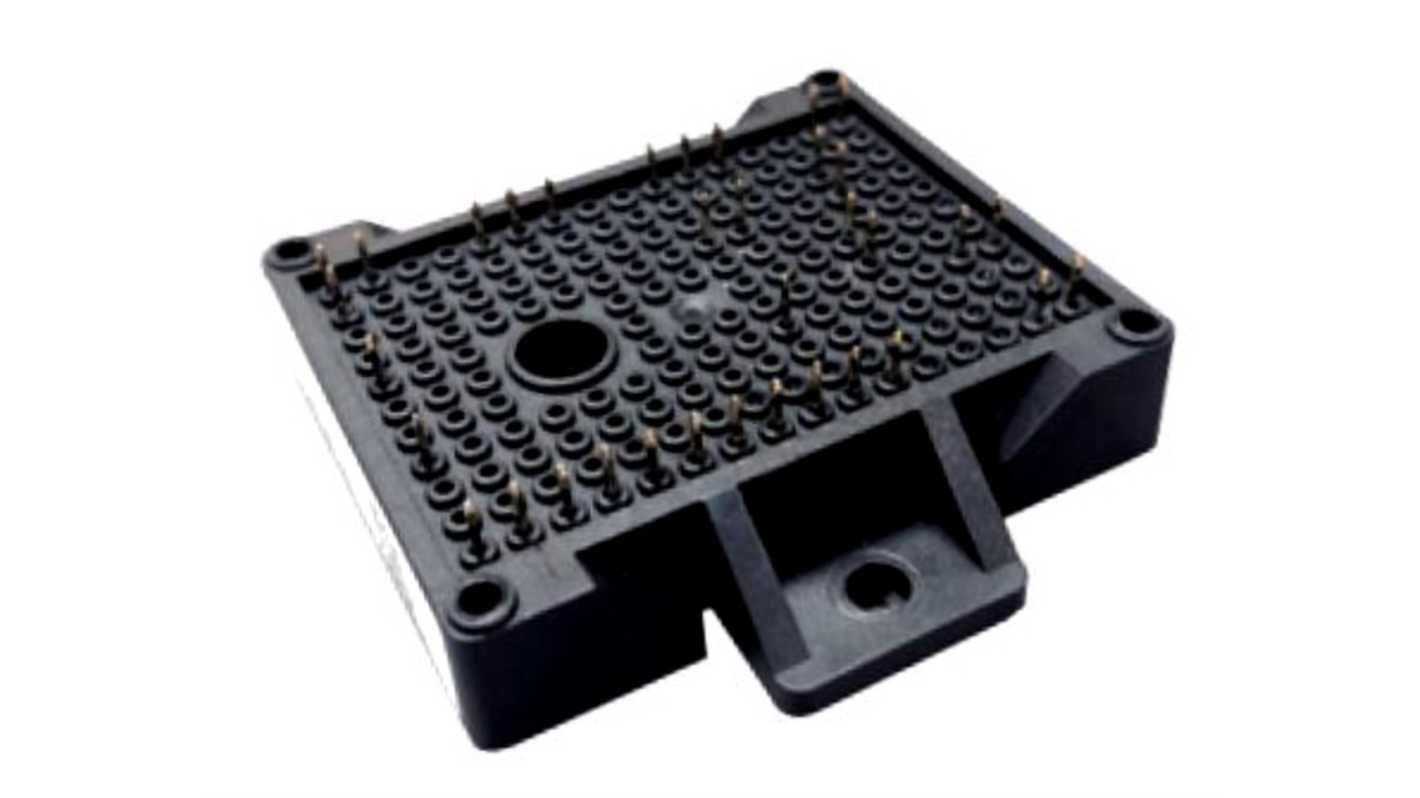

Starpower GD100MLX65L3S, N-Channel Quad IGBT Module, 160 A Module
- RS Stock No.:
- 427-807
- Mfr. Part No.:
- GD100MLX65L3S
- Brand:
- Starpower
Bulk discount available
Subtotal (1 unit)*
£49.34
(exc. VAT)
£59.21
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £49.34 |
| 10 - 99 | £44.40 |
| 100 + | £40.95 |
*price indicative
- RS Stock No.:
- 427-807
- Mfr. Part No.:
- GD100MLX65L3S
- Brand:
- Starpower
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Starpower | |
| Maximum Continuous Collector Current Ic | 160A | |
| Product Type | IGBT Module | |
| Number of Transistors | 4 | |
| Maximum Power Dissipation Pd | 451W | |
| Configuration | Quad | |
| Package Type | Module | |
| Channel Type | N | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.9V | |
| Maximum Gate Emitter Voltage VGEO | ±20 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Starpower | ||
Maximum Continuous Collector Current Ic 160A | ||
Product Type IGBT Module | ||
Number of Transistors 4 | ||
Maximum Power Dissipation Pd 451W | ||
Configuration Quad | ||
Package Type Module | ||
Channel Type N | ||
Maximum Collector Emitter Saturation Voltage VceSAT 1.9V | ||
Maximum Gate Emitter Voltage VGEO ±20 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Starpower IGBT Power Module provides ultralow conduction loss as well as short circuit ruggedness. They are designed for the applications such as3-level-application.
VCE(sat) with positive temperature coefficient
Maximum junction temperature 175°C
Fast and soft reverse recovery anti parallel FWD
Isolated copper baseplate using DBC technology
