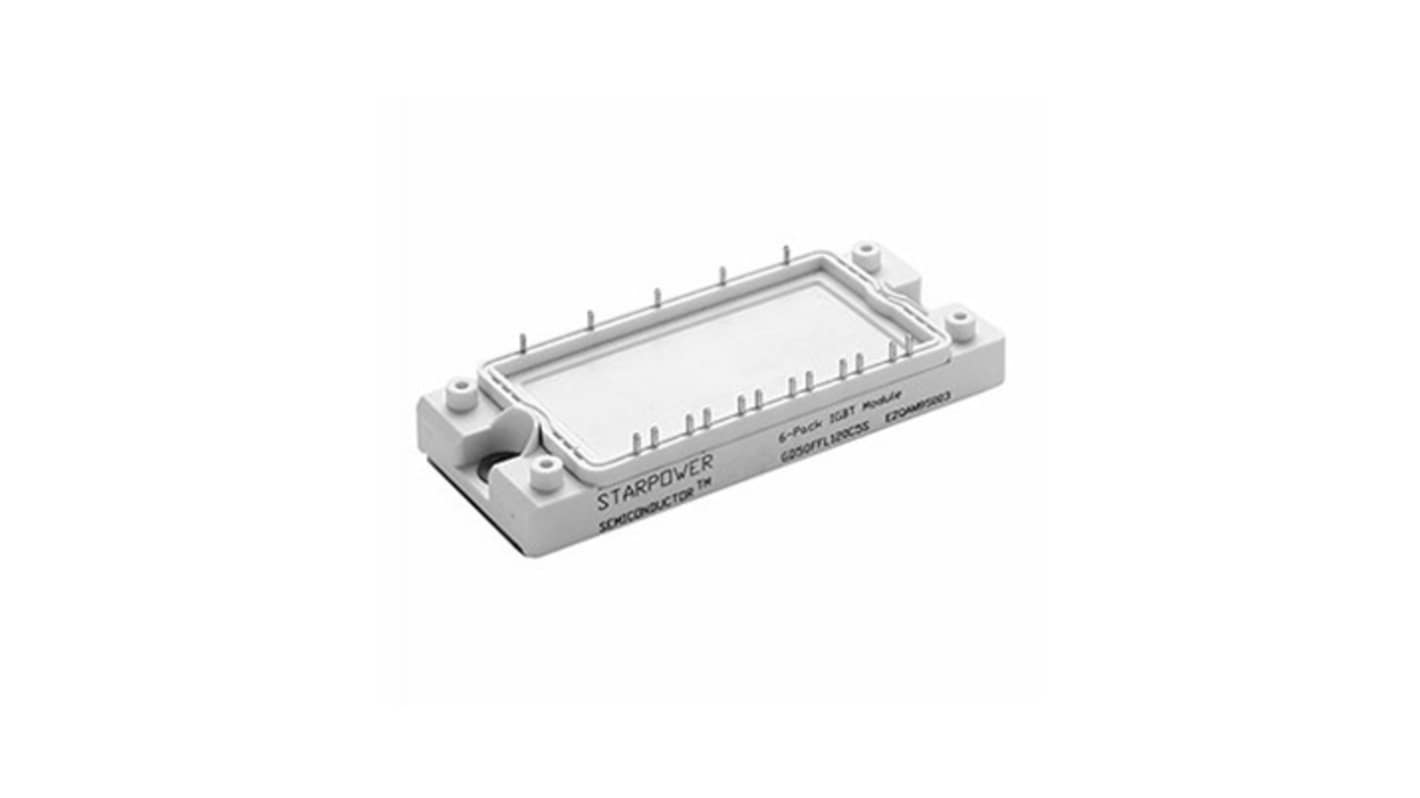

Starpower GD75HHU120C5SD, N-Channel Quad IGBT Module, 111 A, 25-Pin Module
- RS Stock No.:
- 427-774
- Mfr. Part No.:
- GD75HHU120C5SD
- Brand:
- Starpower
Bulk discount available
Subtotal (1 unit)*
£62.45
(exc. VAT)
£74.94
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £62.45 |
| 10 + | £56.20 |
*price indicative
- RS Stock No.:
- 427-774
- Mfr. Part No.:
- GD75HHU120C5SD
- Brand:
- Starpower
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Starpower | |
| Product Type | IGBT Module | |
| Maximum Continuous Collector Current Ic | 111A | |
| Number of Transistors | 4 | |
| Maximum Power Dissipation Pd | 565W | |
| Configuration | Quad | |
| Package Type | Module | |
| Channel Type | N | |
| Pin Count | 25 | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 3.25V | |
| Maximum Gate Emitter Voltage VGEO | ±20 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Starpower | ||
Product Type IGBT Module | ||
Maximum Continuous Collector Current Ic 111A | ||
Number of Transistors 4 | ||
Maximum Power Dissipation Pd 565W | ||
Configuration Quad | ||
Package Type Module | ||
Channel Type N | ||
Pin Count 25 | ||
Maximum Collector Emitter Saturation Voltage VceSAT 3.25V | ||
Maximum Gate Emitter Voltage VGEO ±20 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Starpower IGBT Power Module provides ultrafast switching speed as well as short circuit ruggedness. It's designed for the applications such as welding machine and inductive heating.
VCE(sat) with positive temperature coefficient
Low switching losses
Low inductance case
Fast and soft reverse recovery anti parallel FWD
Isolated copper baseplate using DBC technology
