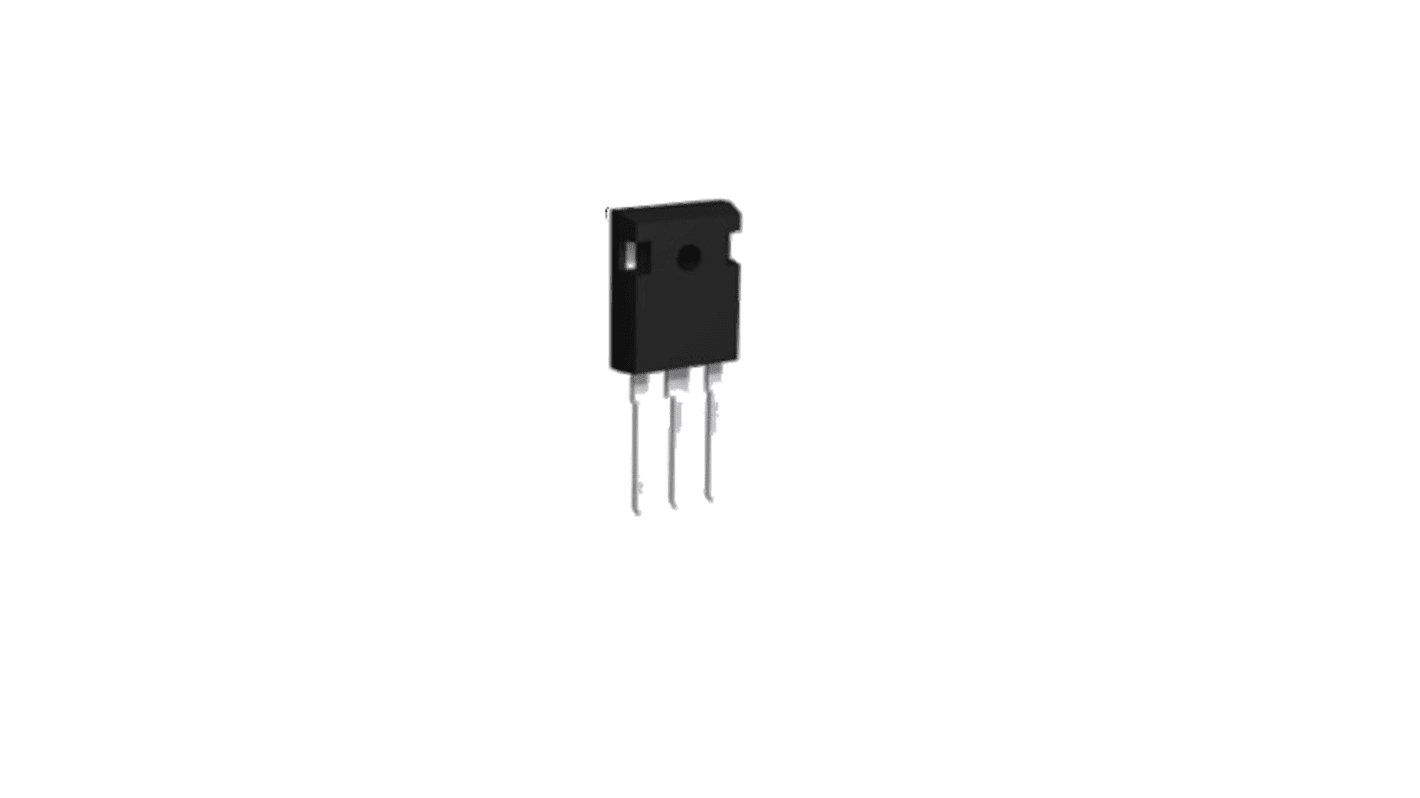

ROHM RGW50TS65GC13 Single IGBT, 50 A 650 V, 3-Pin TO-247GE, Through Hole
- RS Stock No.:
- 265-352
- Mfr. Part No.:
- RGW50TS65GC13
- Brand:
- ROHM
Bulk discount available
Subtotal (1 pack of 2 units)*
£7.08
(exc. VAT)
£8.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 120 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 - 18 | £3.54 | £7.08 |
20 - 198 | £3.19 | £6.38 |
200 - 998 | £2.935 | £5.87 |
1000 - 1998 | £2.725 | £5.45 |
2000 + | £2.44 | £4.88 |
*price indicative
- RS Stock No.:
- 265-352
- Mfr. Part No.:
- RGW50TS65GC13
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ROHM | |
Maximum Continuous Collector Current | 50 A | |
Maximum Collector Emitter Voltage | 650 V | |
Maximum Gate Emitter Voltage | ±30V | |
Maximum Power Dissipation | 156 W | |
Number of Transistors | 1 | |
Package Type | TO-247GE | |
Configuration | Single | |
Mounting Type | Through Hole | |
Channel Type | N | |
Pin Count | 3 | |
Select all | ||
---|---|---|
Brand ROHM | ||
Maximum Continuous Collector Current 50 A | ||
Maximum Collector Emitter Voltage 650 V | ||
Maximum Gate Emitter Voltage ±30V | ||
Maximum Power Dissipation 156 W | ||
Number of Transistors 1 | ||
Package Type TO-247GE | ||
Configuration Single | ||
Mounting Type Through Hole | ||
Channel Type N | ||
Pin Count 3 | ||
The ROHM IGBT suitable for PFC, solar inverter, UPS, welding and IH. It is a highly efficient series that is optimized the trade-off relationship between conduction loss and switching speed. In addition, optimizing the internal design allowed to achieve smooth switching characteristics that decrease voltage overshoot. It contributes to reduce the number of parts required along with design load.
Pb free lead plating
RoHS compliant
High speed switching
Low switching loss & soft switching
RoHS compliant
High speed switching
Low switching loss & soft switching
