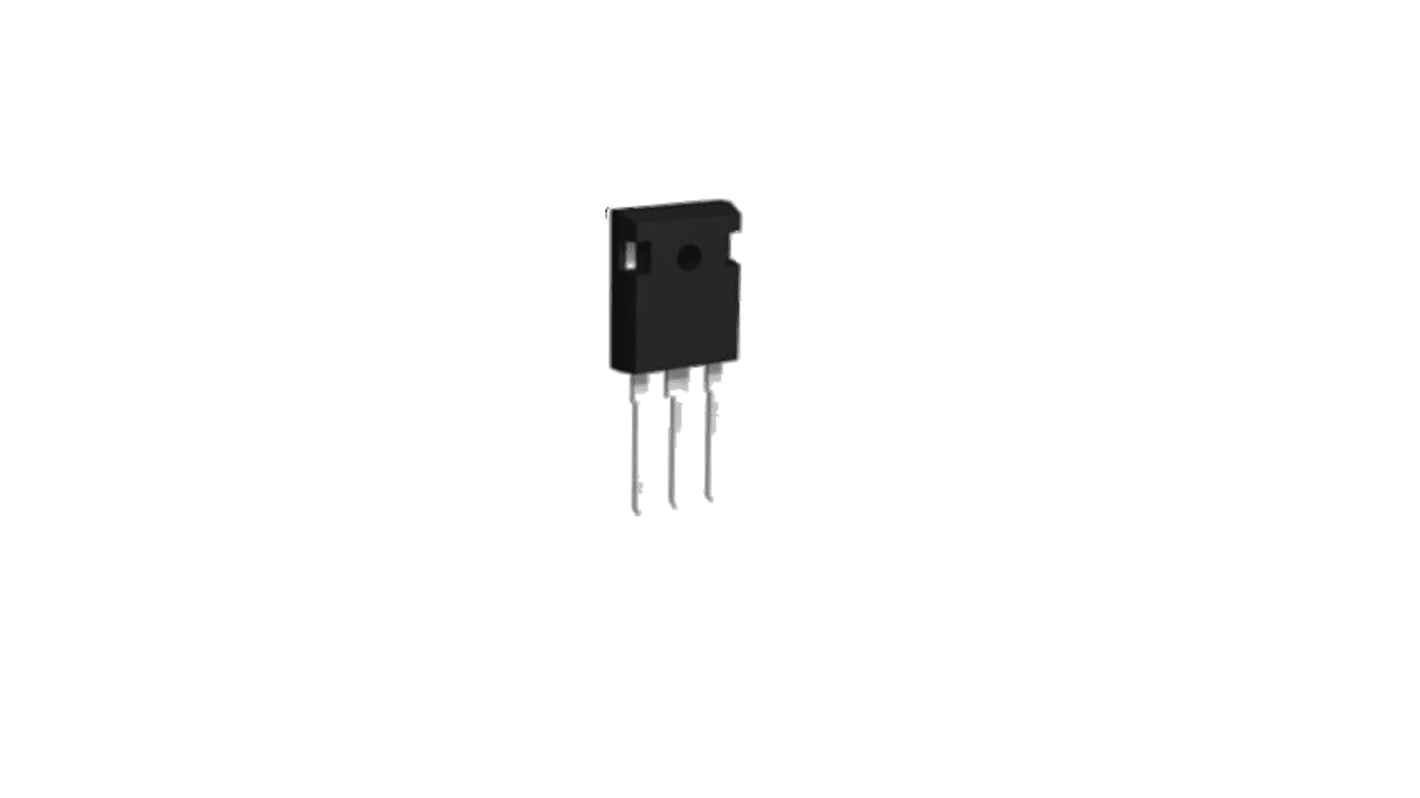

ROHM RGW40TS65DGC13 Single IGBT, 40 A 650 V, 3-Pin TO-247GE, Through Hole
- RS Stock No.:
- 265-350
- Mfr. Part No.:
- RGW40TS65DGC13
- Brand:
- ROHM
Bulk discount available
Subtotal (1 pack of 2 units)*
£8.25
(exc. VAT)
£9.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 120 unit(s) ready to ship
- Plus 999,999,878 unit(s) shipping from 03 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 - 18 | £4.125 | £8.25 |
20 - 198 | £3.71 | £7.42 |
200 - 998 | £3.425 | £6.85 |
1000 - 1998 | £3.175 | £6.35 |
2000 + | £2.845 | £5.69 |
*price indicative
- RS Stock No.:
- 265-350
- Mfr. Part No.:
- RGW40TS65DGC13
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ROHM | |
Maximum Continuous Collector Current | 40 A | |
Maximum Collector Emitter Voltage | 650 V | |
Maximum Gate Emitter Voltage | ±30V | |
Maximum Power Dissipation | 136 W | |
Number of Transistors | 1 | |
Configuration | Single | |
Package Type | TO-247GE | |
Mounting Type | Through Hole | |
Channel Type | N | |
Pin Count | 3 | |
Select all | ||
---|---|---|
Brand ROHM | ||
Maximum Continuous Collector Current 40 A | ||
Maximum Collector Emitter Voltage 650 V | ||
Maximum Gate Emitter Voltage ±30V | ||
Maximum Power Dissipation 136 W | ||
Number of Transistors 1 | ||
Configuration Single | ||
Package Type TO-247GE | ||
Mounting Type Through Hole | ||
Channel Type N | ||
Pin Count 3 | ||
The ROHM IGBT suitable for PFC, solar inverter, UPS, welding and IH. It is a highly efficient series IGBT that is optimized the trade off relationship between conduction loss and switching speed. In addition, optimizing the internal design allowed to achieve smooth switching characteristics that decrease voltage overshoot. It contributes to reduce the number of parts required along with design load.
Pb free lead plating
RoHS compliant
High speed switching
Low switching loss and soft switching
Built in very fast and soft recovery FRD
RoHS compliant
High speed switching
Low switching loss and soft switching
Built in very fast and soft recovery FRD
