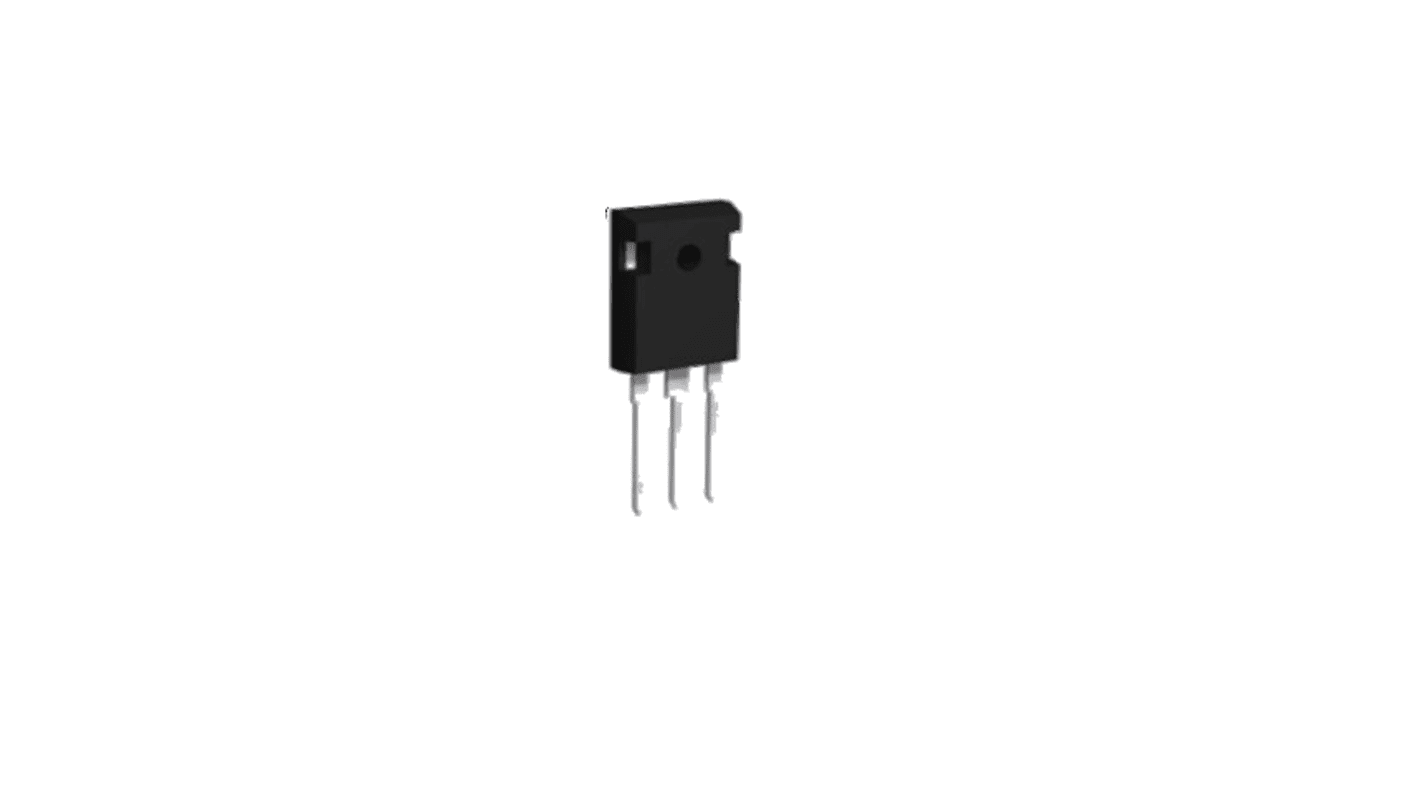

ROHM RGTVX6TS65DGC13, Type N-Channel IGBT, 80 A 650 V, 3-Pin TO-247GE, Through Hole
- RS Stock No.:
- 265-341
- Mfr. Part No.:
- RGTVX6TS65DGC13
- Brand:
- ROHM
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£7.38
(exc. VAT)
£8.86
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 120 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 9 | £7.38 |
| 10 - 99 | £6.65 |
| 100 - 499 | £6.13 |
| 500 - 999 | £5.68 |
| 1000 + | £5.10 |
*price indicative
- RS Stock No.:
- 265-341
- Mfr. Part No.:
- RGTVX6TS65DGC13
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | IGBT | |
| Maximum Continuous Collector Current Ic | 80A | |
| Maximum Collector Emitter Voltage Vceo | 650V | |
| Maximum Power Dissipation Pd | 404W | |
| Package Type | TO-247GE | |
| Mount Type | Through Hole | |
| Channel Type | Type N | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.5V | |
| Maximum Gate Emitter Voltage VGEO | ±30 V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type IGBT | ||
Maximum Continuous Collector Current Ic 80A | ||
Maximum Collector Emitter Voltage Vceo 650V | ||
Maximum Power Dissipation Pd 404W | ||
Package Type TO-247GE | ||
Mount Type Through Hole | ||
Channel Type Type N | ||
Pin Count 3 | ||
Minimum Operating Temperature -40°C | ||
Maximum Collector Emitter Saturation Voltage VceSAT 1.5V | ||
Maximum Gate Emitter Voltage VGEO ±30 V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The ROHM IGBT features a low collector emitter saturation voltage, making it ideal for applications such as Power Factor Correction, solar inverters, uninterruptible power supplies, welding, and induction heating. It offers a short circuit withstand time of 2 microseconds, ensuring reliable operation in demanding conditions. Additionally, it is equipped with a built in very fast and soft recovery diode, enhancing its performance and efficiency in high frequency applications.
Pb free lead plating
RoHS compliant
High speed switching and low switching loss
