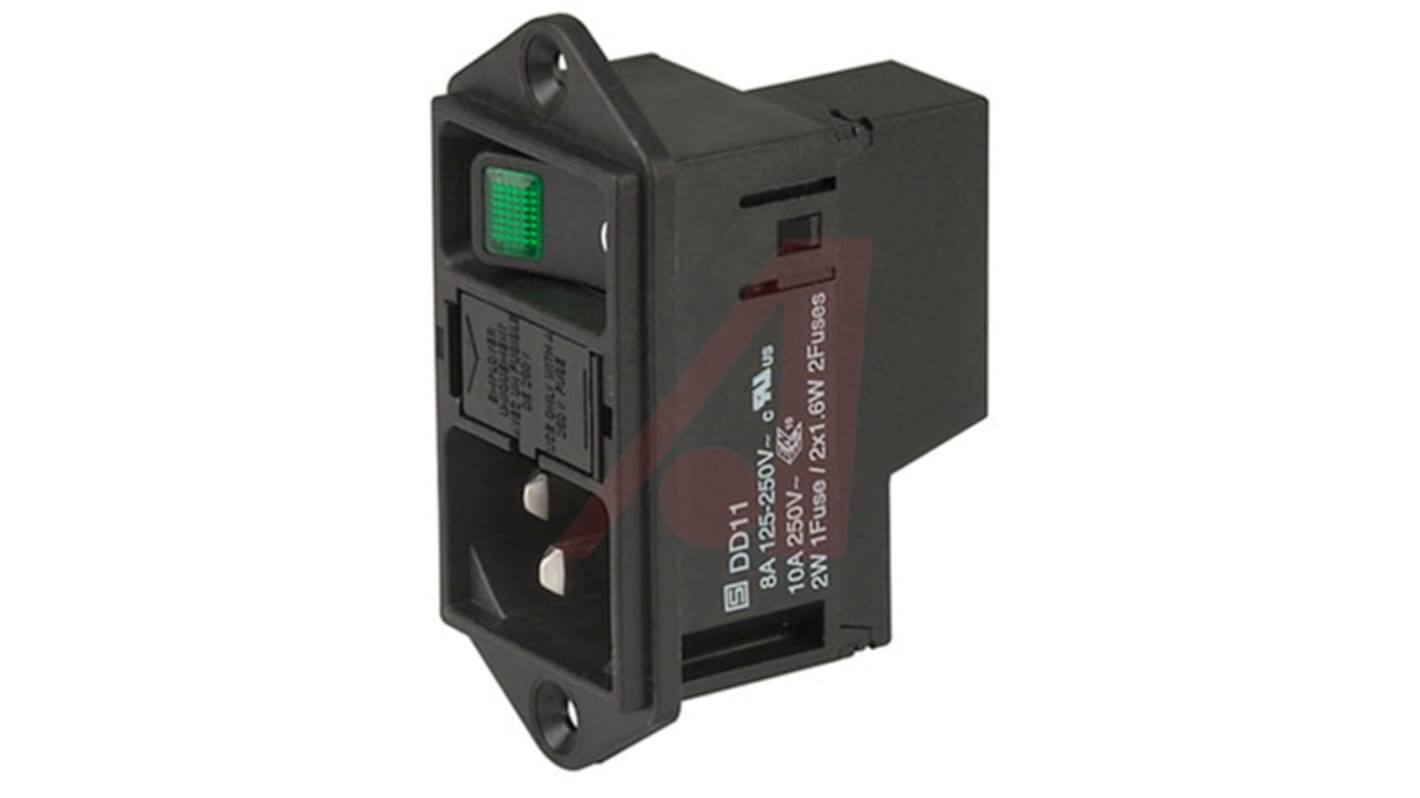

Schurter C14 Straight Panel Mount IEC Connector, 250V Female, Fuse Size 5 x 20 mm, 10A

RS Stock No.:: 870-3261
Distrelec Article No.:: 304-44-794
Mfr. Part No.:: DD11.0111.1111
Brand:: Schurter

Schurter C14 Straight Panel Mount IEC Connector, 250V Female, Fuse Size 5 x 20 mm, 10A

Subtotal (1 pack of 50 units)*

£433.00

(exc. VAT)

£519.50

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 100 unit(s) shipping from 08 June 2026
Plus 100 unit(s) shipping from 26 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
50 +	£8.66	£433.00

*price indicative

RS Stock No.:: 870-3261
Distrelec Article No.:: 304-44-794
Mfr. Part No.:: DD11.0111.1111
Brand:: Schurter

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schurter
	IEC Connector Type	C14
	Product Type	IEC Connector
	Mount Type	Panel Mount
	Current	10A
	Orientation	Straight
	Connector Gender	Female
	Switch Type	2 Pole
	Number of Fuses	1
	Voltage	250V
	Rewireable	Yes
	Termination Type	Quick Connect
	Contact Gender	Male
	Fuse Size	5 x 20 mm
	Standards/Approvals	No
	Shuttered	No
	Series	DD11

	Select all
	Brand Schurter
	IEC Connector Type C14
	Product Type IEC Connector
	Mount Type Panel Mount
	Current 10A
	Orientation Straight
	Connector Gender Female
	Switch Type 2 Pole
	Number of Fuses 1
	Voltage 250V
	Rewireable Yes
	Termination Type Quick Connect
	Contact Gender Male
	Fuse Size 5 x 20 mm
	Standards/Approvals No
	Shuttered No
	Series DD11

Datasheet

COO (Country of Origin):: CZ

DD11 Series Power Entry Module (without filter)

The DD11 series power entry modules have been designed for panel mount applications. They are screw on and can be mounted and secured from the front or rear side. They have been designed to serve 3 functions. Firstly they offer appliance inlet protection class I. Second is a 2-pole line switch and lastly they have a built in fuse folder for 5x20mm fuses.

They come with a V-lock notch as standard and are equipped with 4.8 x 0.8mm quick connect terminals. These units are non-filtered.

Features:

Ultra-compact design. Ideal for low profile designs

All single elements are already wired

Fuse drawer meets requirements of medical standard IEC/EN 60601-1

Ideal for application with high transient loads

Suitable for use in equipment according to IEC/UL 60950

Note

Fuse Holders must be ordered separately

Standards

VDE Certificate Number: 40018283
UL File Number: E93617
