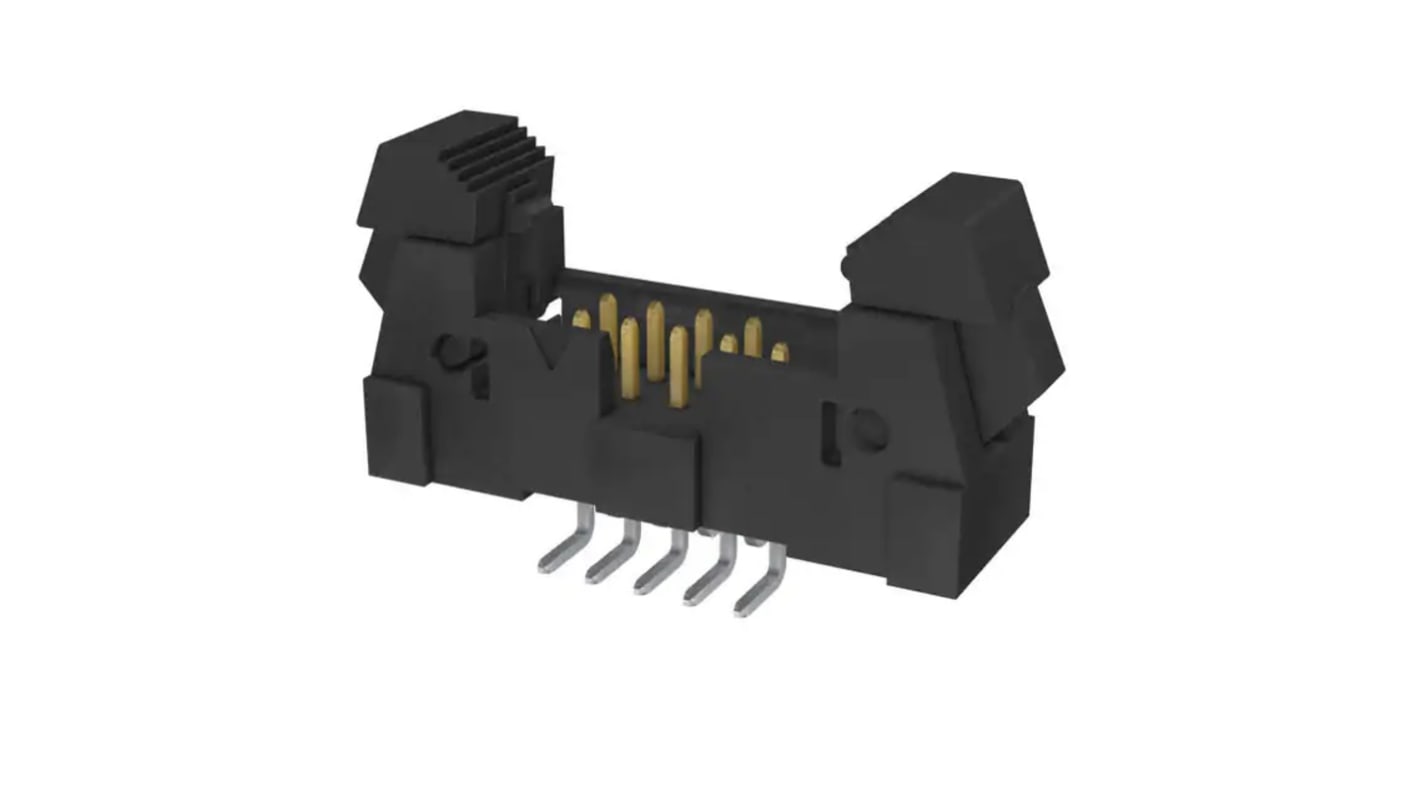

Samtec 10-Way PCB Header Male for Surface Mount, 2 Row
- RS Stock No.:
- 227-1139
- Mfr. Part No.:
- EHT-105-01-S-D-SM-K-TR
- Brand:
- Samtec
Subtotal (1 reel of 175 units)*
£947.10
(exc. VAT)
£1,136.45
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 175 + | £5.412 | £947.10 |
*price indicative
- RS Stock No.:
- 227-1139
- Mfr. Part No.:
- EHT-105-01-S-D-SM-K-TR
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | PCB Header | |
| Number of Contacts | 10 | |
| Number of Rows | 2 | |
| Pitch | 1.27mm | |
| Shrouded/Unshrouded | Shrouded | |
| Connector Gender | Male | |
| Mount Type | Surface Mount | |
| Orientation | Straight | |
| Contact Plating | Tin, Gold | |
| Series | EHT | |
| Termination Type | IDC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Housing Material | Liquid Crystal Polymer | |
| Contact Material | Phosphor Bronze | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type PCB Header | ||
Number of Contacts 10 | ||
Number of Rows 2 | ||
Pitch 1.27mm | ||
Shrouded/Unshrouded Shrouded | ||
Connector Gender Male | ||
Mount Type Surface Mount | ||
Orientation Straight | ||
Contact Plating Tin, Gold | ||
Series EHT | ||
Termination Type IDC | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Housing Material Liquid Crystal Polymer | ||
Contact Material Phosphor Bronze | ||
The Samtec EHT series 2mm shrouded IDC ejector header has 5 pins per row and 1 lead style. It has 0.000762mm selective gold in contact area and matte tin on tail.
Surface mount tail option
Polyamide film pad
Tape and reel packaging
