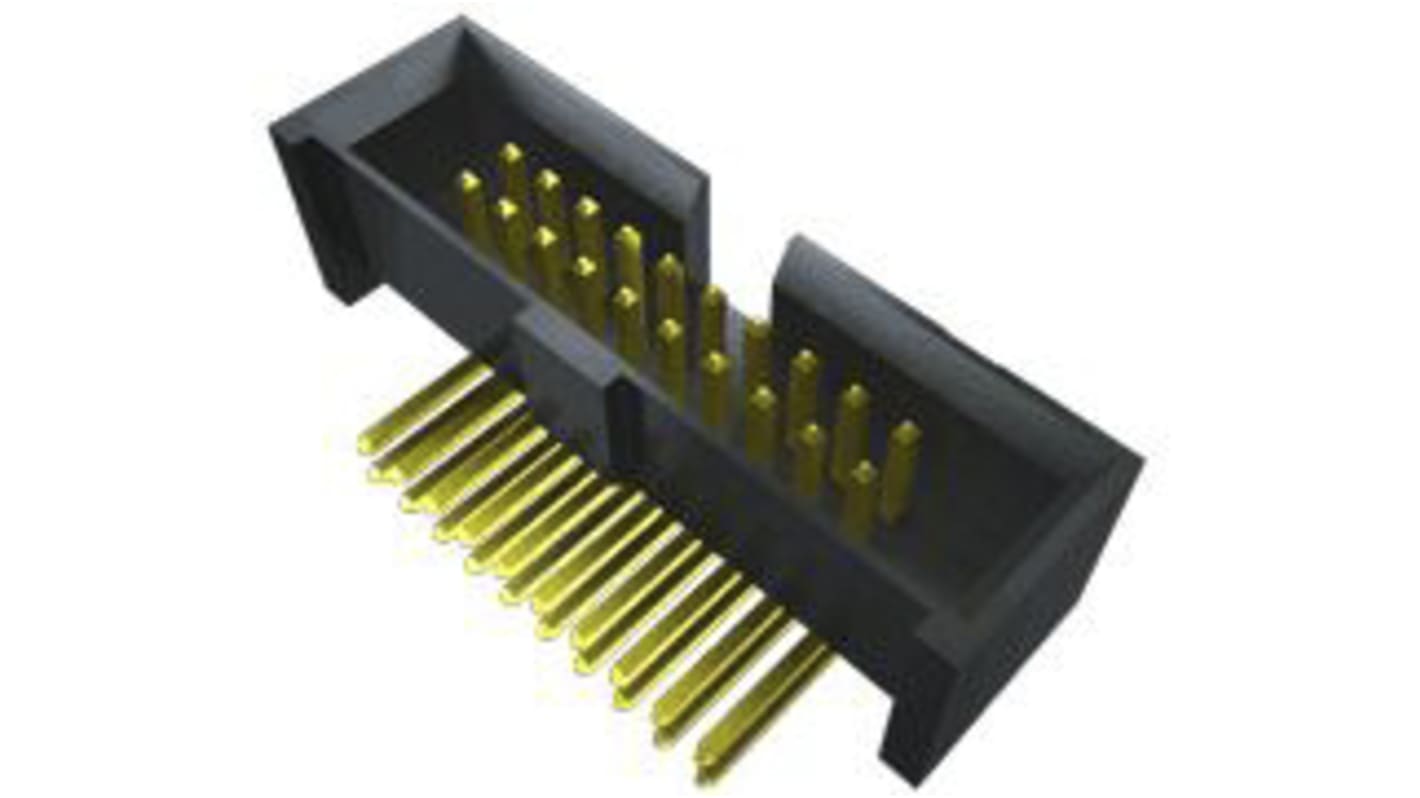

Samtec SHF Series Straight Surface Mount PCB Header, 10 Contact(s), 1.27mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 180-2538
- Mfr. Part No.:
- SHF-105-01-L-D-SM-K-TR
- Brand:
- Samtec
33 In stock - FREE next working day delivery available
Price Each (On a Reel of 450)
£2.078
(exc. VAT)
£2.494
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 450 + | £2.078 | £935.10 |
*price indicative
- RS Stock No.:
- 180-2538
- Mfr. Part No.:
- SHF-105-01-L-D-SM-K-TR
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
.050" (1.27 mm) pitch
All common pin counts from 3 to 25
Mates with FFSD/FFTP without strain relief
Polarization notch
Through-hole, right-angle and surface mount
All common pin counts from 3 to 25
Mates with FFSD/FFTP without strain relief
Polarization notch
Through-hole, right-angle and surface mount
Specifications
Attribute | Value |
|---|---|
| Series | SHF |
| Pitch | 1.27mm |
| Number of Contacts | 10 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Surface Mount |
| Connector System | Board to Board |
| Termination Method | Solder |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
