Samtec 16-Way PCB Header Plug for Surface Mount, 2-Row
- RS Stock No.:
- 227-1142
- Mfr. Part No.:
- EHT-108-01-S-D-SM-P-TR
- Brand:
- Samtec
Bulk discount available
Subtotal (1 unit)*
£9.79
(exc. VAT)
£11.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 72 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £9.79 |
| 10 - 24 | £8.90 |
| 25 - 49 | £8.16 |
| 50 - 99 | £7.54 |
| 100 + | £6.98 |
*price indicative
- RS Stock No.:
- 227-1142
- Mfr. Part No.:
- EHT-108-01-S-D-SM-P-TR
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Number of Contacts | 16 | |
| Number of Rows | 2 | |
| Gender | Male | |
| Pitch | 2mm | |
| Mounting Type | Surface Mount | |
| Body Orientation | Straight | |
| Termination Method | IDC | |
| Contact Plating | Au/Sn Over Ni | |
| Series | EHT | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | '+125°C | |
| Contact Material | Phosphor Bronze | |
| Housing Material | Black Liquid Crystal Polymer | |
Select all | ||
|---|---|---|
Brand Samtec | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Gender Male | ||
Pitch 2mm | ||
Mounting Type Surface Mount | ||
Body Orientation Straight | ||
Termination Method IDC | ||
Contact Plating Au/Sn Over Ni | ||
Series EHT | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature '+125°C | ||
Contact Material Phosphor Bronze | ||
Housing Material Black Liquid Crystal Polymer | ||

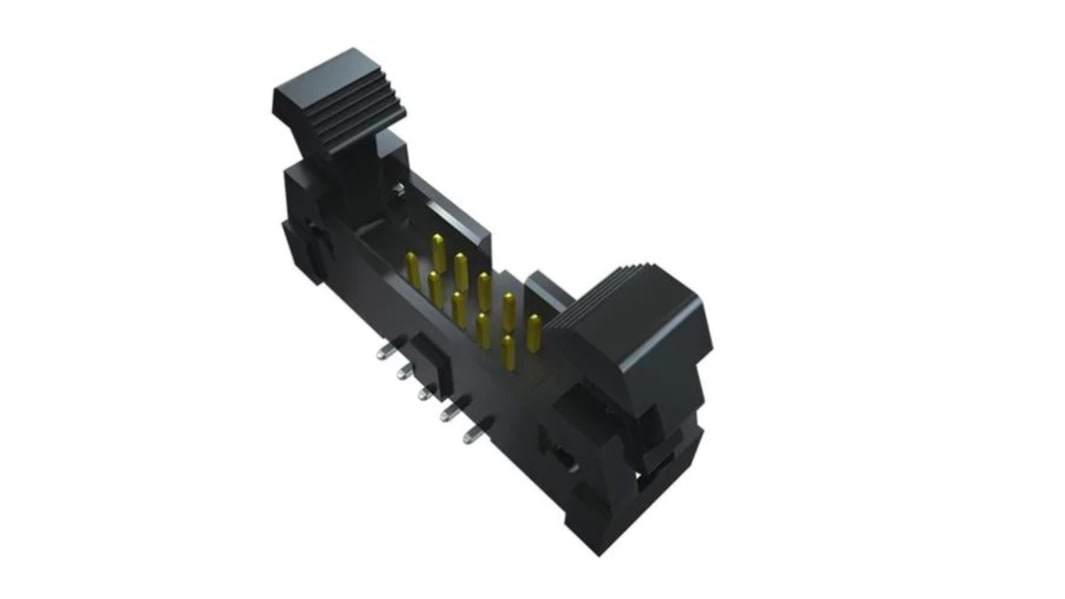

SAMTEC EHT Series PCB Header, 16 Contacts, Surface Mount - EHT-108-01-S-D-SM-P-TR
This PCB header connector is designed to provide a reliable interconnection solution for electronic applications. Featuring 16 contacts arranged in two rows, this male IDC connector operates with a 2mm pitch and is constructed from durable black liquid crystal polymer. The header is optimised for surface mount technology, making it suitable for high-density circuit designs.
Features & Benefits
• Robust construction with black liquid crystal polymer
• High conductivity from phosphor bronze contacts
• IDC termination method ensures secure connections
• Available with gold flash or matte tin plating options
• High conductivity from phosphor bronze contacts
• IDC termination method ensures secure connections
• Available with gold flash or matte tin plating options
Applications
• Used with TCSD and TCMD connectors for reliable connections
• Ideal for high-density PCB layouts in electronics
• Suitable for projects requiring surface mount headers
• Ideal for high-density PCB layouts in electronics
• Suitable for projects requiring surface mount headers
Can it operate in extreme temperatures?
Yes, it functions effectively between -55 and 125°C.
