Samtec 16-Way PCB Header Male for Surface Mount, 2 Row
- RS Stock No.:
- 227-1141
- Mfr. Part No.:
- EHT-108-01-S-D-SM-P-TR
- Brand:
- Samtec
Subtotal (1 reel of 150 units)*
£873.00
(exc. VAT)
£1,047.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 150 + | £5.82 | £873.00 |
*price indicative
- RS Stock No.:
- 227-1141
- Mfr. Part No.:
- EHT-108-01-S-D-SM-P-TR
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | PCB Header | |
| Number of Contacts | 16 | |
| Number of Rows | 2 | |
| Pitch | 2mm | |
| Mount Type | Surface Mount | |
| Shrouded/Unshrouded | Shrouded | |
| Connector Gender | Male | |
| Orientation | Straight | |
| Contact Plating | Gold, Tin | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | IDC | |
| Series | EHT | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Contact Material | Phosphor Bronze | |
| Housing Material | Liquid Crystal Polymer | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type PCB Header | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Pitch 2mm | ||
Mount Type Surface Mount | ||
Shrouded/Unshrouded Shrouded | ||
Connector Gender Male | ||
Orientation Straight | ||
Contact Plating Gold, Tin | ||
Minimum Operating Temperature -55°C | ||
Termination Type IDC | ||
Series EHT | ||
Contact Gender Male | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Contact Material Phosphor Bronze | ||
Housing Material Liquid Crystal Polymer | ||

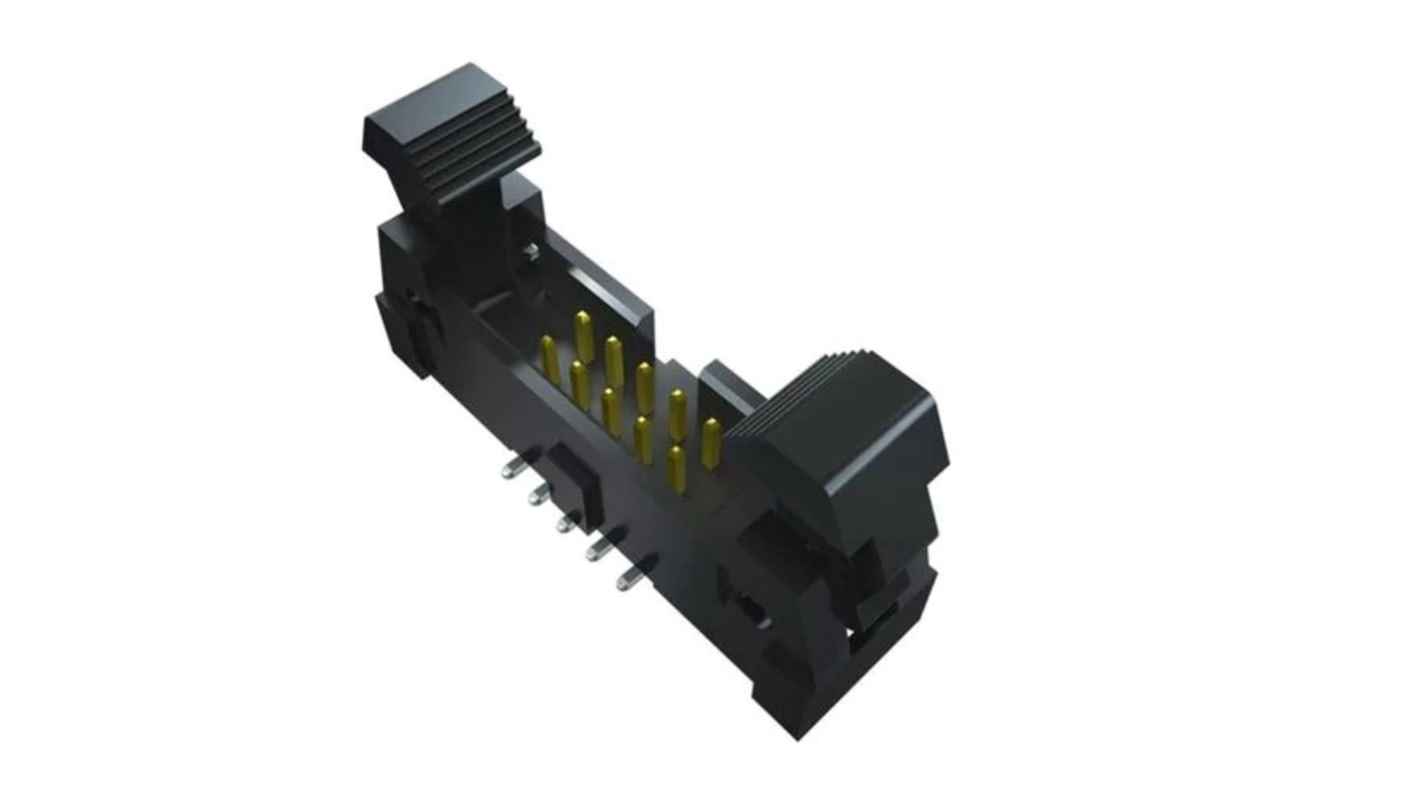

The Samtec EHT series 2mm shrouded IDC ejector header has 8 pins per row and 1 lead style. It has 0.000762mm selective gold in contact area and matte tin on tail.
Surface mount tail option
Pick and place pad
Tape and reel packaging
