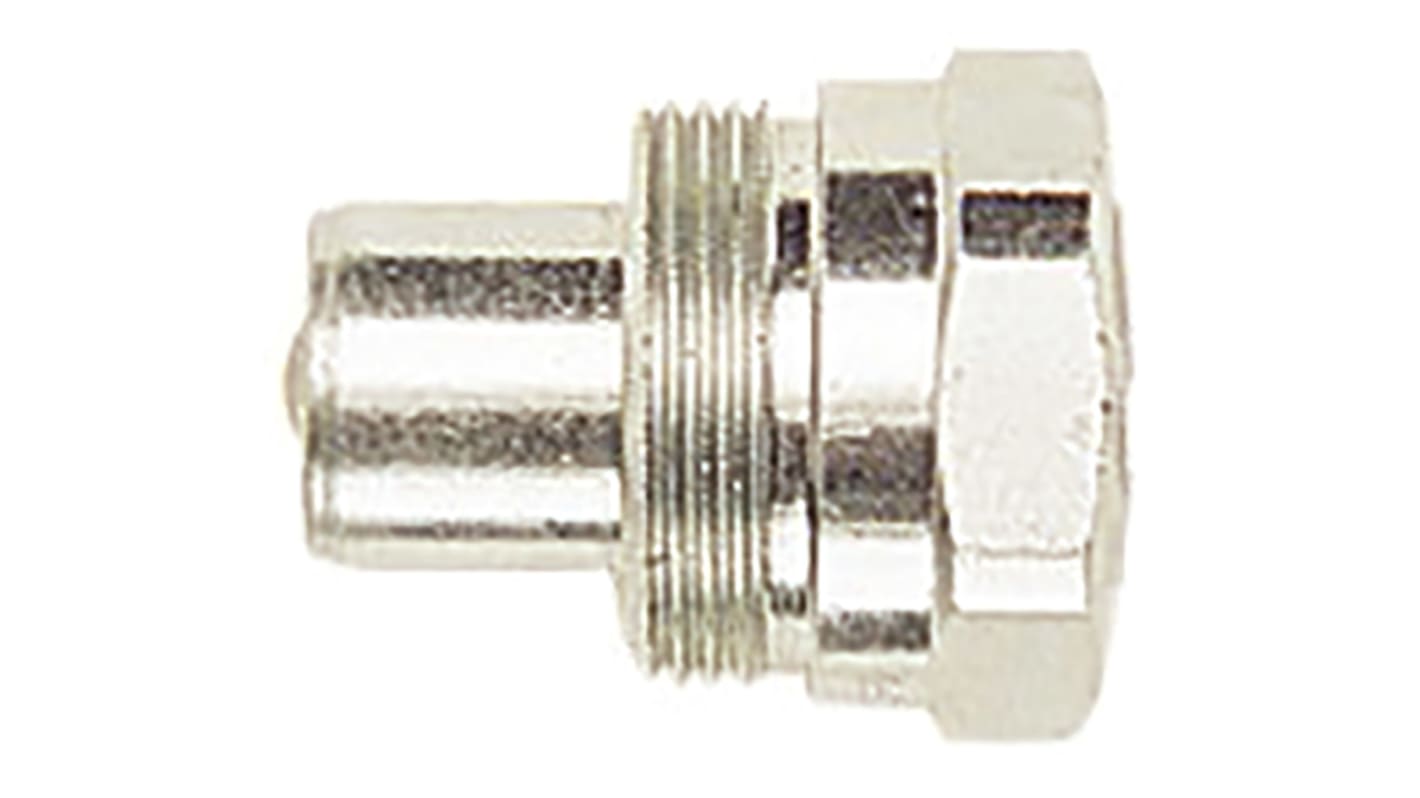

CEJN Steel Hydraulic Quick Connect Coupling Female NPT 1/4 in, 700 bar
- RS Stock No.:
- 189-1748
- Mfr. Part No.:
- C102326402
- Brand:
- CEJN
Subtotal (1 unit)*
£13.22
(exc. VAT)
£15.86
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 61 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £13.22 |
*price indicative
- RS Stock No.:
- 189-1748
- Mfr. Part No.:
- C102326402
- Brand:
- CEJN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | CEJN | |
| Product Type | Hydraulic Quick Connect Coupling | |
| Thread Size | 1/4 in | |
| Material | Steel | |
| Series | 232 | |
| Sub Type | Nipple | |
| Lock Type | Screw Lock | |
| Finish | Zinc Plated | |
| Seal Material | Nitrile Rubber | |
| Thread Standard | NPT | |
| Minimum Operating Temperature | -30°C | |
| Thread Gender | Female | |
| Standards/Approvals | RoHS | |
| Maximum Operating Pressure | 700 bar | |
| Maximum Operating Temperature | 100°C | |
| Select all | ||
|---|---|---|
Brand CEJN | ||
Product Type Hydraulic Quick Connect Coupling | ||
Thread Size 1/4 in | ||
Material Steel | ||
Series 232 | ||
Sub Type Nipple | ||
Lock Type Screw Lock | ||
Finish Zinc Plated | ||
Seal Material Nitrile Rubber | ||
Thread Standard NPT | ||
Minimum Operating Temperature -30°C | ||
Thread Gender Female | ||
Standards/Approvals RoHS | ||
Maximum Operating Pressure 700 bar | ||
Maximum Operating Temperature 100°C | ||
- COO (Country of Origin):
- SE
Series 232 is a series of robust screw-to-connect couplings. The couplings are also available with teeth lock function for increased vibration resistance. Complete interchangeability with other brands following the same standard. High flow rate capacity, high quality and ability to withstand harsh conditions, make them an ideal fit for many different applications. With the teeth lock function, the connection is more vibration resistant to minimize the risk of accidental unscrewing and costly downtime.
