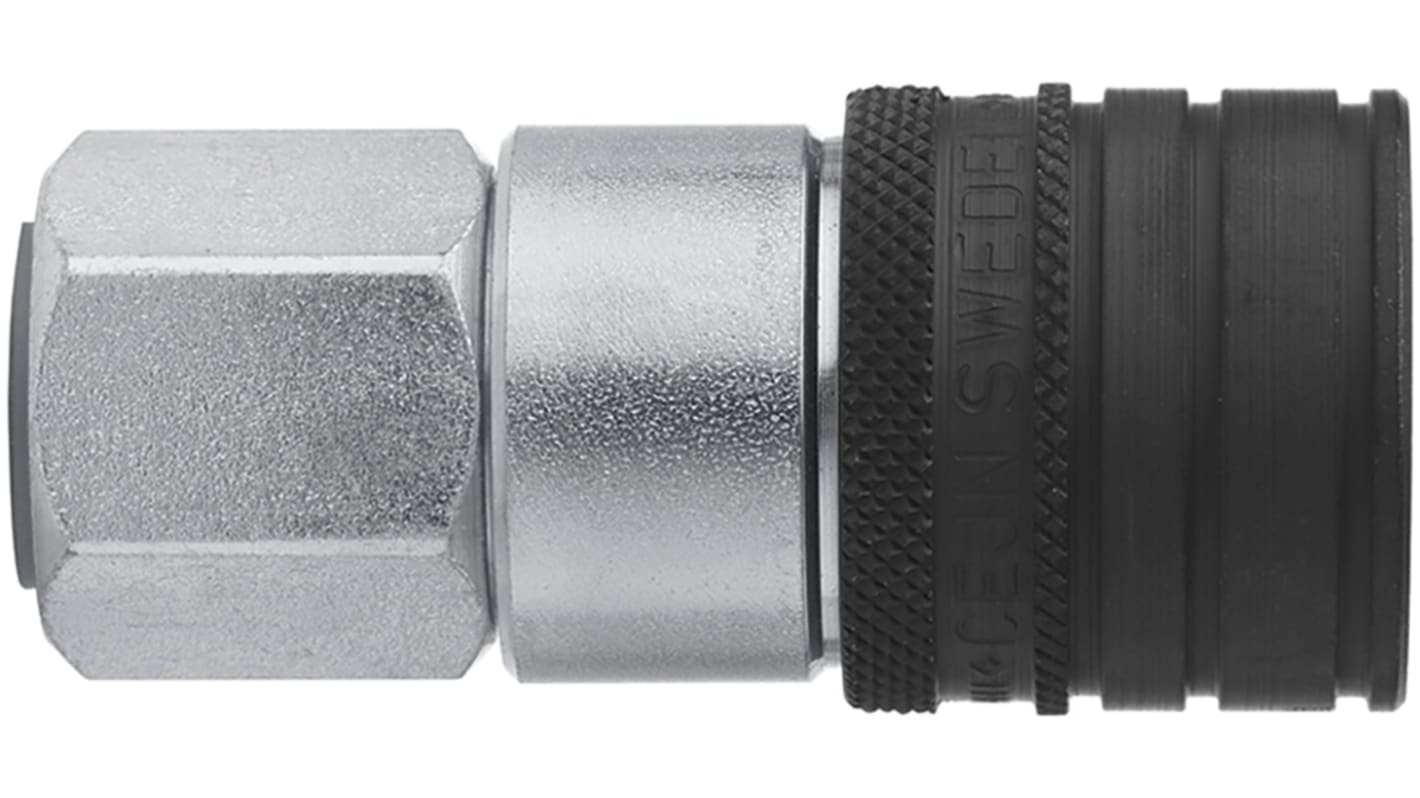

CEJN Steel Female Hydraulic Quick Connect Coupling, NPT 1/4 Female
- RS Stock No.:
- 189-1707
- Mfr. Part No.:
- C102651402
- Brand:
- CEJN
Subtotal (1 unit)*
£36.47
(exc. VAT)
£43.76
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £36.47 |
*price indicative
- RS Stock No.:
- 189-1707
- Mfr. Part No.:
- C102651402
- Brand:
- CEJN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | CEJN | |
Thread | NPT 1/4 Female | |
Coupling Gender | Female | |
Thread Size | 1/4in | |
Material | Steel | |
Series | 265 | |
Compatible With | ISO Standard 16028 | |
Type | Coupling | |
Seal Material | Nitrile Rubber | |
Thread Standard | NPT | |
Thread Gender | Female | |
Maximum Operating Pressure | 500 bar | |
Maximum Operating Temperature | +100°C | |
Minimum Operating Temperature | -30°C | |
Select all | ||
---|---|---|
Brand CEJN | ||
Thread NPT 1/4 Female | ||
Coupling Gender Female | ||
Thread Size 1/4in | ||
Material Steel | ||
Series 265 | ||
Compatible With ISO Standard 16028 | ||
Type Coupling | ||
Seal Material Nitrile Rubber | ||
Thread Standard NPT | ||
Thread Gender Female | ||
Maximum Operating Pressure 500 bar | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -30°C | ||
- COO (Country of Origin):
- SE
CEJN Series 265 is a Flat-Face quick-connect coupling for low- and medium-pressure hydraulic applications. The Flat-Face design minimizes spillage during connection and disconnection. Series 265 couplings require only one hand for operation, making connection and disconnection fast and easy. Dust caps are available as accessories for both the coupling and nipple when disconnected to prevent dust and debris from entering the system. Series 265 couplings feature manual security locking as added protection against involuntary disconnection. The couplings and nipples are also available in other sizes.
Flat-Face design
One-hand operated
Extra security locking
One-hand operated
Extra security locking
