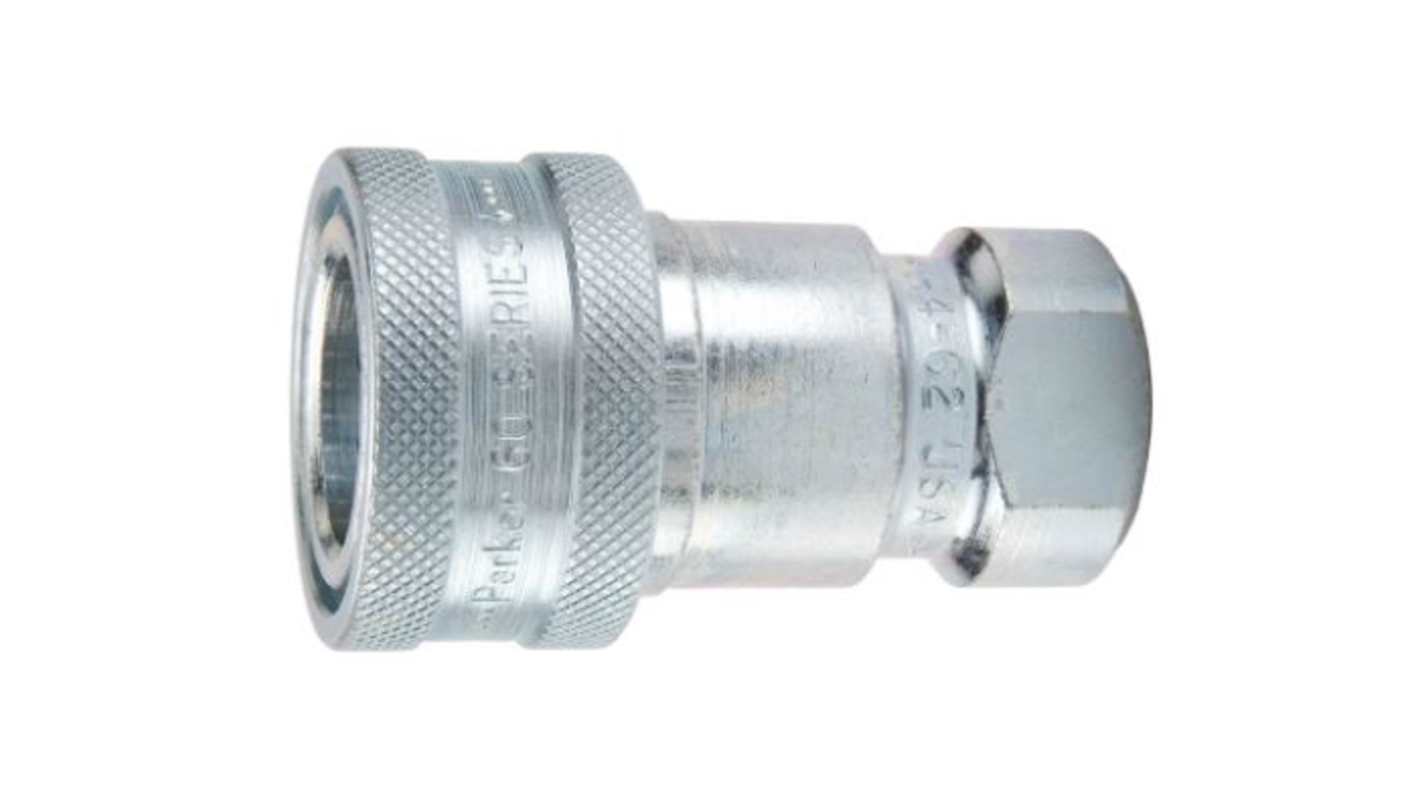

Parker Steel Hydraulic Quick Connect Coupling Female BSP 1 in, 137.9 bar
- RS Stock No.:
- 241-572
- Mfr. Part No.:
- H8-62-BSPP
- Brand:
- Parker
Subtotal (1 unit)*
£284.14
(exc. VAT)
£340.97
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Stock information currently inaccessible - Please check back later
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £284.14 |
*price indicative
- RS Stock No.:
- 241-572
- Mfr. Part No.:
- H8-62-BSPP
- Brand:
- Parker
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Parker | |
| Product Type | Hydraulic Quick Connect Coupling | |
| Thread Size | 1 in | |
| Material | Steel | |
| Series | 60-Steel | |
| Sub Type | General Purpose Coupler | |
| Lock Type | Ball Lock | |
| Finish | Chrome Free Plated Steel, Zinc | |
| Thread Standard | BSP | |
| Minimum Operating Temperature | -40°C | |
| Thread Gender | Female | |
| Maximum Operating Pressure | 137.9 bar | |
| Standards/Approvals | ISO 7241/1 | |
| Maximum Operating Temperature | 121°C | |
| Select all | ||
|---|---|---|
Brand Parker | ||
Product Type Hydraulic Quick Connect Coupling | ||
Thread Size 1 in | ||
Material Steel | ||
Series 60-Steel | ||
Sub Type General Purpose Coupler | ||
Lock Type Ball Lock | ||
Finish Chrome Free Plated Steel, Zinc | ||
Thread Standard BSP | ||
Minimum Operating Temperature -40°C | ||
Thread Gender Female | ||
Maximum Operating Pressure 137.9 bar | ||
Standards/Approvals ISO 7241/1 | ||
Maximum Operating Temperature 121°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
The Parker Steam version couplers are brass with double interface O-rings and stainless steel locking balls. Seal material is Ethylene Propylene and the 3/8" size has a grip-ring sleeve for easy operation when wearing gloves.
Globally interchangeable with other manufacturer's couplings complying to ISO 7241 series B
Multi-purpose coupling, widely used in varied applications
Steel couplers have a hardened sleeve for strength and durability
Metal valve stop prevents flow checking to provide steady performance
