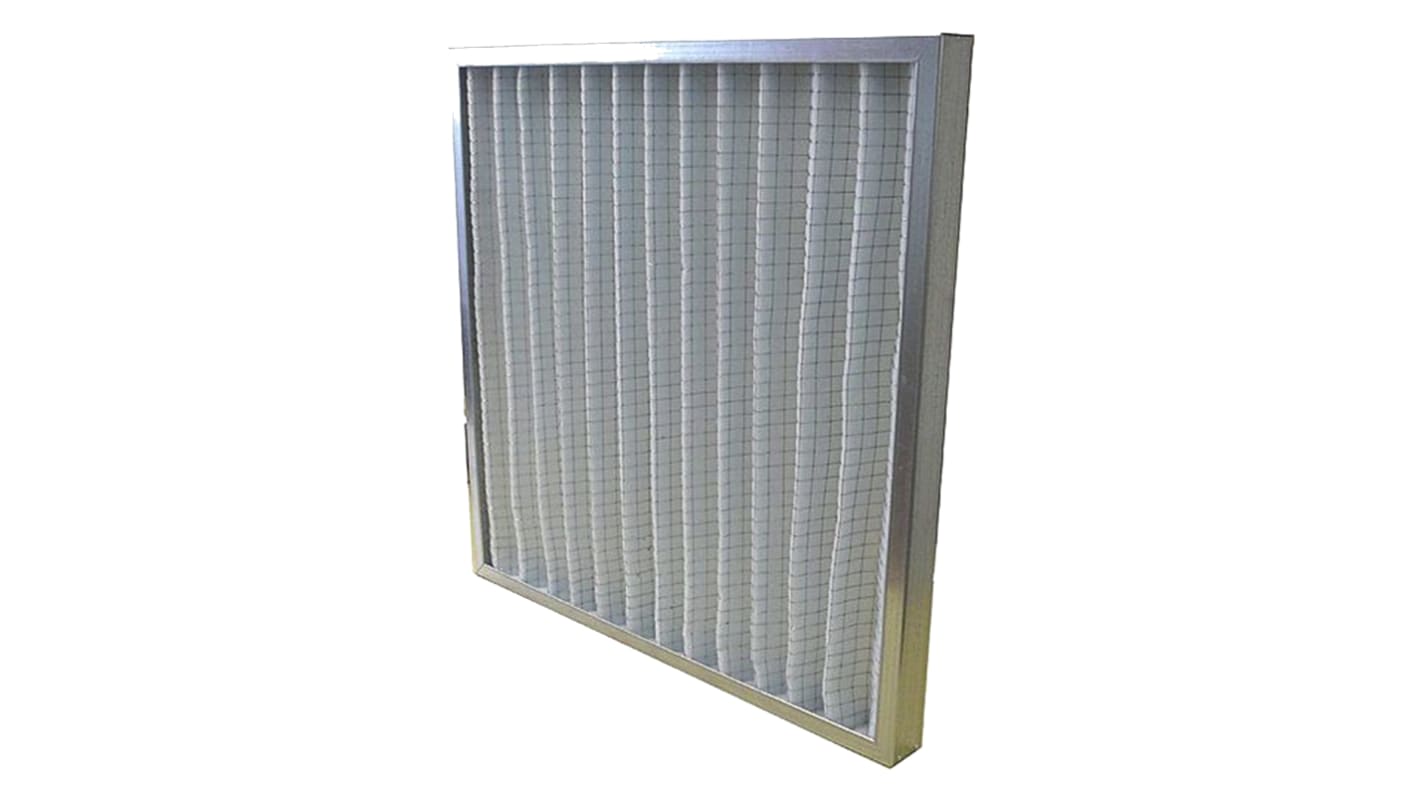

RS PRO PET Pleated Panel Filter, G4 Grade

View all HVAC Air Filters
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
840-0697
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Filter Type

Pleated Panel

Nominal Dimensions

24 x 20 x 2in

Filter Grade

G4

Initial Pressure Drop

65Pa

Final Pressure Drop

250Pa

Case Material

Galvanised Steel

Media Material

PET

Nominal Dimensions Height x Width

24 x 20 in, 24 x 20 x 2 in

Nominal Height

24in

Nominal Depth

2in

Nominal Width

20in

COO (Country of Origin):
GB

RS PLM4-2 Fire Rated Panel Filters with Galvanised Frames


The RS PLM4 pleated panel filters use media which is fire and toxicity rated to the most stringent European test standards.

These panel filters are constructed by sealing a welded mesh backed pleat pack into a galvanised steel frame. This filter utilises deep loft media to ensure long life, low energy consumption and robust service.

100% PET fibre filter media
Thermobonded non-woven
Moisture resistant
Rolled galvanised steel frame
Mitred frame corners
Rolled frame safety edges

Note

For reference when consulting the datasheet:
840-0685 = PLM4-2-2424
840-0694 = PLM4-2-1224
840-0697 = PLM4-2-2024
840-0691 = PLM4-2-1212
840-4703 = PLM4-2-2020

Approvals

DIN 53 438: K1/F1
NF P92-507: M1
NF F16-101: F1
CP413: COMPLIES
