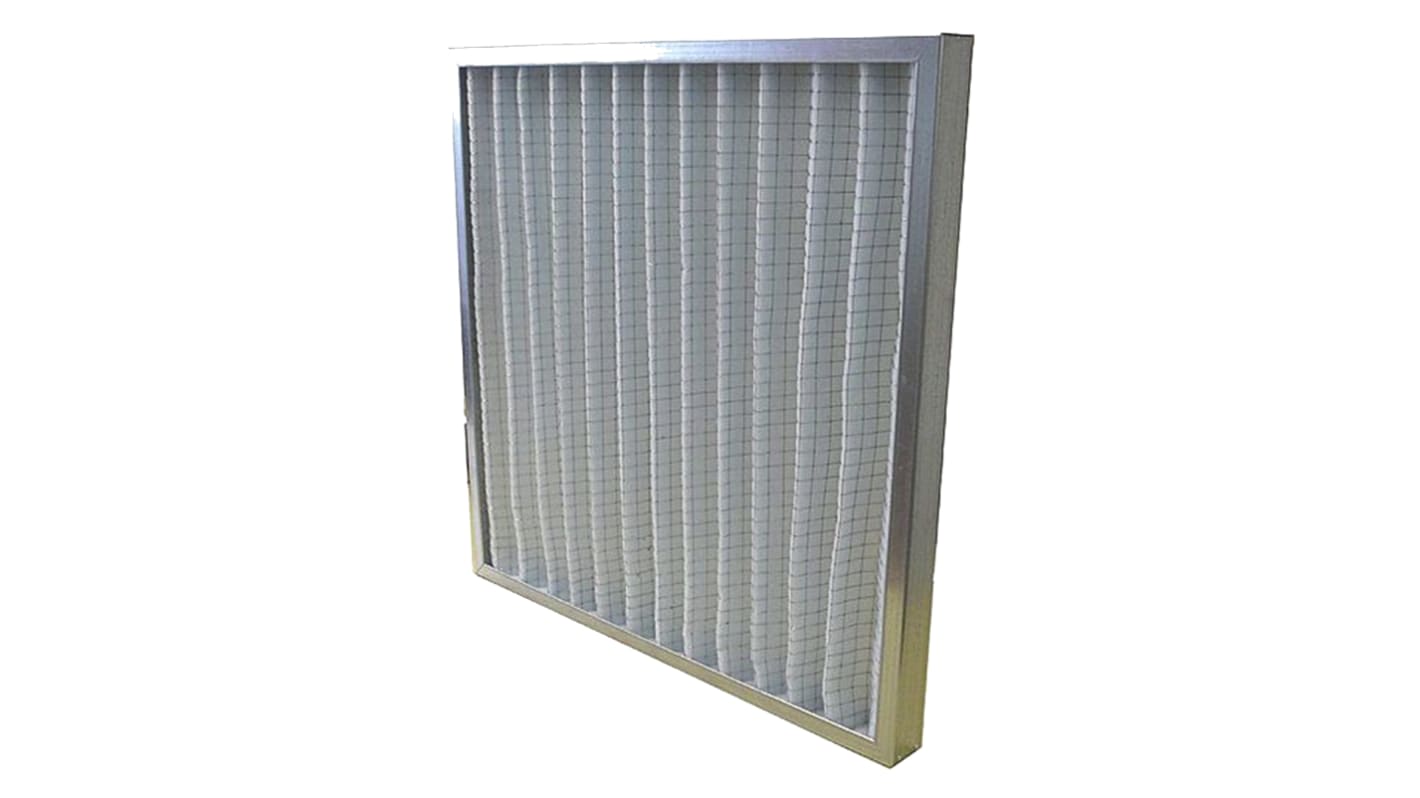

RS PRO PET Pleated Panel Filter, G4 Grade, 287 x 287 x 45mm
- RS Stock No.:
- 840-0691
- Brand:
- RS PRO
Subtotal (1 pack of 6 units)*
£178.98
(exc. VAT)
£214.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
6 + | £29.83 | £178.98 |
*price indicative
- RS Stock No.:
- 840-0691
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Filter Type | Pleated Panel | |
Nominal Dimensions | 12 x 12 x 2in | |
Actual Dimensions | 287 x 287 x 45mm | |
Media Area | 0.17m² | |
ISO 16890 Class | ISO-C-85 | |
Filter Grade | G4 | |
Maximum Air Flow | 800m³/h | |
Initial Pressure Drop | 65Pa | |
Final Pressure Drop | 250Pa | |
Colour | White | |
Case Material | Galvanised Steel | |
Media Material | PET | |
Actual Depth | 45mm | |
Nominal Width | 12in | |
Nominal Height | 12in | |
Nominal Dimensions Height x Width | 12 x 12 in, 12 x 12 x 2 in | |
Actual Height | 287mm | |
Nominal Depth | 2in | |
Actual Width | 287mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Filter Type Pleated Panel | ||
Nominal Dimensions 12 x 12 x 2in | ||
Actual Dimensions 287 x 287 x 45mm | ||
Media Area 0.17m² | ||
ISO 16890 Class ISO-C-85 | ||
Filter Grade G4 | ||
Maximum Air Flow 800m³/h | ||
Initial Pressure Drop 65Pa | ||
Final Pressure Drop 250Pa | ||
Colour White | ||
Case Material Galvanised Steel | ||
Media Material PET | ||
Actual Depth 45mm | ||
Nominal Width 12in | ||
Nominal Height 12in | ||
Nominal Dimensions Height x Width 12 x 12 in, 12 x 12 x 2 in | ||
Actual Height 287mm | ||
Nominal Depth 2in | ||
Actual Width 287mm | ||
- COO (Country of Origin):
- GB
RS PLM4-2 Fire Rated Panel Filters with Galvanised Frames
The RS PLM4 pleated panel filters use media which is fire and toxicity rated to the most stringent European test standards.
These panel filters are constructed by sealing a welded mesh backed pleat pack into a galvanised steel frame. This filter utilises deep loft media to ensure long life, low energy consumption and robust service.
These panel filters are constructed by sealing a welded mesh backed pleat pack into a galvanised steel frame. This filter utilises deep loft media to ensure long life, low energy consumption and robust service.
100% PET fibre filter media
Thermobonded non-woven
Moisture resistant
Rolled galvanised steel frame
Mitred frame corners
Rolled frame safety edges
Thermobonded non-woven
Moisture resistant
Rolled galvanised steel frame
Mitred frame corners
Rolled frame safety edges
Note
Approvals
DIN 53 438: K1/F1
NF P92-507: M1
NF F16-101: F1
CP413: COMPLIES
NF P92-507: M1
NF F16-101: F1
CP413: COMPLIES
