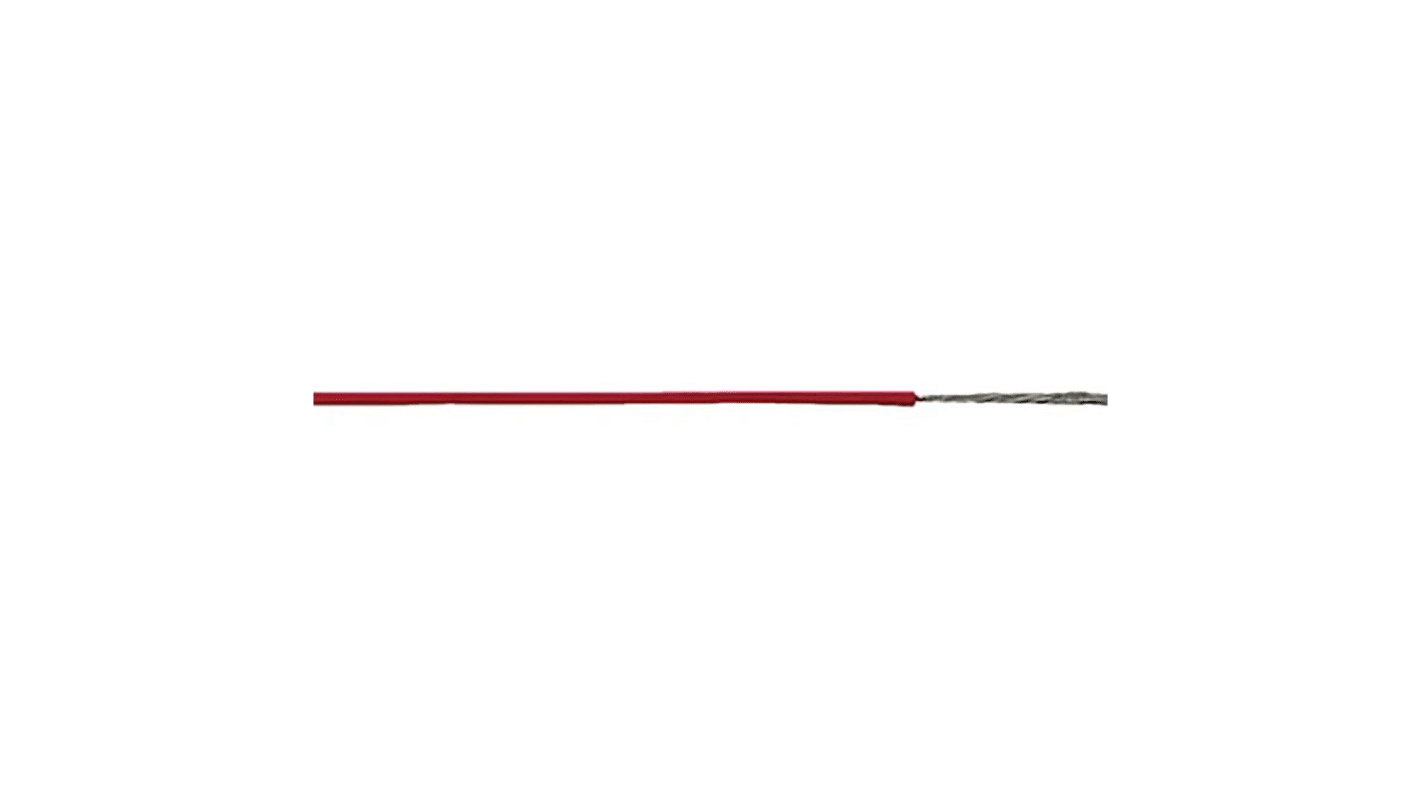

Lapp ÖLFLEX HEAT Series Red 1.5 mm² Hook Up Wire, 19, 100 m, 51104, Silicone
- RS Stock No.:
- 724-4566
- Distrelec Article No.:
- 301-58-414
- Mfr. Part No.:
- 51104
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£99.80
(exc. VAT)
£119.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 4 unit(s) shipping from 30 March 2026
- Plus 7 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £99.80 | £0.998 |
*price indicative
- RS Stock No.:
- 724-4566
- Distrelec Article No.:
- 301-58-414
- Mfr. Part No.:
- 51104
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 1.5 mm² | |
| Jacket Colour | Red | |
| Core Strands | 19 | |
| Cable Length | 100m | |
| Voltage | 300 V | |
| Outside Diameter | 2.8 mm | |
| Maximum Operating Temperature | 180°C | |
| Conductor Material | Copper | |
| Minimum Operating Temperature | -50°C | |
| Sub Type | Silicone Wire | |
| Standards/Approvals | EAC, CE | |
| Jacket Material | Silicone | |
| Fire Behaviour | Flame Retardant, Halogen Free | |
| Series | ÖLFLEX HEAT | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 1.5 mm² | ||
Jacket Colour Red | ||
Core Strands 19 | ||
Cable Length 100m | ||
Voltage 300 V | ||
Outside Diameter 2.8 mm | ||
Maximum Operating Temperature 180°C | ||
Conductor Material Copper | ||
Minimum Operating Temperature -50°C | ||
Sub Type Silicone Wire | ||
Standards/Approvals EAC, CE | ||
Jacket Material Silicone | ||
Fire Behaviour Flame Retardant, Halogen Free | ||
Series ÖLFLEX HEAT | ||
Hazardous Area Certification No | ||
Olflex Heat 180 SiF
From Lapp, the OLFLEX HEAT is a single core cable with excellent temperature resistance. It features a silicone based insulation that makes it ideal for use in high temperature environments where conventional core insulation will brittle.
The cable has a flexible fine-wire conductor, and is halogen free, ensuring it is suitable for a wide range of applications. It also has resistance to oils, fats and chemical substances.
Features and Benefits
• Temperature Resistance
• Cold Resistance
• Resistance to some oils and chemical substances
• Halogen-free according to IEC 60754-1
• Corrosiveness of combustion gases according to IEC 60754-2
• Flame-retardant according IEC 60332-1-2
• Operating Temperature -50 °C to +180 °C (Adequate Ventilation Required)
• Minimum bending radius 6 x cable diameter for fixed applications
Applications
The Lapp OLFLEX HEAT 180 SiF cable is highly versatile, but its temperature resistance makes it particularly suited to;
• HVAC Systems
• Thermal and Heating Elements
• Furnace Construction
• Generator and Transformer Manufacturing
• Lighting Technology
Which wire types are a better choice, stranded or solid?
Both stranded and solid wire have the same resistance properties but stranded wire guarantee an extra flexibility, resistance to bending and are generally easier to install than solid cables.
Note
These are supplied coiled and shrink wrapped NOT on a reel.
