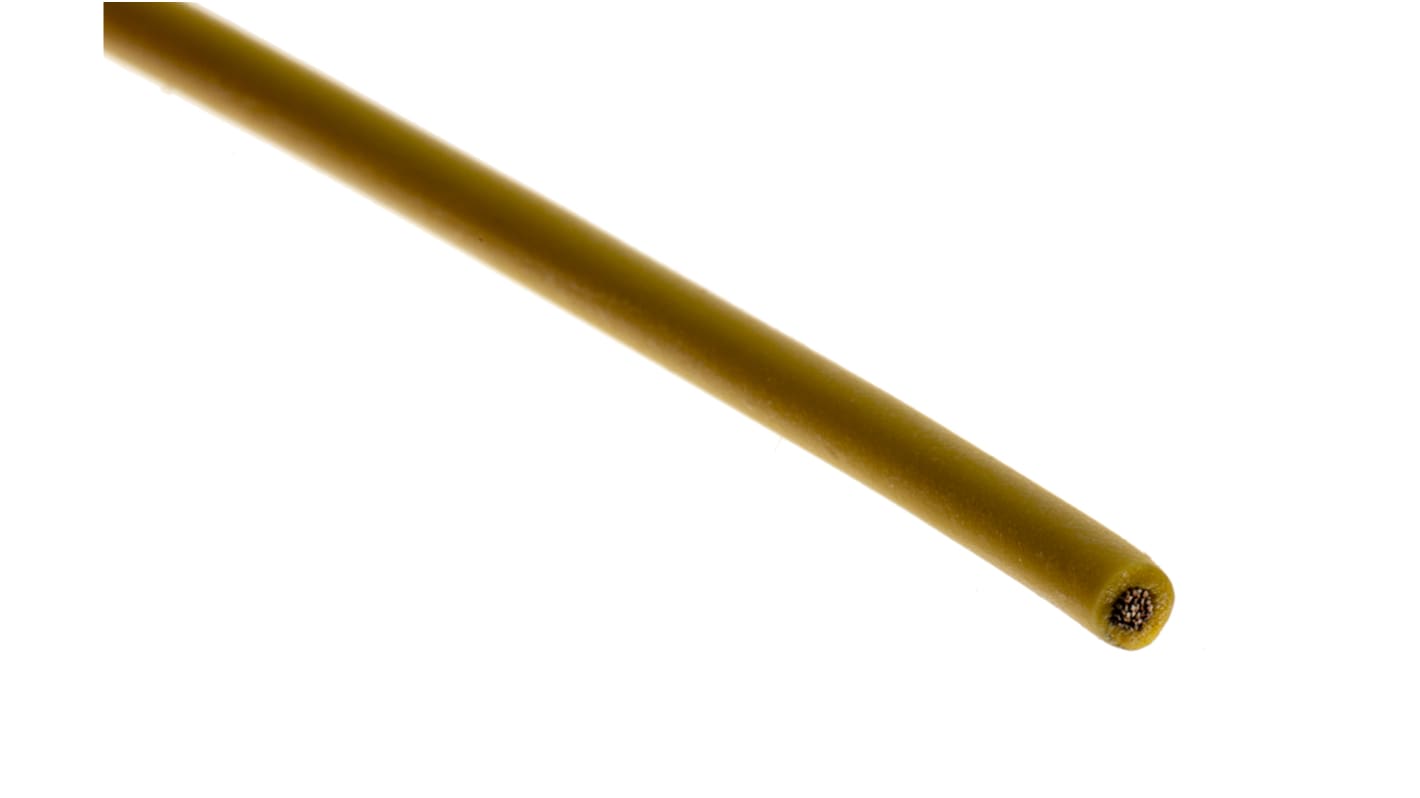

Lapp ÖLFLEX HEAT Series Yellow 1 mm² Hook Up Wire, 17 AWG, 19/0.25 mm, 100m, Silicone Insulation
- RS Stock No.:
- 724-4538
- Mfr. Part No.:
- 50005
- Brand:
- Lapp
11 In stock - FREE next working day delivery available
Added
Price 1 Reel of 100 Metre(s)
£71.39
(exc. VAT)
£85.67
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 24 | £71.39 | £0.714 |
| 25 - 49 | £67.82 | £0.678 |
| 50 + | £64.32 | £0.643 |
| *price indicative | ||
- RS Stock No.:
- 724-4538
- Mfr. Part No.:
- 50005
- Brand:
- Lapp
Technical Reference
Legislation and Compliance
Product Details
Olflex Heat 180 SiF
From Lapp, the OLFLEX HEAT is a single core cable with excellent temperature resistance. It features a silicone based insulation that makes it ideal for use in high temperature environments where conventional core insulation will brittle.
The cable has a flexible fine-wire conductor, and is halogen free, ensuring it is suitable for a wide range of applications. It also has resistance to oils, fats and chemical substances.
Features and Benefits
• Temperature Resistance
• Cold Resistance
• Resistance to some oils and chemical substances
• Halogen-free according to IEC 60754-1
• Corrosiveness of combustion gases according to IEC 60754-2
• Flame-retardant according IEC 60332-1-2
• Operating Temperature -50 °C to +180 °C (Adequate Ventilation Required)
• Minimum bending radius 6 x cable diameter for fixed applications
Applications
The Lapp OLFLEX HEAT 180 SiF cable is highly versatile, but its temperature resistance makes it particularly suited to;
• HVAC Systems
• Thermal and Heating Elements
• Furnace Construction
• Generator and Transformer Manufacturing
• Lighting Technology
Which wire types are a better choice, stranded or solid?
Both stranded and solid wire have the same resistance properties but stranded wire guarantee an extra flexibility, resistance to bending and are generally easier to install than solid cables.
The cable has a flexible fine-wire conductor, and is halogen free, ensuring it is suitable for a wide range of applications. It also has resistance to oils, fats and chemical substances.
Features and Benefits
• Temperature Resistance
• Cold Resistance
• Resistance to some oils and chemical substances
• Halogen-free according to IEC 60754-1
• Corrosiveness of combustion gases according to IEC 60754-2
• Flame-retardant according IEC 60332-1-2
• Operating Temperature -50 °C to +180 °C (Adequate Ventilation Required)
• Minimum bending radius 6 x cable diameter for fixed applications
Applications
The Lapp OLFLEX HEAT 180 SiF cable is highly versatile, but its temperature resistance makes it particularly suited to;
• HVAC Systems
• Thermal and Heating Elements
• Furnace Construction
• Generator and Transformer Manufacturing
• Lighting Technology
Which wire types are a better choice, stranded or solid?
Both stranded and solid wire have the same resistance properties but stranded wire guarantee an extra flexibility, resistance to bending and are generally easier to install than solid cables.
Note
These are supplied coiled and shrink wrapped NOT on a reel.
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 1 mm² |
| Sheath Colour | Yellow |
| American Wire Gauge | 17 AWG |
| Cable Shape | Single Core |
| Core Strands | 19/0.25 mm |
| Length | 100m |
| Insulation Material | Silicone |
| Voltage Rating | 300 V |
| Outer Diameter | 2.5mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +180°C |
| CPR Certification | Eca |
| Conductor Material | Copper |
| Cable Type | High Temperature |
| Series | ÖLFLEX HEAT |
| Shield Type | Unshielded |
| Number of Strands | 1 |
| Resistant To | Chemicals, Oils |
| Size of Strands | 0.25 mm |
