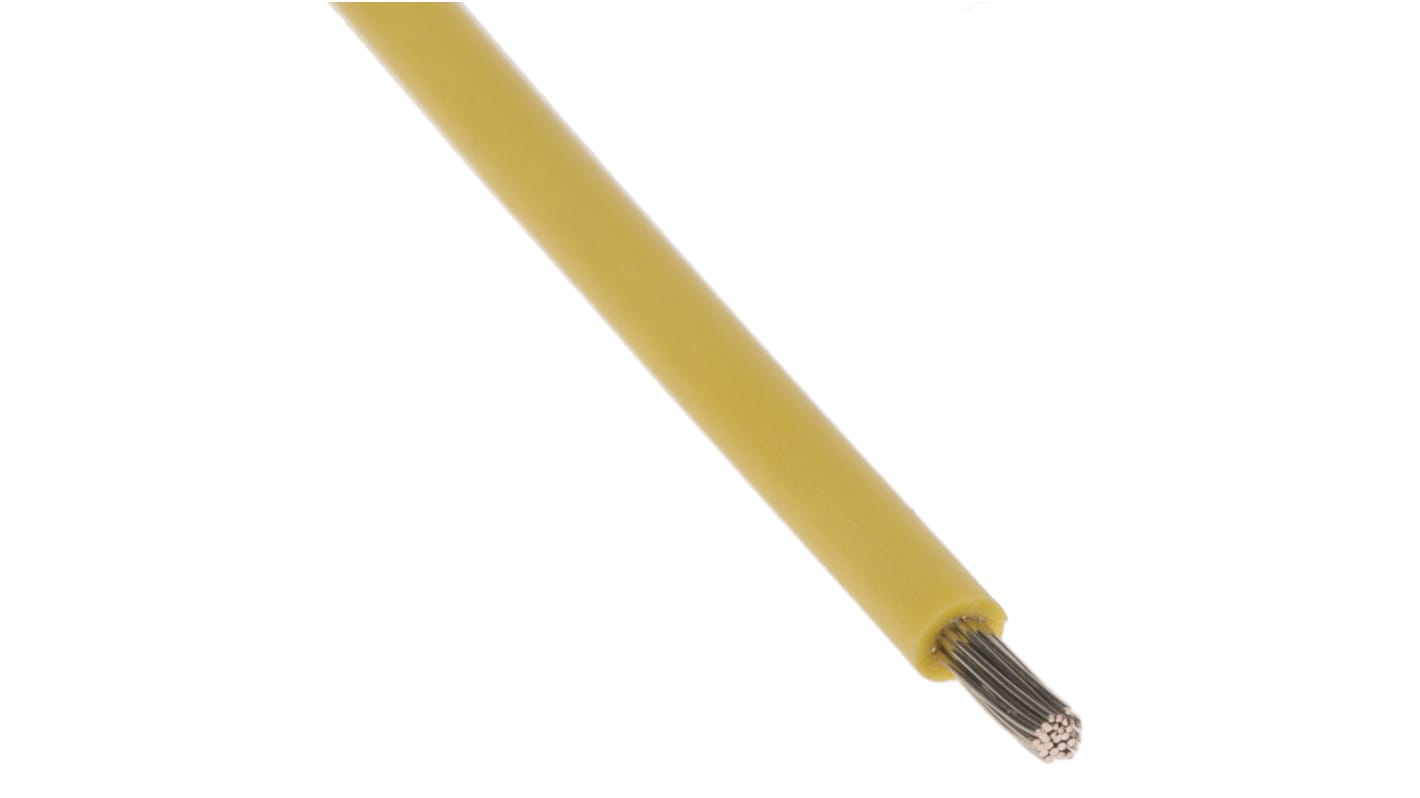

Lapp ÖLFLEX HEAT Series Yellow 1.5 mm² Hook Up Wire, 15 AWG, 19/0.25 mm, 100m, Silicone Insulation, 51005
- RS Stock No.:
- 724-4557
- Mfr. Part No.:
- 51005
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£95.21
(exc. VAT)
£114.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £95.21 | £0.952 |
*price indicative
- RS Stock No.:
- 724-4557
- Mfr. Part No.:
- 51005
- Brand:
- Lapp
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Cross Sectional Area | 1.5 mm² | |
| Sheath Colour | Yellow | |
| American Wire Gauge | 15 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 19/0.25 mm | |
| Length | 100m | |
| Insulation Material | Silicone | |
| Outer Diameter | 2.8mm | |
| Voltage Rating | 300 V | |
| Maximum Operating Temperature | +180°C | |
| CPR Certification | Eca | |
| Minimum Operating Temperature | -50°C | |
| Conductor Material | Copper | |
| Cable Type | High Temperature | |
| Series | ÖLFLEX HEAT | |
| Shield Type | Unshielded | |
| Resistant To | Chemicals, Oils | |
| Size of Strands | 0.25 mm | |
| Number of Strands | 1 | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Cross Sectional Area 1.5 mm² | ||
Sheath Colour Yellow | ||
American Wire Gauge 15 AWG | ||
Cable Shape Single Core | ||
Core Strands 19/0.25 mm | ||
Length 100m | ||
Insulation Material Silicone | ||
Outer Diameter 2.8mm | ||
Voltage Rating 300 V | ||
Maximum Operating Temperature +180°C | ||
CPR Certification Eca | ||
Minimum Operating Temperature -50°C | ||
Conductor Material Copper | ||
Cable Type High Temperature | ||
Series ÖLFLEX HEAT | ||
Shield Type Unshielded | ||
Resistant To Chemicals, Oils | ||
Size of Strands 0.25 mm | ||
Number of Strands 1 | ||
