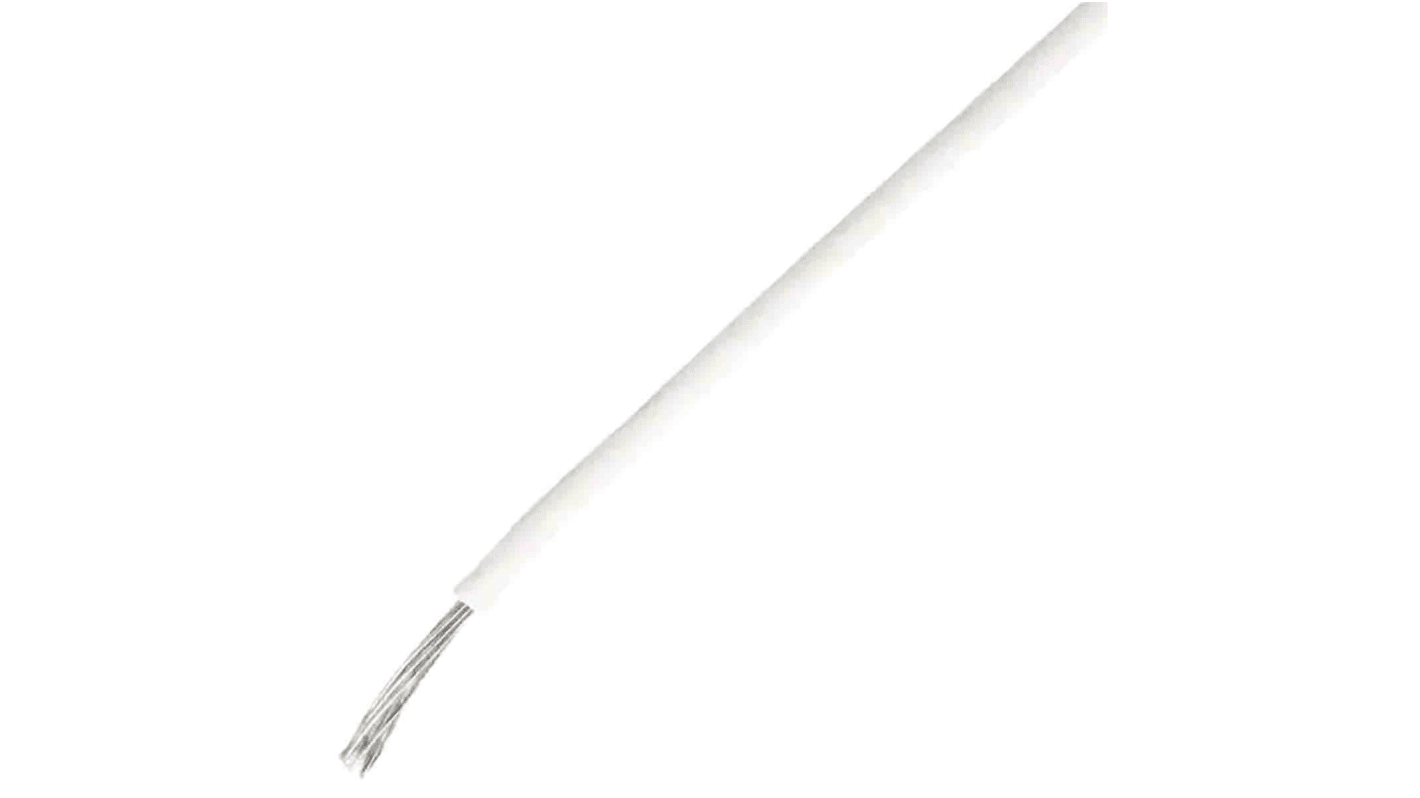

TE Connectivity White 0.2 mm² Harsh Environment Wire, 24 AWG, 19/36, 100m, ETFE Insulation, 55A0111-24-9
- RS Stock No.:
- 329-9477
- Distrelec Article No.:
- 303-99-880
- Mfr. Part No.:
- 55A0111-24-9
- Brand:
- TE Connectivity
Subtotal (1 reel of 100 metres)*
£72.10
(exc. VAT)
£86.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 147 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
- Plus 50 unit(s) shipping from 14 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £72.10 | £0.721 |
*price indicative
- RS Stock No.:
- 329-9477
- Distrelec Article No.:
- 303-99-880
- Mfr. Part No.:
- 55A0111-24-9
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Cross Sectional Area | 0.2 mm² | |
| Sheath Colour | White | |
| Cable Shape | Single Core | |
| American Wire Gauge | 24 AWG | |
| Core Strands | 19/36 | |
| Length | 100m | |
| Insulation Material | ETFE | |
| Outer Diameter | 0.93mm | |
| Voltage Rating | 600 V | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | +150°C | |
| Conductor Material | Tinned Copper | |
| Fire Behaviour | Flame Retardant, Self-extinguishing | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.127mm | |
| Number of Strands | 19 | |
| Resistant To | Chemicals, Electric Arc Tracking, Flame, Fluids | |
| Size of Strands | 36 AWG | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Cross Sectional Area 0.2 mm² | ||
Sheath Colour White | ||
Cable Shape Single Core | ||
American Wire Gauge 24 AWG | ||
Core Strands 19/36 | ||
Length 100m | ||
Insulation Material ETFE | ||
Outer Diameter 0.93mm | ||
Voltage Rating 600 V | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +150°C | ||
Conductor Material Tinned Copper | ||
Fire Behaviour Flame Retardant, Self-extinguishing | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.127mm | ||
Number of Strands 19 | ||
Resistant To Chemicals, Electric Arc Tracking, Flame, Fluids | ||
Size of Strands 36 AWG | ||
