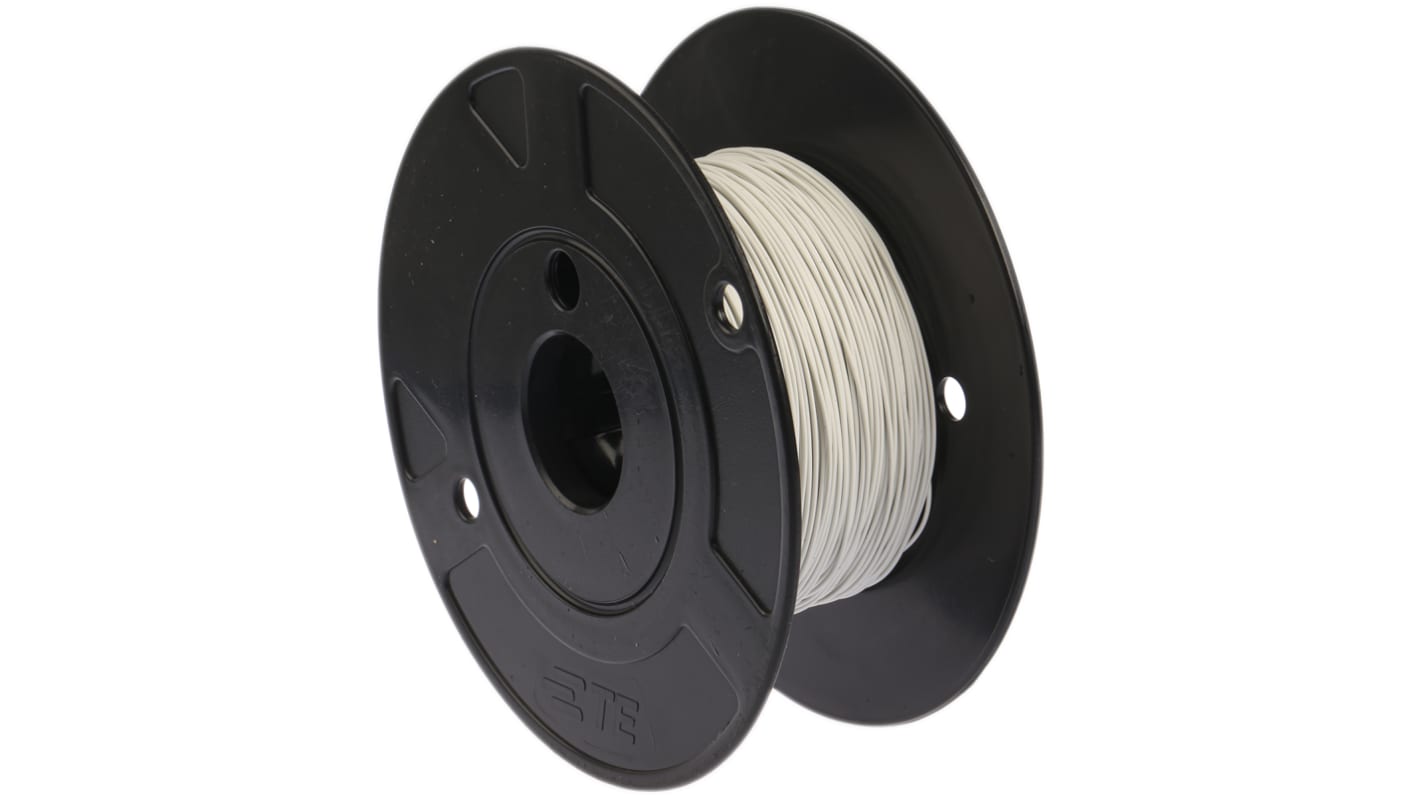

TE Connectivity White 0.38 mm² Harsh Environment Wire, 22 AWG, 19/34, 100m, ETFE Insulation
- RS Stock No.:
- 329-9455
- Mfr. Part No.:
- 55A0111-22-9
- Brand:
- TE Connectivity
33 In stock - FREE next working day delivery available
8 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 100 Metre(s)
£61.55
(exc. VAT)
£73.86
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 14 | £61.55 | £0.616 |
| 15 - 49 | £59.77 | £0.598 |
| 50 + | £58.04 | £0.58 |
| *price indicative | ||
- RS Stock No.:
- 329-9455
- Mfr. Part No.:
- 55A0111-22-9
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Type 55®
Type 55® wire is insulated with modified radiation cross-linked ETFE polymer. The dual wall Airframe construction of type 55® wire is used on numerous aircraft programmes. Also for industrial applications where high temperature rating is required. Dual wall has a 0.25mm total wall thickness & a contrasting core colour (blue) to act as a damage indicator.
Features & Benefits
• Single or dual wall construction
• Small size, ultra lightweight
• Mechanically rugged
• Exceptional resistance to most chemicals & electrical arc tracking
• Excellent shop handling, scrape abrasion & flexibility
• Not susceptible to UV & moisture degradation
• High quality scrape abrasion
• Cut through characteristics
• Single or dual wall construction
• Small size, ultra lightweight
• Mechanically rugged
• Exceptional resistance to most chemicals & electrical arc tracking
• Excellent shop handling, scrape abrasion & flexibility
• Not susceptible to UV & moisture degradation
• High quality scrape abrasion
• Cut through characteristics
Applications:
• Commercial wiring
• Avionics
• Satellites
• Aircraft
• Helicopters
• High performance military systems
• Avionics
• Satellites
• Aircraft
• Helicopters
• High performance military systems
Standards
Defence Standard 61-12 Part 33; VG952 18 Part 20 Type D; Part 21 Type A; Part 23 Type A; Part 1001 and Part 1002; VDE 9426; 9427; 9428; British Standard 3G233; Airbus ABS 0820; 0821; 0822; 0823; 0824; 0824; 0825; 0826
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 0.38 mm² |
| Sheath Colour | White |
| Cable Shape | Single Core |
| American Wire Gauge | 22 AWG |
| Core Strands | 19/34 |
| Length | 100m |
| Insulation Material | ETFE |
| Outer Diameter | 1.09mm |
| Voltage Rating | 600 V |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +150°C |
| Conductor Material | Tinned Copper |
| Fire Behaviour | Flame Retardant, Self-extinguishing |
| Shield Type | Unshielded |
| Insulation Wall Thickness | 0.127mm |
| Resistant To | Chemicals, Electric Arc Tracking, Flame, Fluids |
| Number of Strands | 19 |
| Size of Strands | 34 AWG |
