Staubli FlexiVolt Series Green 0.50 mm² Equipment Wire, 20 AWG, 129 x 70 μm, 70 μm core strands, 100 m, Polyvinyl
- RS Stock No.:
- 285-7870
- Brand:
- Staubli
Subtotal (1 reel of 100 metres)*
£125.21
(exc. VAT)
£150.25
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 14 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £125.21 | £1.252 |
*price indicative
- RS Stock No.:
- 285-7870
- Brand:
- Staubli
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Staubli | |
| Cross Sectional Area | 0.50mm² | |
| Product Type | Equipment Wire | |
| Jacket Colour | Green | |
| American Wire Gauge | 20AWG | |
| Core Strands | 129 x 70 μm | |
| Cable Length | 100m | |
| Voltage | 500V | |
| Outside Diameter | 2.1mm | |
| Maximum Operating Temperature | 70°C | |
| Conductor Material | Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Standards/Approvals | RoHS Compliant | |
| Sub Type | Unscreened | |
| Cable Type | Stranded | |
| Minimum Operating Temperature | -10°C | |
| Fire Behaviour | CPR, Flame Resistant, Flame Retardant, Low Smoke Halogen Free | |
| Series | FlexiVolt | |
| Size of Strands | 70μm | |
| Number of Strands | 129 | |
| Select all | ||
|---|---|---|
Brand Staubli | ||
Cross Sectional Area 0.50mm² | ||
Product Type Equipment Wire | ||
Jacket Colour Green | ||
American Wire Gauge 20AWG | ||
Core Strands 129 x 70 μm | ||
Cable Length 100m | ||
Voltage 500V | ||
Outside Diameter 2.1mm | ||
Maximum Operating Temperature 70°C | ||
Conductor Material Copper | ||
Jacket Material Polyvinyl Chloride | ||
Standards/Approvals RoHS Compliant | ||
Sub Type Unscreened | ||
Cable Type Stranded | ||
Minimum Operating Temperature -10°C | ||
Fire Behaviour CPR, Flame Resistant, Flame Retardant, Low Smoke Halogen Free | ||
Series FlexiVolt | ||
Size of Strands 70μm | ||
Number of Strands 129 | ||
- COO (Country of Origin):
- DE

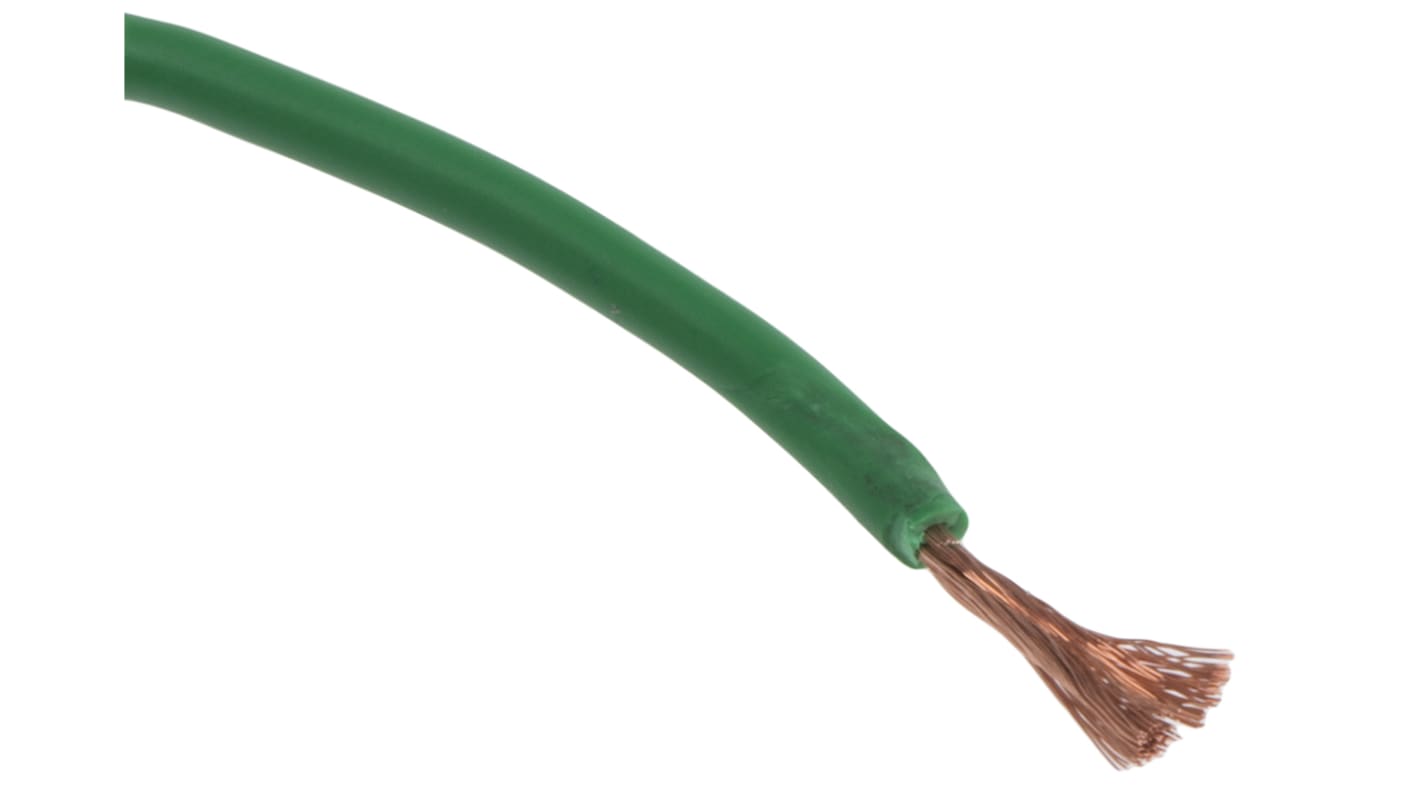

Staubli FlexiVolt Series Equipment Wire, 0.50mm² Cross‑Sectional Area, 500V Voltage - 60.7004-100-25
This equipment wire is a stranded copper conductor intended for electrical interconnection and control applications where flexibility and defined safety performance are required. It features a green PVC outer sheath and is suitable for use across a moderate temperature range in installations that demand reduced‑hazard fire behaviour.
Features and Benefits:
• 129/0.07 strand count provides high flexibility for frequent movement
• 500 V rating enables use in low‑voltage control and instrumentation circuits
• Polyvinyl chloride jacket offers mechanical protection and insulation
• Halogen‑free low‑smoke flame‑retardant behaviour reduces toxic emissions
• Rated for operation between −10 °C and 70 °C for varied environments
• 500 V rating enables use in low‑voltage control and instrumentation circuits
• Polyvinyl chloride jacket offers mechanical protection and insulation
• Halogen‑free low‑smoke flame‑retardant behaviour reduces toxic emissions
• Rated for operation between −10 °C and 70 °C for varied environments
Applications
• Suitable for internal control wiring in machinery panels
• Ideal for flexible instrument connections in automation systems
• Used for routing in confined cable ducts and conduits
• Can be used for low‑voltage appliance interconnections
• Suitable for on‑site wiring runs requiring green identification
• Ideal for flexible instrument connections in automation systems
• Used for routing in confined cable ducts and conduits
• Can be used for low‑voltage appliance interconnections
• Suitable for on‑site wiring runs requiring green identification
What is the construction of the conductor?
The conductor comprises 129 strands of 0.07 mm copper for a 0.50 mm² cross section.
What fire‑performance characteristics does it exhibit?
It demonstrates CPR‑compliant behaviour with flame resistance and low‑smoke halogen‑free properties.
How long is each reel and how does that affect installation?
Each cable is supplied in 100 m lengths, reducing joint points for continuous runs.
What insulation material surrounds the conductor?
The conductor is insulated and sheathed in polyvinyl chloride with a green outer jacket.
