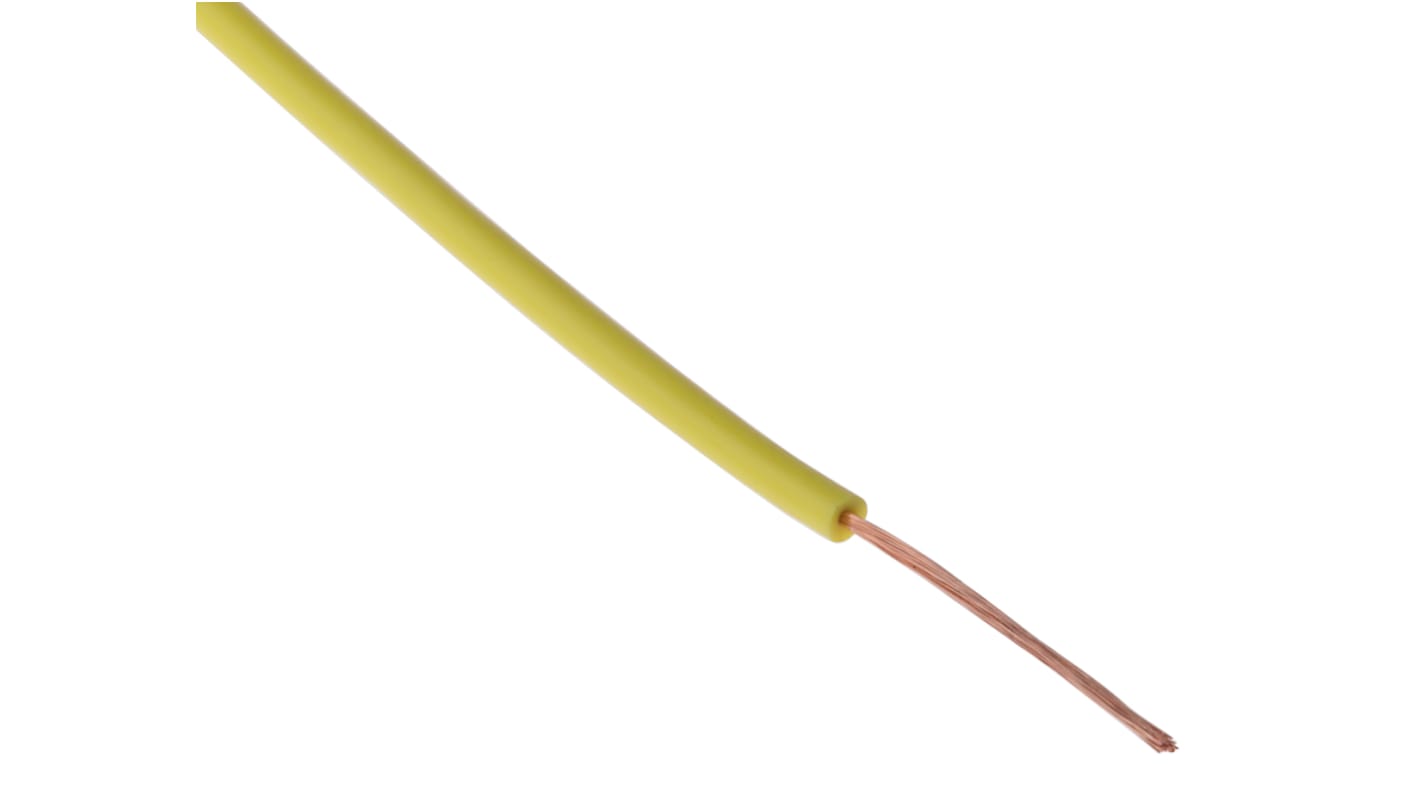

Staubli Yellow 0.15 mm² Equipment Wire, 26 AWG, 39/0.07 mm, 100m, PVC Insulation

RS Stock No.:: 285-7741
Brand:: Staubli

Staubli Yellow 0.15 mm² Equipment Wire, 26 AWG, 39/0.07 mm, 100m, PVC Insulation

Subtotal (1 reel of 100 metres)*

£48.63

(exc. VAT)

£58.36

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship
Plus 7 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£48.63	£0.486

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Staubli Yellow 0.1 mm² Equipment Wire, 27 AWG, 26/0.07 mm, 100m, PVC Insulation

RS Stock No.: 285-7690

1 Reel of 100 Metre(s)

£44.49

(exc. VAT)

£53.39

(inc. VAT)

RS Stock No.:: 285-7741
Brand:: Staubli

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Staubli
	Cross Sectional Area	0.15 mm²
	Sheath Colour	Yellow
	Cable Shape	Single Core
	American Wire Gauge	26 AWG
	Core Strands	39/0.07 mm
	Length	100m
	Insulation Material	PVC
	Outer Diameter	1.5mm
	Voltage Rating	500 V
	Maximum Operating Temperature	+70°C
	Minimum Operating Temperature	-10°C
	Conductor Material	Copper
	Standards Met	RoHS Compliant
	Shield Type	Unshielded
	Insulation Wall Thickness	0.5mm
	Size of Strands	0.07 mm
	Number of Strands	39

	Select all
	Brand Staubli
	Cross Sectional Area 0.15 mm²
	Sheath Colour Yellow
	Cable Shape Single Core
	American Wire Gauge 26 AWG
	Core Strands 39/0.07 mm
	Length 100m
	Insulation Material PVC
	Outer Diameter 1.5mm
	Voltage Rating 500 V
	Maximum Operating Temperature +70°C
	Minimum Operating Temperature -10°C
	Conductor Material Copper
	Standards Met RoHS Compliant
	Shield Type Unshielded
	Insulation Wall Thickness 0.5mm
	Size of Strands 0.07 mm
	Number of Strands 39

Staubli Hook Up Wire - 100 m Length

Brought to you by Staubli, a range of hook up wire. Suitable for electrical power, lighting and internal wiring applications. All of the standard equipment wire within this range is 100 m in length and with a variety of sheath colours to choose from, they are suitable for various applications. Due to robust and carefully manufactured copper conductor, all models are highly reliable and excellent quality.

Features and Benefits

• PVC sheath material for insulation
• Various colours to choose from, including red, blue and green
• Sizes range from 0.5 mm² CSA/27 AWG up to 2.5 mm² CSA/20 AWG
• Variety of conductors, including - BS6004, Class 5 and Plain annealed
• Supplied on a 100 m reel

What is hook up wire?

Hook up wire, or copper wire/equipment wire as it's also called is primarily used for low voltage and current applications. Copper strands are sheathed by a cover (usually PVC) and act as the conductor of electricity to power its target. Frequently found within everyday household and workplace appliances, hook up wire is a common occurrence. If a device has multiple wires to operate, hook up wire will usually be installed with different sheath colours on their respective terminals. This is to avoid the confusion of a "spaghetti junction" of wires.

What is hook up wire used for?

This equipment wire can be applied to endless applications. These can range from domestic household appliances, industrial equipment and factory machine. Due to the reliability of the copper conductors, these types of wires are usually the preferred choice with any internal wiring system. As an example, these are some common places you would find equipment wire:

• Circuit boards
• Computer internals
• Mobile phones and other battery operated devices
• Vehicle lights

Benefits of a copper conductor

Copper is the go to metal for nearly all cable. Due to the excellent conduction of electricity it provides. Circuit boards, telephone lines, power cables (including multicore) all use copper as the solid interior of their wire. There are different variations of copper available, such as:

• Tinned copper
• Annealed copper
• Nickel plated copper
