Teledyne PCB Mount RF Relay, 5V dc Coil, DPDT

View all HF & RF Relays
Bulk discount available

Subtotal (1 unit)*

£71.63

(exc. VAT)

£85.96

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 22 unit(s) shipping from 22 October 2025
  • Plus 36 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£71.63
5 - 9£69.64
10 - 24£67.76
25 - 49£65.97
50 +£64.28

*price indicative

RS Stock No.:
758-2436
Mfr. Part No.:
172D-5
Brand:
Teledyne
Find similar products by selecting one or more attributes.
Select all

Brand

Teledyne

Coil Resistance

64Ω

Relay Type

RF Relay

Contact Resistance

150 mΩ

Contact Configuration

DPDT

Coil Voltage

5V dc

Mounting Type

PCB Mount

Contact Voltage

28V dc

Coil Power

405mW

Contact Material

Gold Plated

Relay Switching Classification

General Purpose Relay

Length

8.51mm

Life

5000000Cycles

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+85°C

Height

7.11mm

Operating Temperature Range

-55 → +85°C

Dimensions

8.51 x 8.51 x 7.11mm

Switching Voltage

28V dc

Terminal Type

Through Hole

Depth

8.51mm

Operating Time Including Bounce

6ms

Teledyne RF Relay

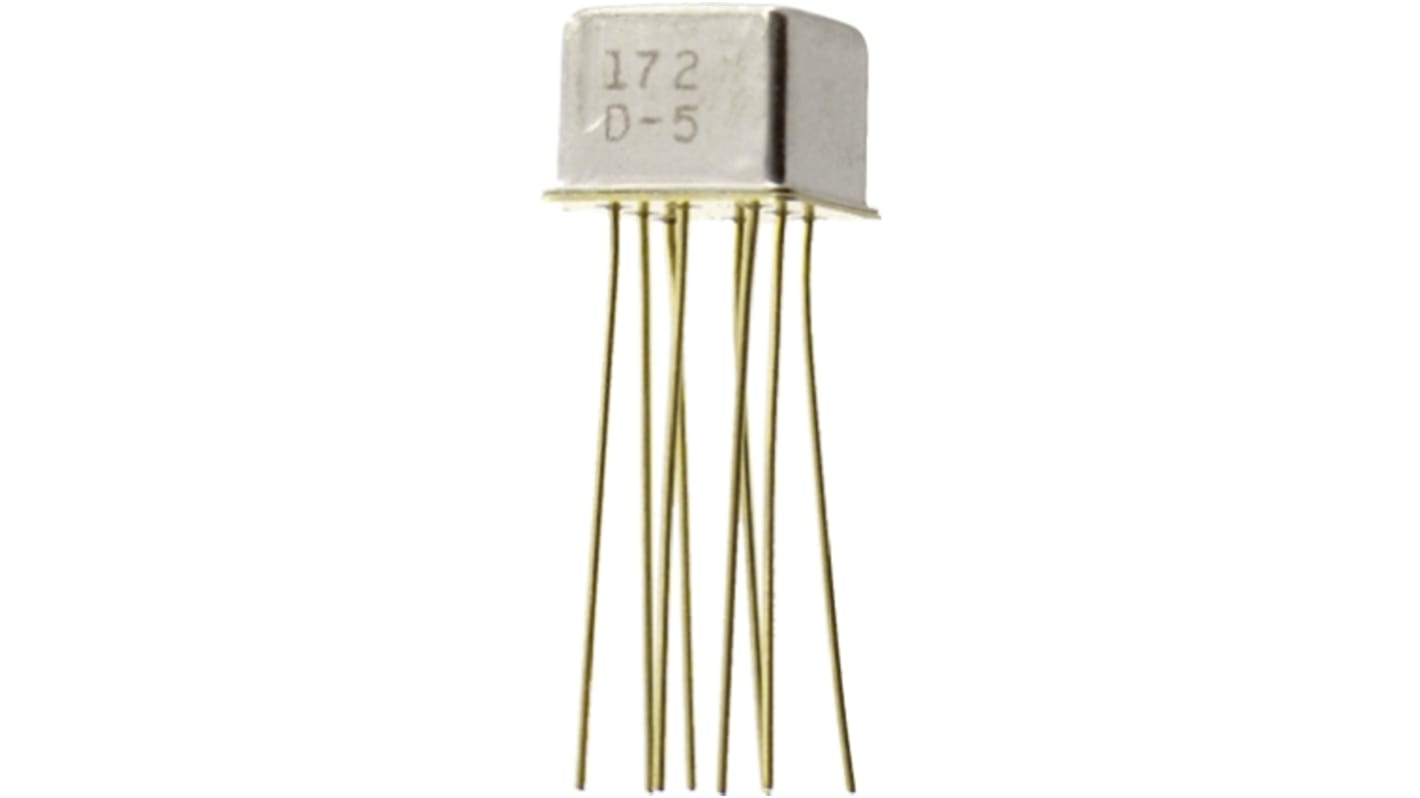

The Teledyne Centigrid® RF relay is an ultra-miniature, hermetically sealed and DPDT armature device. It has a coil voltage rating of 5VDC. It has a low profile height and grid spaced terminals that prevent the need for spreader pads and make them suitable for use when close PCB spacing is required. The series 172 relay has an internal discrete silicon diode for coil transient suppression.

Features and Benefits


Advanced cleaning techniques provide maximum assurance of internal cleanliness
All welded construction
Coil resistance is 64ohm
Maximum DC voltage rating is 5.8VDC
High force/mass ratios for resistance to shock and vibration
Low insertion loss - isolation and intercontact capacitance of 0.4pF
Excellent switching performance from DC to 2GHz
Precious metal alloy contact material with gold plating ensures excellent high current and dry circuit switching capabilities
Unique uni-frame design provides high magnetic efficiency and mechanical rigidity
Operating temperature ranges between -55°C and 85°C

Applications


Attenuators
Mobile communication
Telecommunication
Test instruments
