Teledyne PCB Mount RF Relay, 5V dc Coil, 50Ω Impedance, DPDT

View all HF & RF Relays

Subtotal (1 unit)*

£57.41

(exc. VAT)

£68.89

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 63 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£57.41

*price indicative

RS Stock No.:
399-9436
Mfr. Part No.:
RF300-5
Brand:
Teledyne
Find similar products by selecting one or more attributes.
Select all

Brand

Teledyne

Relay Type

RF Relay

Coil Resistance

50Ω

Contact Resistance

150 mΩ

Impedance

50Ω

Contact Configuration

DPDT

Coil Voltage

5V dc

Mounting Type

PCB Mount

Contact Voltage

5V dc

Coil Power

450mW

Contact Material

Gold Plated

Minimum Operating Temperature

-55°C

Terminal Type

Through Hole

Height

6.99mm

Maximum Operating Temperature

+85°C

Switching Voltage

28V dc

Operating Temperature Range

-55 → +85°C

Life

10000000Cycles

Length

9.4mm

Depth

9.4mm

Operating Time Including Bounce

4ms

Dimensions

9.4(Dia.) x 6.99mm

Diameter

9.4mm

Relay Switching Classification

General Purpose Relay

COO (Country of Origin):
US

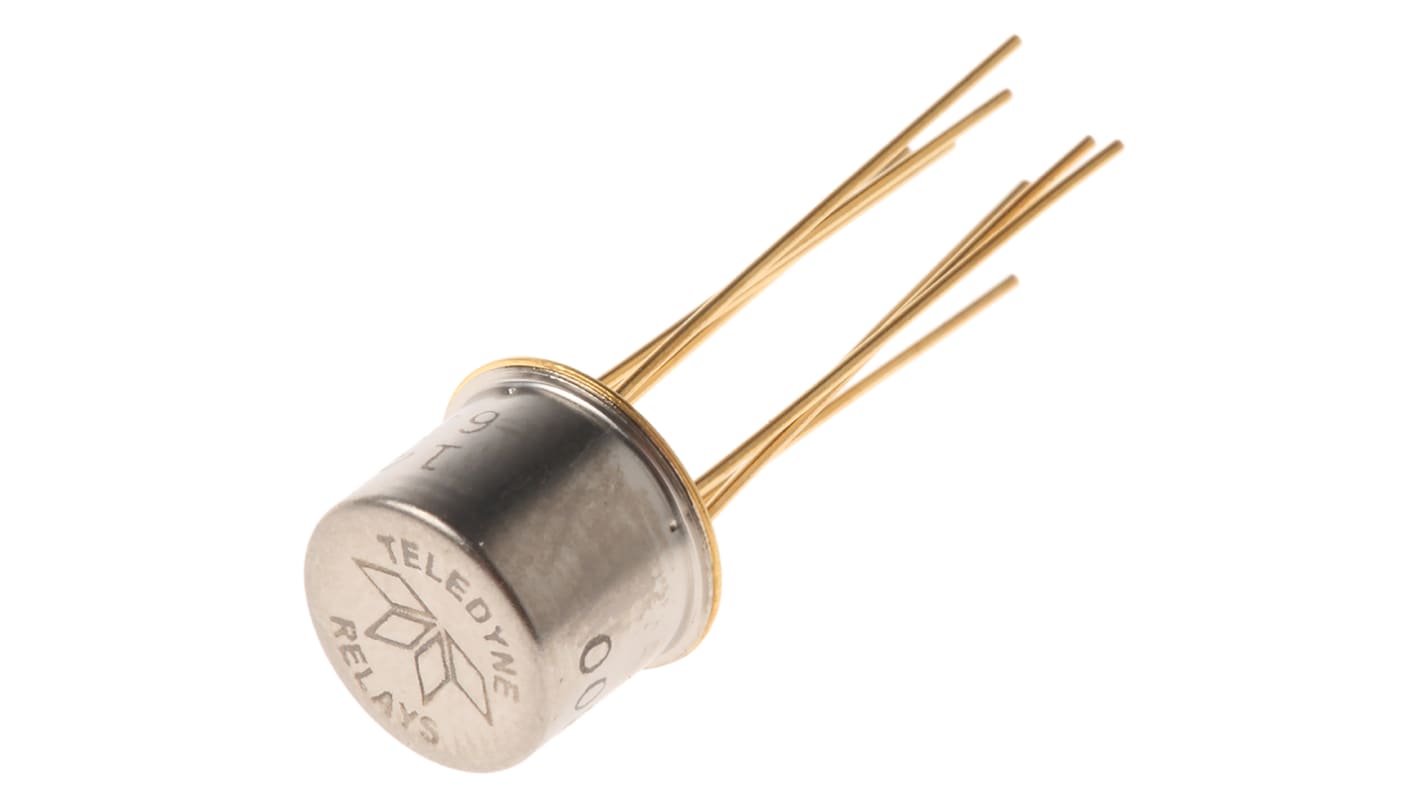

Teledyne DPDT RF Relay


The Teledyne DPDT repeatable PCB mount RF relay is actuated with 5VDC coil voltage. This ultra-miniature relay is hermetically sealed and designed to provide improved RF signal repeatability over the frequency range with excellent signal integrity up to 10Gbps. It has a unique ground shield that isolates and shields each lead to ensure excellent contact-to-contact and pole-to-pole isolation. This ground shield provides a ground interface that results in improved high-frequency performance as well as parametric repeatability.
Note:
RF300 and RF303 are through-hole mount, GRF303 is a surface mount TO-5 relay

Features and Benefits


Coil resistance is 50ohm
Dimensions are 9.4mm x 9.4mm x 6.99mm
Excellent resistance to shock and vibration
Gold-plated metal alloy contacts
High isolation between control and signal paths
Metal enclosure for EMI shielding with high resistance to ESD
Operating temperature ranging between -55°C and 85°C
Uniframe design provides high magnetic efficiency and mechanical rigidity

Applications


RF attenuator switching
Wireless LAN

Certifications


ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
