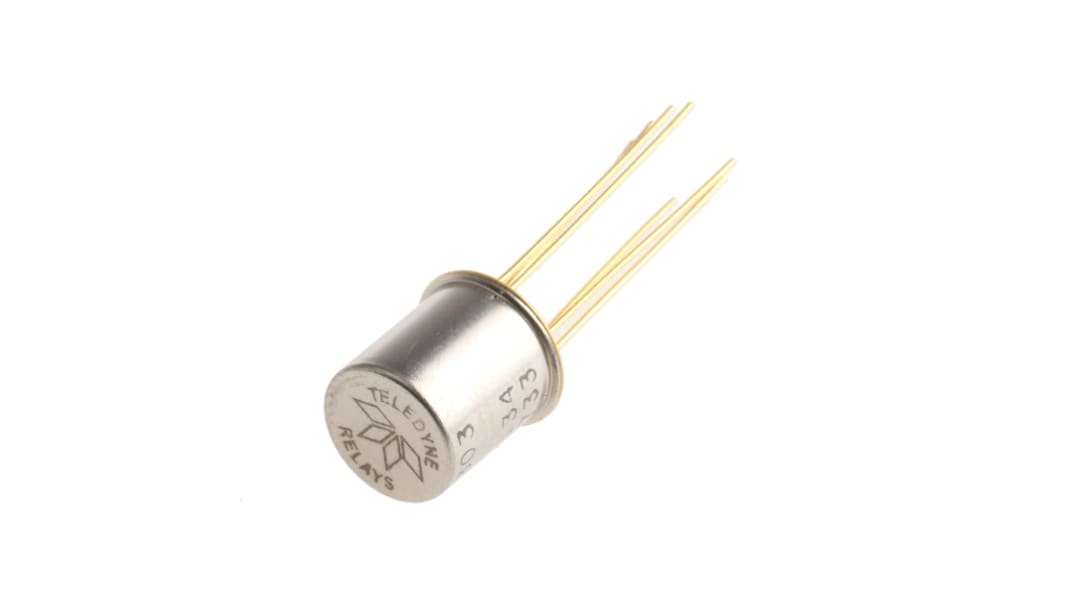

Teledyne PCB Mount RF Relay, 5V dc Coil, 3GHz Max. Coil Freq., DPDT
- RS Stock No.:
- 758-2521
- Mfr. Part No.:
- RF303-5
- Brand:
- Teledyne
Bulk discount available
Subtotal (1 unit)*
£96.45
(exc. VAT)
£115.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 550 unit(s) shipping from 05 December 2025
- Plus 123 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £96.45 |
| 5 - 9 | £91.62 |
| 10 - 24 | £86.90 |
| 25 - 49 | £83.13 |
| 50 + | £80.34 |
*price indicative
- RS Stock No.:
- 758-2521
- Mfr. Part No.:
- RF303-5
- Brand:
- Teledyne
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Teledyne | |
| Maximum Coil Frequency | 3GHz | |
| Relay Type | RF Relay | |
| Coil Resistance | 100Ω | |
| Contact Resistance | 100 mΩ | |
| Contact Configuration | DPDT | |
| Coil Voltage | 5V dc | |
| Mounting Type | PCB Mount | |
| Contact Voltage | 28V dc | |
| Coil Power | 200mW | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +85°C | |
| Operating Temperature Range | -55 → +85°C | |
| Dimensions | 9.4(Dia.) x 9.78mm | |
| Diameter | 9.4mm | |
| Operating Time Including Bounce | 6ms | |
| Life | 10000000Cycles | |
| Height | 9.78mm | |
Select all | ||
|---|---|---|
Brand Teledyne | ||
Maximum Coil Frequency 3GHz | ||
Relay Type RF Relay | ||
Coil Resistance 100Ω | ||
Contact Resistance 100 mΩ | ||
Contact Configuration DPDT | ||
Coil Voltage 5V dc | ||
Mounting Type PCB Mount | ||
Contact Voltage 28V dc | ||
Coil Power 200mW | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range -55 → +85°C | ||
Dimensions 9.4(Dia.) x 9.78mm | ||
Diameter 9.4mm | ||
Operating Time Including Bounce 6ms | ||
Life 10000000Cycles | ||
Height 9.78mm | ||
- COO (Country of Origin):
- US
Teledyne PCB RF Relay
The Teledyne DPDT sensitive repeatable PCB mount RF relay is actuated with 28VDC coil voltage at a frequency of 3GHz. This ultra-miniature relay is hermetically sealed and designed to provide improved RF signal repeatability over the frequency range with excellent signal integrity up to 10Gbps. It has a unique ground shield that isolates and shields each lead to ensure excellent contact-to-contact and pole-to-pole isolation. This ground shield provides a ground interface that results in improved high-frequency performance as well as parametric repeatability.
Note:
RF300 and RF303 are through-hole mount, GRF303 is a surface mount TO-5 relay
Note:
RF300 and RF303 are through-hole mount, GRF303 is a surface mount TO-5 relay
Features and Benefits
Coil resistance is 100ohm
Dimensions are 9.4mm x 9.78mm
Excellent resistance to shock and vibration
Gold-plated contacts
High isolation between control and signal paths
Metal enclosure for EMI shielding with high resistance to ESD
Operating temperature ranging between -55°C and 85°C
Uniframe design provides high magnetic efficiency and mechanical rigidity
Dimensions are 9.4mm x 9.78mm
Excellent resistance to shock and vibration
Gold-plated contacts
High isolation between control and signal paths
Metal enclosure for EMI shielding with high resistance to ESD
Operating temperature ranging between -55°C and 85°C
Uniframe design provides high magnetic efficiency and mechanical rigidity
Applications
RF attenuator switching
Wireless LAN
Wireless LAN
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
