HARTING Heavy Duty Power Connector Insert, Han A Series Male, 8 Contacts
- RS Stock No.:
- 175-1225
- Mfr. Part No.:
- 09451001560
- Brand:
- HARTING
Subtotal (1 unit)*
£16.01
(exc. VAT)
£19.21
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 17 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £16.01 |
*price indicative
- RS Stock No.:
- 175-1225
- Mfr. Part No.:
- 09451001560
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Product Type | Heavy Duty Power Connector Insert | |
| Series | Han A | |
| Sub Type | Connector Insert | |
| Connector Gender | Male | |
| For Use With | Heavy Duty Power Connector | |
| Pole Format | 8 | |
| Number of Rows | 1 | |
| Mount Type | Cable | |
| IP Rating | IP65, IP67 | |
| Standards/Approvals | No | |
| Manufacturer Size Code | 3A | |
| Number of Contacts | 8 | |
| Orientation | Straight | |
| Maximum Wire Size mm² | 0.32mm² | |
| Minimum Wire Size mm² | 0.1mm² | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Product Type Heavy Duty Power Connector Insert | ||
Series Han A | ||
Sub Type Connector Insert | ||
Connector Gender Male | ||
For Use With Heavy Duty Power Connector | ||
Pole Format 8 | ||
Number of Rows 1 | ||
Mount Type Cable | ||
IP Rating IP65, IP67 | ||
Standards/Approvals No | ||
Manufacturer Size Code 3A | ||
Number of Contacts 8 | ||
Orientation Straight | ||
Maximum Wire Size mm² 0.32mm² | ||
Minimum Wire Size mm² 0.1mm² | ||

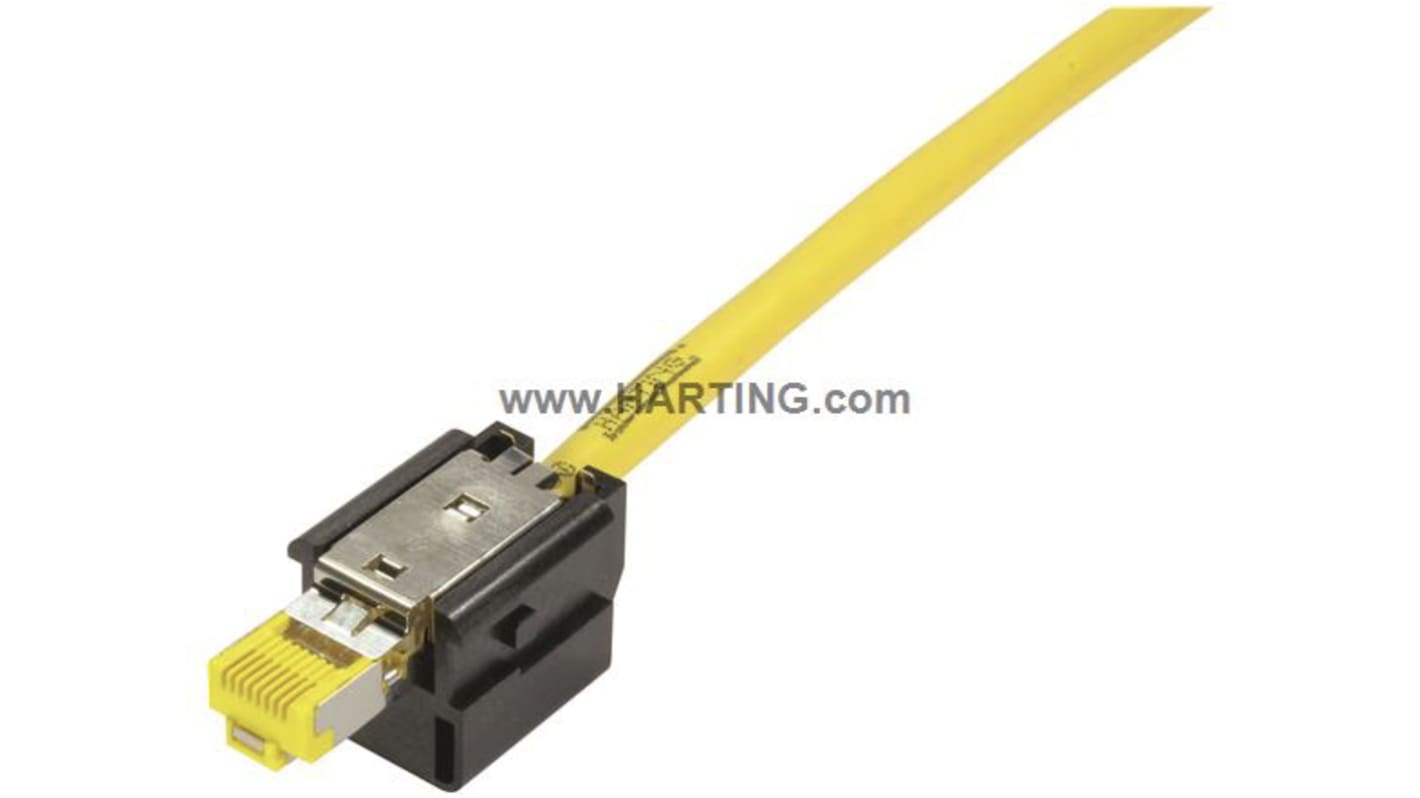

HARTING Connector
The HARTING Han A series black coloured 8-pole 8-way male connector has polycarbonate as housing material. The contact material for this connector is a copper alloy.
Features and Benefits
• Category of transmission Cat. 5
• Compact design and robust housing
• Minimum 500 mating cycles
• Operating temperature ranges between -40°C and 70°C
• PROFINET compatible
• RJ45 Ethernet Data connector
• Suitable for termination of solid and stranded cables
• Tool-less field assembly with HARAX rapid termination in IDC technology
• Up to 10x reconductable
Applications
• Industries
Certifications
• IP65 rated
• IP67 rated
• UL 94 V0
