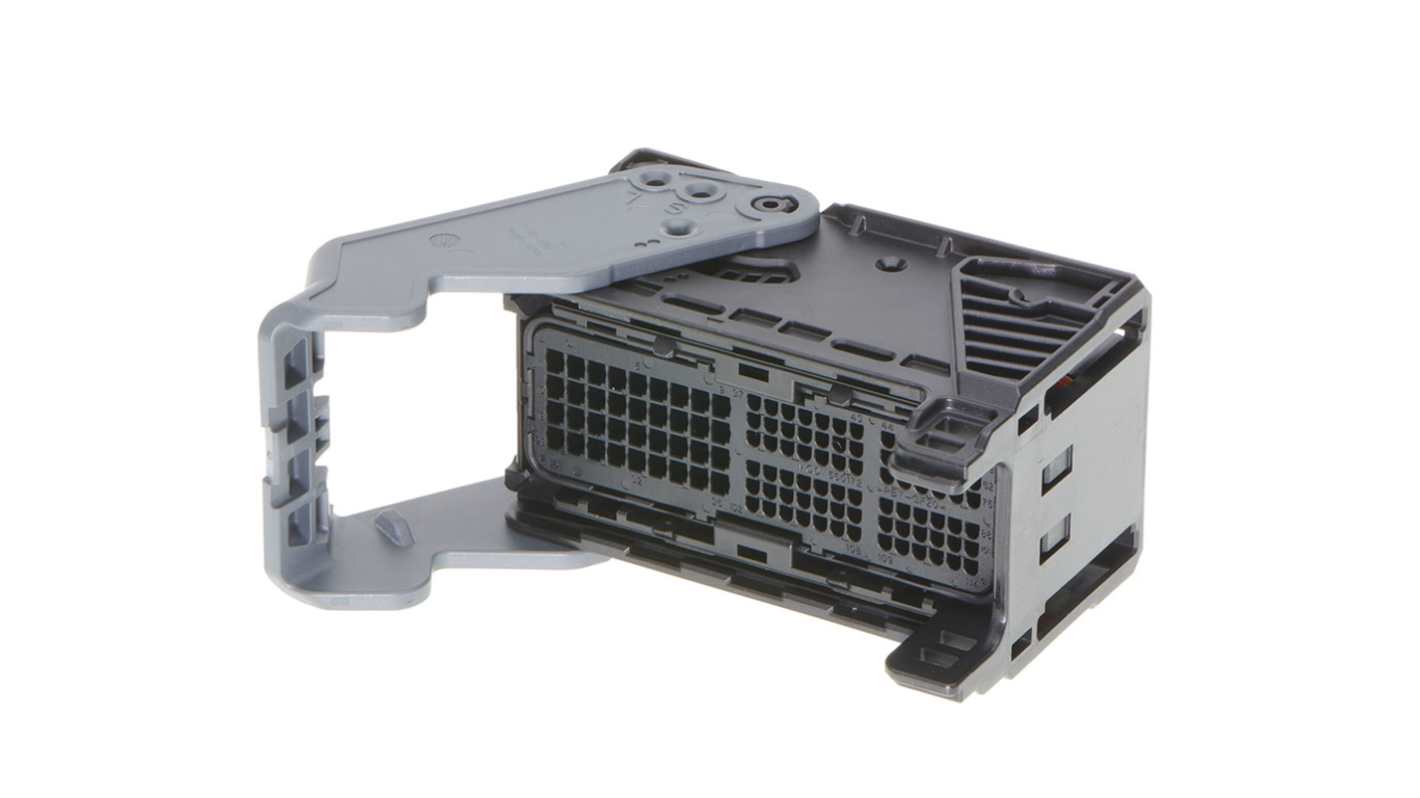

Molex 560155 Connector Housing, 114 Contacts
- RS Stock No.:
- 309-059
- Mfr. Part No.:
- 5601551402
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£29.81
(exc. VAT)
£35.77
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £29.81 |
| 10 + | £27.42 |
*price indicative
- RS Stock No.:
- 309-059
- Mfr. Part No.:
- 5601551402
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Type | Connector Housings | |
| Series | 560155 | |
| Number of Contacts | 114 | |
Select all | ||
|---|---|---|
Brand Molex | ||
Type Connector Housings | ||
Series 560155 | ||
Number of Contacts 114 | ||
- COO (Country of Origin):
- CN
The Molex Compactus CTX-J sealed connector featuring 114 circuits, with a combination of 78 x 0.50mm and 36 x 1.00mm terminals. It offers a 0.50mm side wire output for secure and reliable connections. Designed for high performance applications requiring durability and protection against environmental factors.
EU RoHS and REACH SVHC compliance
Low Halogen
IEC-62474 standard
IPC 1752A Class C Standard
IPC 1752A Class D Standard
Low Halogen
IEC-62474 standard
IPC 1752A Class C Standard
IPC 1752A Class D Standard
