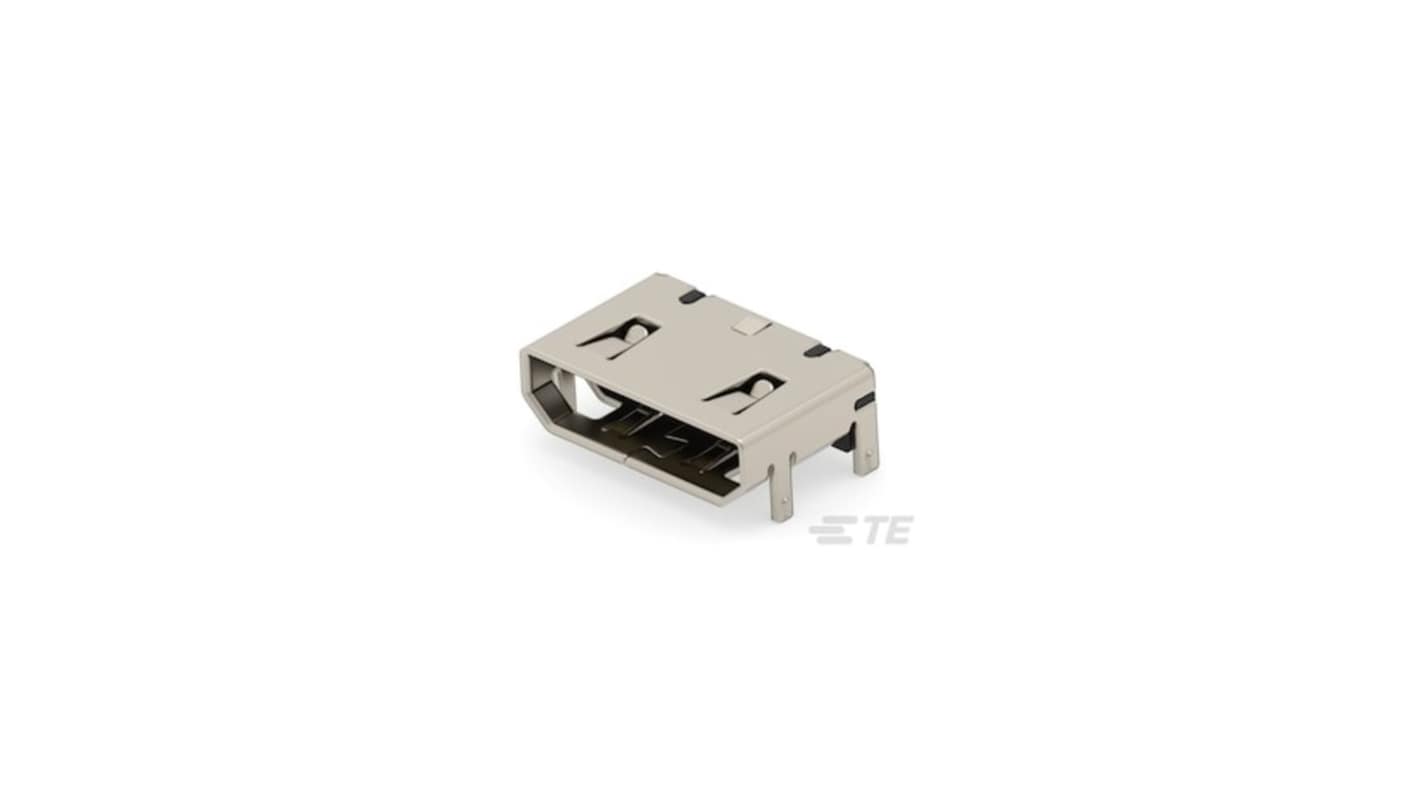

TE Connectivity HDMI Connector 40 V AC
- RS Stock No.:
- 428-560
- Mfr. Part No.:
- 2494824-1
- Brand:
- TE Connectivity
Save 17% when you buy 25 units
Subtotal (1 tape of 2 units)*
£5.45
(exc. VAT)
£6.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tape(s) | Per Tape | Per unit* |
|---|---|---|
| 1 - 9 | £5.45 | £2.725 |
| 10 - 24 | £5.02 | £2.51 |
| 25 + | £4.52 | £2.26 |
*price indicative
- RS Stock No.:
- 428-560
- Mfr. Part No.:
- 2494824-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold/Nickel | |
| Body Orientation | Straight | |
| Current Rating | 500mA | |
| Voltage Rating | 40 V AC | |
| Colour | Off White | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -25°C | |
| Series Number | 1 | |
| Series | 2494 | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold/Nickel | ||
Body Orientation Straight | ||
Current Rating 500mA | ||
Voltage Rating 40 V AC | ||
Colour Off White | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -25°C | ||
Series Number 1 | ||
Series 2494 | ||
- COO (Country of Origin):
- CN
The TE Connectivity selection of type C mini high-definition multimedia interface (HDMI) connectors provide the benefits of HDMI technology in a smaller package. These connectors have 60% less surface area than standard HDMI connectors, making them well suited for use in compact devices. The Alco switch TLS limit switch from features a single pole single throw configuration with a single extended actuator and includes one normally open and one normally closed contact for reliable operation. The type C mini HDMI connector offers the benefits of HDMI technology in a compact design with 60% less surface area than standard HDMI connectors, making it ideal for space-constrained applications. HDMI technology enables seamless connectivity for consumer electronics, including digital televisions, set-top boxes, and multimedia players, supporting standard, enhanced, and high-definition video along with multi-channel audio through a single cable.
60% reduced surface area compared to standard HDMI
Dimensions 10.42 mm x 2.42 mm
19-pin configuration with a different pin assignment from standard and micro HDMI
Current rating 0.5 Amps
Insulation resistance 100M Ω minimum
Contact voltage rating 40 VAC
Temperature rating -25°C to +70°C
Case material thermoplastic
Actuator material POM
Actuator force 20 g
Actuator profile extended
Dimensions 10.42 mm x 2.42 mm
19-pin configuration with a different pin assignment from standard and micro HDMI
Current rating 0.5 Amps
Insulation resistance 100M Ω minimum
Contact voltage rating 40 VAC
Temperature rating -25°C to +70°C
Case material thermoplastic
Actuator material POM
Actuator force 20 g
Actuator profile extended
Target Applications
Digital cameras and camcorders
Satellite navigation systems
Laptop computers
Single-board systems
Mobile phones
Action cameras
Compact devices
Satellite navigation systems
Laptop computers
Single-board systems
Mobile phones
Action cameras
Compact devices
