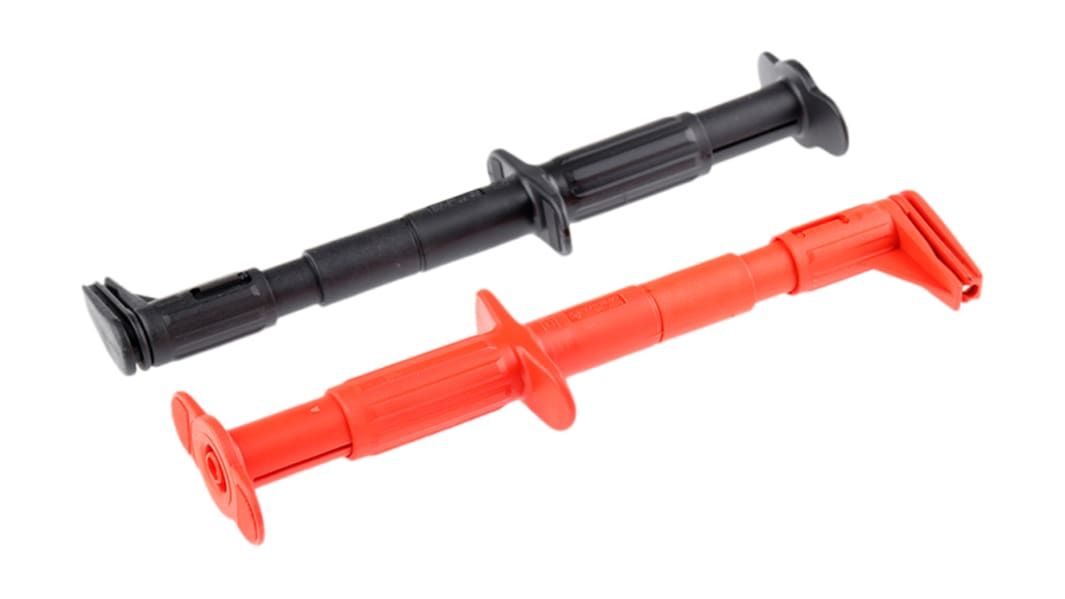

Staubli Black/Red Grabber Clip with Right Angle Jaws, 5A, 600V, 4mm Socket
- RS Stock No.:
- 518-1069
- Mfr. Part No.:
- 99.00104
- Brand:
- Staubli
Save 14% when you buy 10 units
Subtotal (1 pair)*
£27.72
(exc. VAT)
£33.26
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 60 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pair(s) | Per Pair |
|---|---|
| 1 - 4 | £27.72 |
| 5 - 9 | £25.64 |
| 10 + | £23.57 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Pair
£26.11
(exc. VAT)
£31.33
(inc. VAT)
- RS Stock No.:
- 518-1069
- Mfr. Part No.:
- 99.00104
- Brand:
- Staubli
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Staubli | |
| Product Type | Grabber Clip | |
| Tip Type | Right Angle Jaws | |
| Colour | Black/Red | |
| Current Rating | 5A | |
| Voltage Rating | 600V | |
| Probe Socket Size | 4mm | |
| Length | 152mm | |
Select all | ||
|---|---|---|
Brand Staubli | ||
Product Type Grabber Clip | ||
Tip Type Right Angle Jaws | ||
Colour Black/Red | ||
Current Rating 5A | ||
Voltage Rating 600V | ||
Probe Socket Size 4mm | ||
Length 152mm | ||
- COO (Country of Origin):
- DE
4mm Safety Flat Test Clips
Safety flat test clip set (1 red & black) for fast positive contact in voltage measurements
Suitable for bus bar applications
Adjustable stop
4 mm insulated safety socket to fit shrouded 4 mm plug/test leads
Rated 600 V, CAT III 5 A
Test connector 0 ... 30 mm
Overall length 152 mm
Suitable for bus bar applications
Adjustable stop
4 mm insulated safety socket to fit shrouded 4 mm plug/test leads
Rated 600 V, CAT III 5 A
Test connector 0 ... 30 mm
Overall length 152 mm
Warning
When testing live circuits, under no circumstances should the fuse rating exceed the rating quoted for any of the test probes.
Warning
When testing live circuits, under no circumstances should the fuse rating exceed the rating quoted for any of the test probes.
