Hammond 1591 Series Black Flame Retardant ABS Enclosure, IP54 47 mm, 152 mm, 82 mm
- RS Stock No.:
- 773-3132
- Distrelec Article No.:
- 150-19-344
- Mfr. Part No.:
- 1591XXDBK
- Brand:
- Hammond
Subtotal (1 unit)*
£8.05
(exc. VAT)
£9.66
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 12 unit(s) ready to ship
- Plus 27 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.05 |
*price indicative
- RS Stock No.:
- 773-3132
- Distrelec Article No.:
- 150-19-344
- Mfr. Part No.:
- 1591XXDBK
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Product Type | Enclosure | |
| Body Material | Flame Retardant ABS | |
| External Height | 47mm | |
| External Length | 152mm | |
| External Width | 82mm | |
| IP Rating | IP54 | |
| Lid Colour | Black | |
| Colour | Black | |
| Flanged | No | |
| Shielding | Unshielded | |
| Hazardous Area Certification | No | |
| Series | 1591 | |
| Internal Mount Type | PCB | |
| Weight | 126g | |
| Standards/Approvals | RoHS | |
| Transparent Door | No | |
| Explosion Proof | No | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Product Type Enclosure | ||
Body Material Flame Retardant ABS | ||
External Height 47mm | ||
External Length 152mm | ||
External Width 82mm | ||
IP Rating IP54 | ||
Lid Colour Black | ||
Colour Black | ||
Flanged No | ||
Shielding Unshielded | ||
Hazardous Area Certification No | ||
Series 1591 | ||
Internal Mount Type PCB | ||
Weight 126g | ||
Standards/Approvals RoHS | ||
Transparent Door No | ||
Explosion Proof No | ||

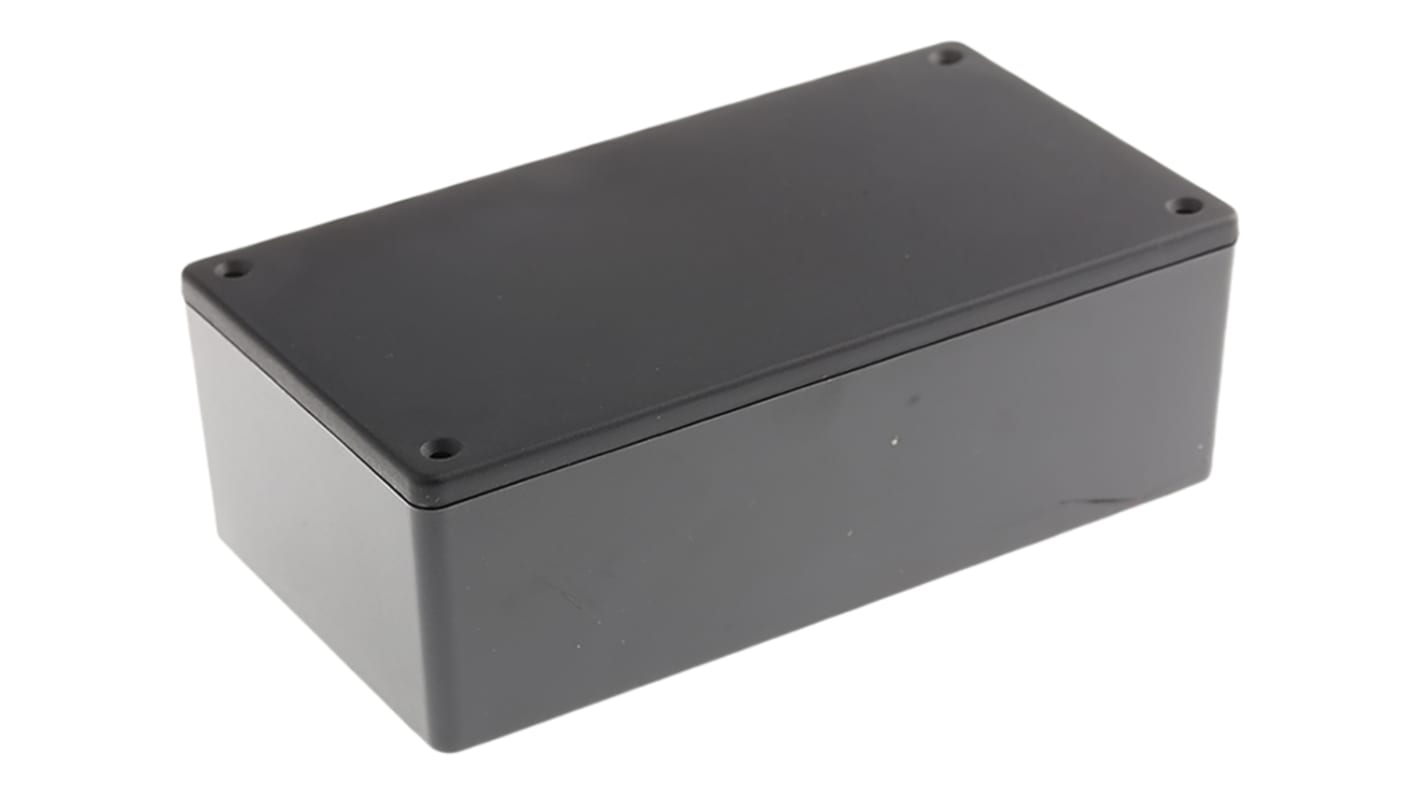

Hammond Enclosure, 152 (L) x 82 (W) x 47mm (H), No Knockouts, Black - 1591 Series - 1591XXDBK
When the going gets tough, safeguard your electronics with this enclosure from Hammond. Thanks to its durable lap-joint design, it's rated IP54, which means it resists dust and water sprays from every direction. The body's made from tough ABS so it withstands corrosion, impacts and abrasion. This unit has space-efficient dimensions of 152 (L) x 82 (W) x 47mm (H) to fit neatly into your infrastructure. Moulded-in PC board standoffs mean you're never wide of the mark when installing your components.
Features & Benefits
• Supplied with four M3x10mm Phillips screws so it's quick and easy to set up
• Internal screw posts have brass bushings so you can remove and replace the lid frequently without damaging the threads
• Low weight of 126g means it adds minimal strain to your setup
• Discreet black colour for unobtrusive installation
Applications
• IT networks
• Automated assembly lines
• Aerospace engineering
Does this product have any fire safety features?
Yes. It's made from flame-retardant ABS material that self-extinguishes in less than 10 seconds, so it won't contribute to a workplace fire.
Approvals
Material Flamability Rating: UL94-V0
