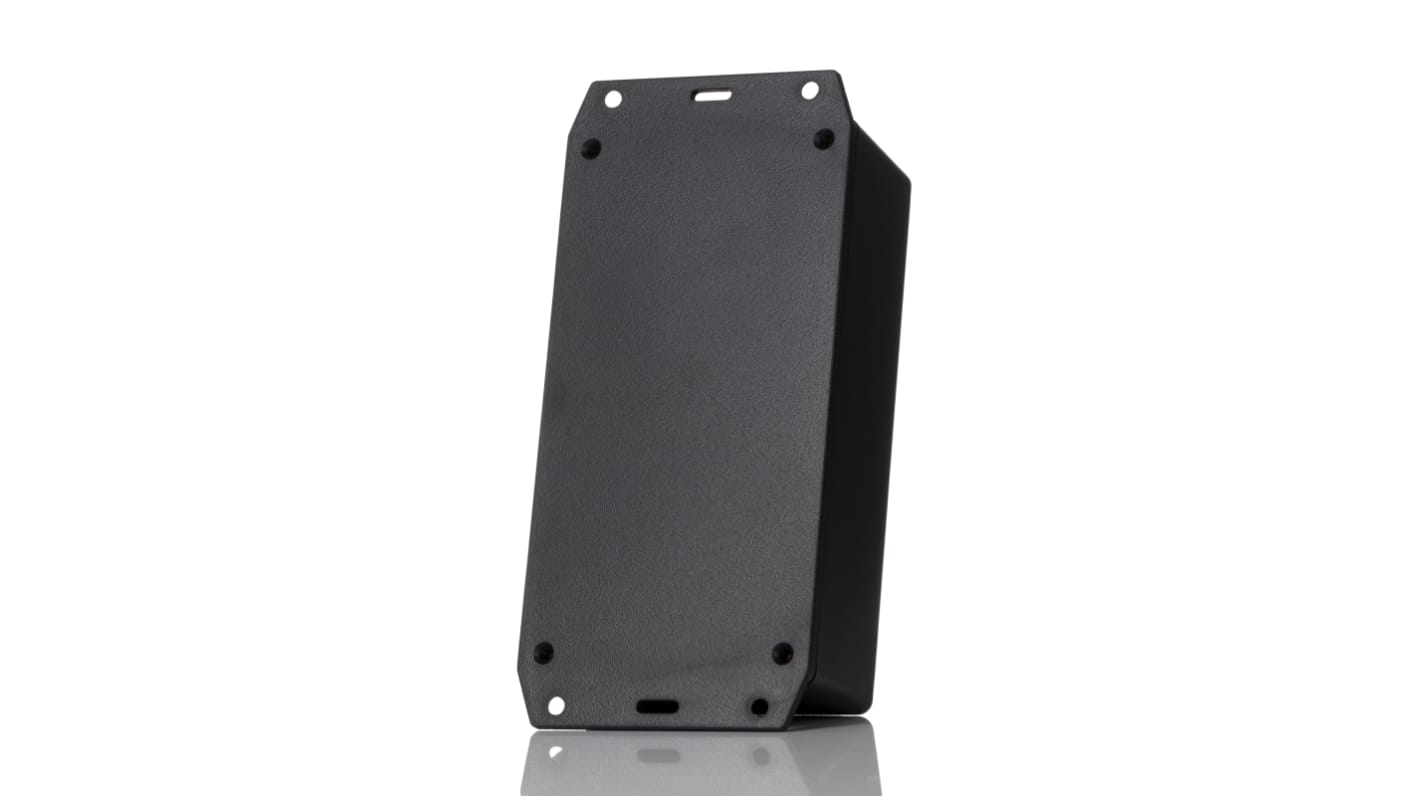

Hammond 1591 Series Black Flame Retardant ABS Enclosure, IP54, Flanged, Black Lid, 152 x 81 x 46mm
- RS Stock No.:
- 773-3154
- Distrelec Article No.:
- 150-19-260
- Mfr. Part No.:
- 1591XXDFLBK
- Brand:
- Hammond
Subtotal (1 unit)*
£8.05
(exc. VAT)
£9.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 41 unit(s) ready to ship
- Plus 42 unit(s) ready to ship from another location
- Plus 999,999,958 unit(s) shipping from 03 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.05 |
*price indicative
- RS Stock No.:
- 773-3154
- Distrelec Article No.:
- 150-19-260
- Mfr. Part No.:
- 1591XXDFLBK
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Body Material | Flame Retardant ABS | |
| External Length | 152 mm | |
| External Height | 46 mm | |
| External Width | 81 mm | |
| External Dimensions | 152 x 81 x 46mm | |
| Range | 1591 | |
| IP Rating | IP54 | |
| Colour | Black | |
| Lid Colour | Black | |
| Flanged | Yes | |
| Shielded | No | |
| Series | 1591 | |
| Number Of Knockouts | 0 | |
| Transparent Door | No | |
| Weight | 134g | |
| Explosion Proof | No | |
| RAL Code | RAL 9005 | |
Select all | ||
|---|---|---|
Brand Hammond | ||
Body Material Flame Retardant ABS | ||
External Length 152 mm | ||
External Height 46 mm | ||
External Width 81 mm | ||
External Dimensions 152 x 81 x 46mm | ||
Range 1591 | ||
IP Rating IP54 | ||
Colour Black | ||
Lid Colour Black | ||
Flanged Yes | ||
Shielded No | ||
Series 1591 | ||
Number Of Knockouts 0 | ||
Transparent Door No | ||
Weight 134g | ||
Explosion Proof No | ||
RAL Code RAL 9005 | ||
- COO (Country of Origin):
- US
Hammond Enclosure, 152 (L) x 82 (W) x 47mm (H), 6.5mm Lid Height, Black - 1591 Series - 1591XXDFLBK
On the hunt for an all-round storage solution for your printed circuit boards? Get this enclosure from Hammond. It lets you house PCBs sized up to 75 (W) x 145mm (L) in a horizontal position. Thanks to the tongue-and-groove construction, this unit has an IP54 rating, so you can be sure it rebuffs dirt and moisture to keep sensitive components safe in contaminated environments. As there are PC standoffs moulded into both the lid and the body, you have your pick of installation options, making this a versatile choice.
Features & Benefits
• Satin black finish means comfortable handling and a professional look
• Flame-retardant body self-extinguishes in 10 seconds or less to minimise the risk of fire damage
• Integral brass bushings hold their shape even with regular screwing and unscrewing to suit setups that need frequent access
• Flame-retardant body self-extinguishes in 10 seconds or less to minimise the risk of fire damage
• Integral brass bushings hold their shape even with regular screwing and unscrewing to suit setups that need frequent access
Applications
• Server rooms
• Data centres
• Telecommunications industry
• Data centres
• Telecommunications industry
Why should I choose a flanged enclosure?
Flanges with predrilled mounting holes give you a quick and easy way to secure your enclosure to a support surface like a wall or machine panel.
Approvals
Material Flamability Rating: UL94-V0
