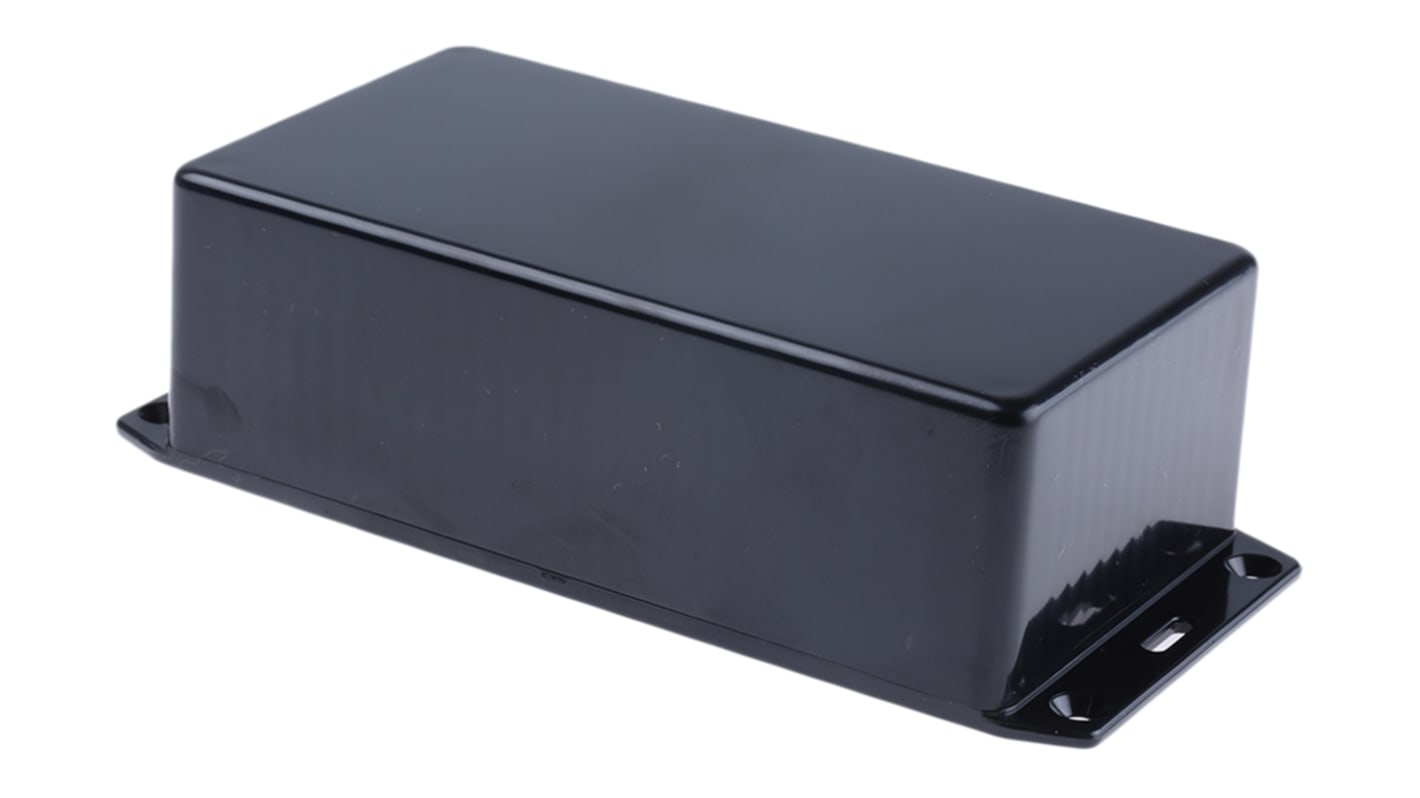

Hammond 1591 Series Black Flame Retardant ABS Enclosure, IP54 Flanged 46 mm, 150 mm, 80 mm
- RS Stock No.:
- 493-5764
- Distrelec Article No.:
- 150-19-740
- Mfr. Part No.:
- 1591DFLBK
- Brand:
- Hammond
Subtotal (1 unit)*
£8.05
(exc. VAT)
£9.66
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 25 unit(s) ready to ship
- Plus 46 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.05 |
*price indicative
- RS Stock No.:
- 493-5764
- Distrelec Article No.:
- 150-19-740
- Mfr. Part No.:
- 1591DFLBK
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Product Type | Enclosure | |
| Body Material | Flame Retardant ABS | |
| External Height | 46mm | |
| External Width | 80mm | |
| External Length | 150mm | |
| IP Rating | IP54 | |
| Lid Colour | Black | |
| Colour | Black | |
| Flanged | Yes | |
| Hazardous Area Certification | No | |
| Shielding | Unshielded | |
| Series | 1591 | |
| Weight | 134g | |
| Standards/Approvals | RoHS | |
| Transparent Door | No | |
| Explosion Proof | No | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Product Type Enclosure | ||
Body Material Flame Retardant ABS | ||
External Height 46mm | ||
External Width 80mm | ||
External Length 150mm | ||
IP Rating IP54 | ||
Lid Colour Black | ||
Colour Black | ||
Flanged Yes | ||
Hazardous Area Certification No | ||
Shielding Unshielded | ||
Series 1591 | ||
Weight 134g | ||
Standards/Approvals RoHS | ||
Transparent Door No | ||
Explosion Proof No | ||
Hammond Enclosure, 152 (L) x 82 (W) x 51mm (H), 134g Weight, Unshielded - 1591 Series - 1591DFLBK
Need a secure spot for your printed circuit boards? Trust this flame-resistant enclosure from Hammond to provide cover. It comes with internal board standoffs that give your PCBs a solid footing. Integral card guides are accurately sized to make inserting 1.5mm PC cards child's play. Once you've inserted your components, seal the casing with the included Phillips screws. You can then mount the sealed box on a wall or flat surface with the four additional screw slots in the flange.
Features & Benefits
• IP54 rating indicates it resists dust and water splashes, protecting contents in demanding indoor environments
• Self-tapping screws simplify installation
• Gloss black design adds a professional finish to your setup
Applications
• Food and beverage production
• Server rooms
• Telecommunication systems
• Data centres
Can I reopen this enclosure easily?
Yes, enclosures in this series are designed to be easily opened and closed as needed. This way, your components are protected from dust as they work but are also easy to get to when you need to repair or upgrade your setup.
Approvals
Material Flamability Rating: UL94-V0
