Hammond 1591 Series Grey Flame Retardant ABS Enclosure, IP54 Flanged 44 mm, 110 mm, 82 mm
- RS Stock No.:
- 493-6127
- Mfr. Part No.:
- 1591SGY
- Brand:
- Hammond
Subtotal (1 unit)*
£7.81
(exc. VAT)
£9.37
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 34 unit(s) shipping from 04 May 2026
- Plus 53 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.81 |
*price indicative
- RS Stock No.:
- 493-6127
- Mfr. Part No.:
- 1591SGY
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Product Type | Enclosure | |
| Body Material | Flame Retardant ABS | |
| External Height | 44mm | |
| External Length | 110mm | |
| External Width | 82mm | |
| IP Rating | IP54 | |
| Lid Colour | Grey | |
| Colour | Grey | |
| Flanged | Yes | |
| Shielding | Unshielded | |
| Hazardous Area Certification | No | |
| Series | 1591 | |
| Weight | 105g | |
| Standards/Approvals | RoHS | |
| Transparent Door | No | |
| Explosion Proof | No | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Product Type Enclosure | ||
Body Material Flame Retardant ABS | ||
External Height 44mm | ||
External Length 110mm | ||
External Width 82mm | ||
IP Rating IP54 | ||
Lid Colour Grey | ||
Colour Grey | ||
Flanged Yes | ||
Shielding Unshielded | ||
Hazardous Area Certification No | ||
Series 1591 | ||
Weight 105g | ||
Standards/Approvals RoHS | ||
Transparent Door No | ||
Explosion Proof No | ||

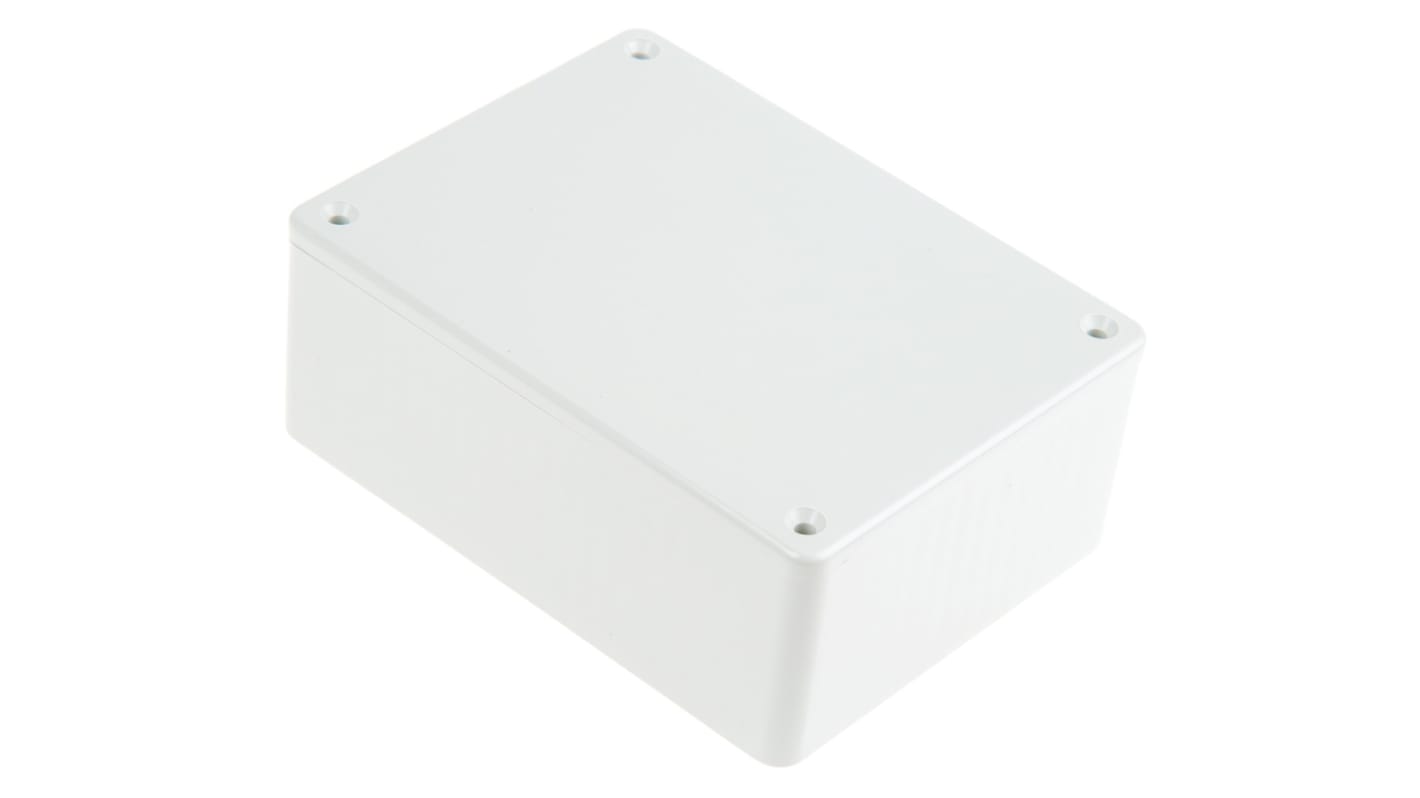

Hammond Enclosure, 110 (L) x 82 (W) x 44mm (H), Grey Colour, IP54 Rating - 1591 Series - 1591SGY
In need of a strong and sturdy all-rounder to safely store small PCBs? Choose this enclosure from Hammond. It has integrated card guides to safely store circuit boards up to 1.5mm thick vertically, without the risk of them touching one another. You can alternatively house your circuits horizontally with the help of the 1591Z-series PC card adaptors available in a set of six (570-708) or 50 (256-3433). Thanks to lap-joint construction, this unit is IP54-rated, meaning you can trust it to protect your circuitry from dust and moisture. The brass bushings won't wear down even if the lid is frequently opened and closed.
Features & Benefits
• ABS housing is flame resistant and will self-extinguish in 10 seconds to keep your PC cards safe
• Internal lid lip prevents the cover from shifting out of place while you secure it
• Light weight of 105g is easy to hold and carry around the workplace
Applications
• Storage customisation
• Manufacturing industry
• Workshop organisation
What can I do if the lid breaks?
If the lid cracks or gets lost, you can replace it with an 1591SC transparent lid accessory (256-3420).
Approvals
Material Flamability Rating: UL94-V0
